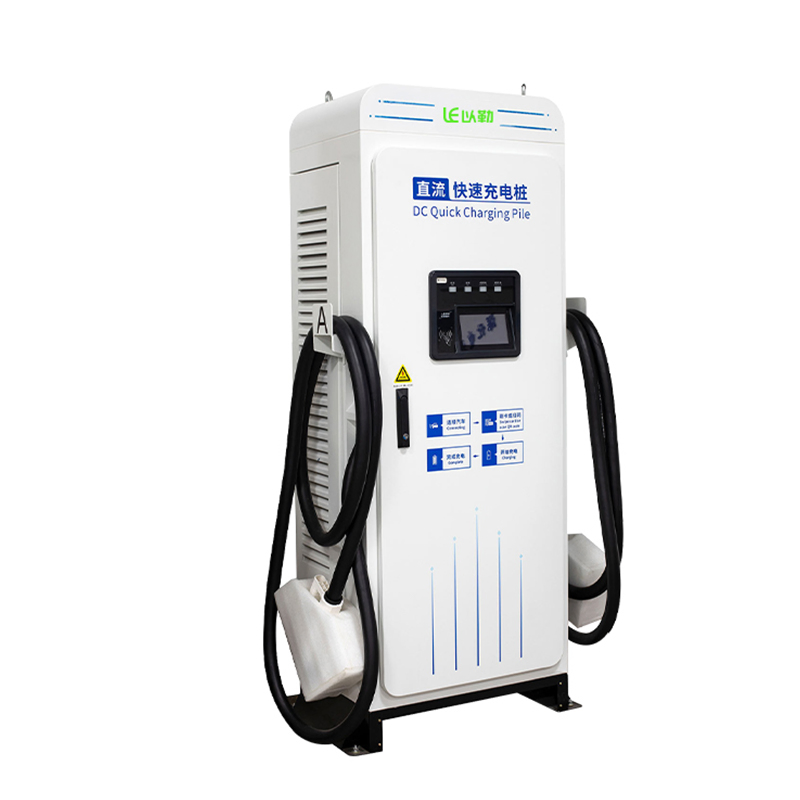

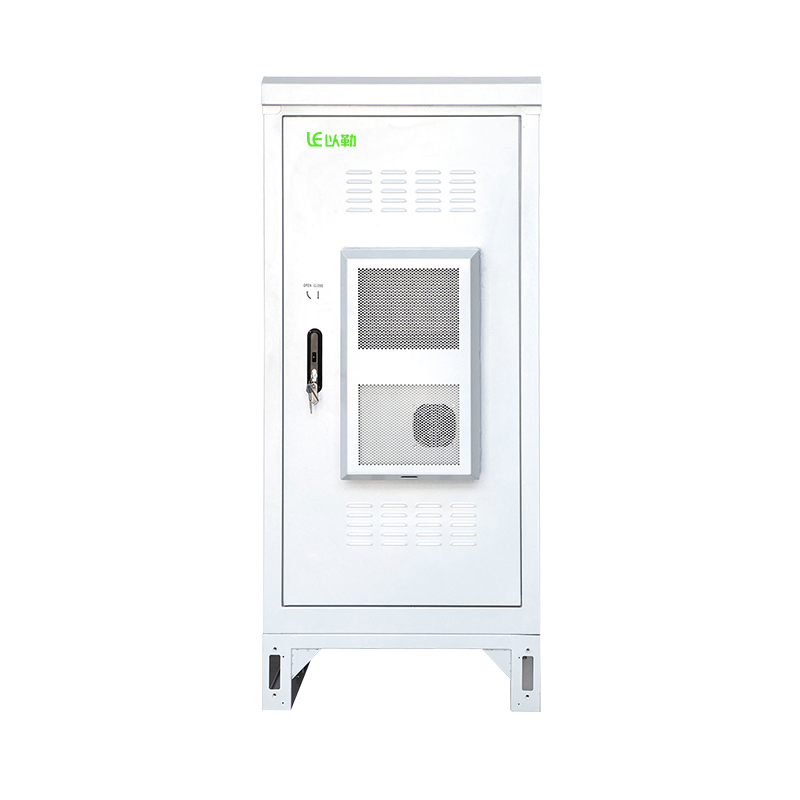

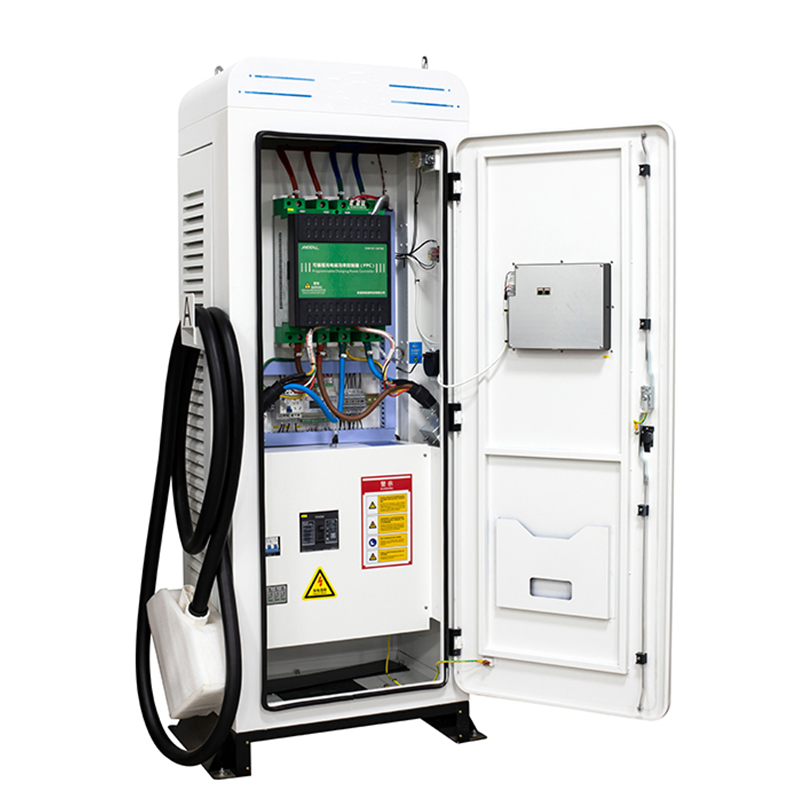

High-Power 80kw EV Charging Pile with 5m Wire Length
High-Power 80kw EV Charging Pile with 5m Wire Length
High-Power 80kw EV Charging Pile with 5m Wire Length
High-Power 80kw EV Charging Pile with 5m Wire Length
High-Power 80kw EV Charging Pile with 5m Wire Length
1 / 5
High-Power 80kw EV Charging Pile with 5m Wire Length
High-Power 80kw EV Charging Pile with 5m Wire Length
High-Power 80kw EV Charging Pile with 5m Wire Length
High-Power 80kw EV Charging Pile with 5m Wire Length
High-Power 80kw EV Charging Pile with 5m Wire Length

High-Power 80kw EV Charging Pile with 5m Wire Length

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Information

Model NO.
LE-DC-80KW
Charging Interfaces
Multiple Charges
Installation
Wall Mounted
Charge Method
Quick Charge
Dimension
720*550*1720mm
User Interface
7 Inch Highlight Display
AC Power
AC380V±20%
Rated Current
100-180A
Output Voltage
80kw
Protection Level
IP54
Certification
CCC, CE, ISO, RoHS
Warranty
12 Months

Product Description

Unleash the Power of Speed: 80kW Commercial Fast DC Charger

Engineered for excellence, this high-speed charger is crafted primarily for bustling public commercial environments. It features a modular structure with customizable power configurations, significantly reducing wait times and maximizing efficiency.

  • Adheres to ISO15118/DIN70121 charging standards.
  • All components certified with CE for quality and safety.
  • SECC controller passed rigorous TUV testing.
  • Intelligent electrical load balancing.
  • Single or Double outlet options available.
80kw EV Charging Pile

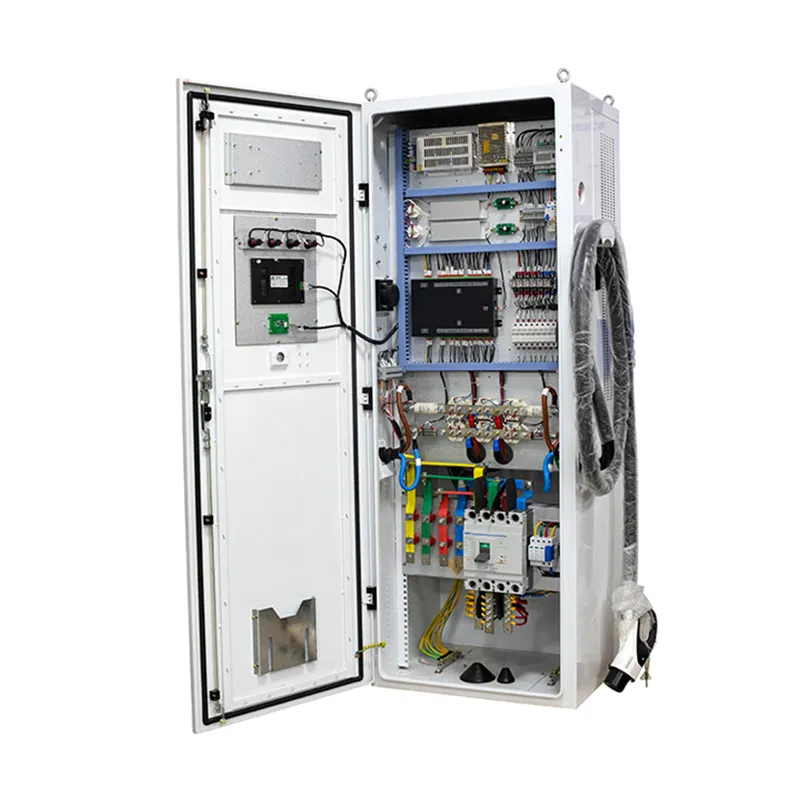

EV Charger Side View

Technical Specifications

  • Product NameIntegrated DC Charging Station
    TypeYL-DC-60KW / YL-DC-80KW
    User Interface7 inch touch screen
    Input VoltageAC380V + 20%
    Rated Current100-180A
    Networking ModeEthernet, 4G, WiFi
    Protection FunctionOvervoltage, undervoltage, overcurrent, short circuit, surge, leakage
    Executive StandardIEC 62196, SAE J1772
    Working Temperature-20°C ~ +50°C

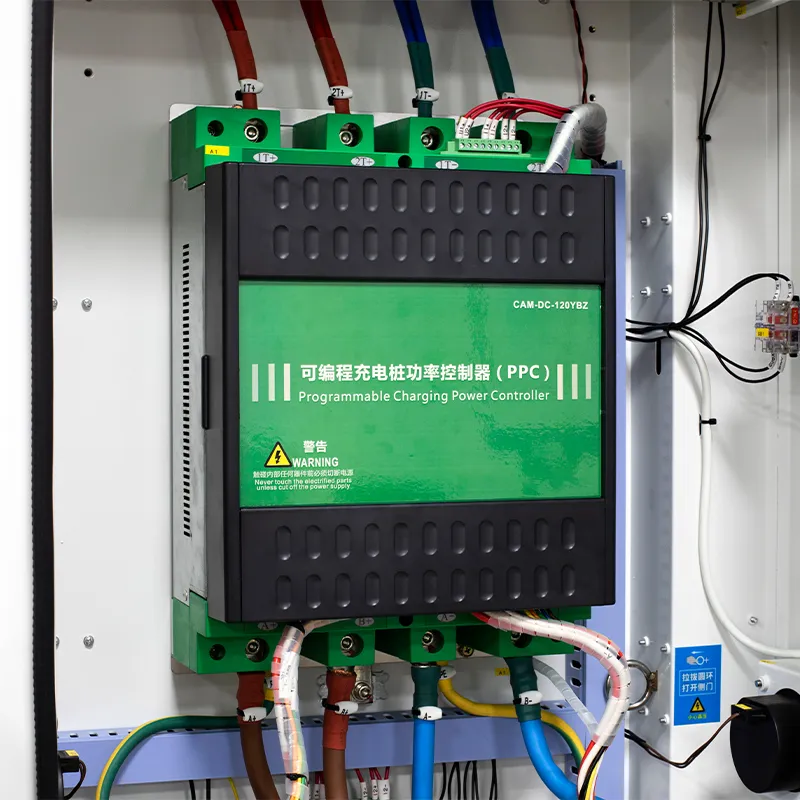

    Product Detail 1

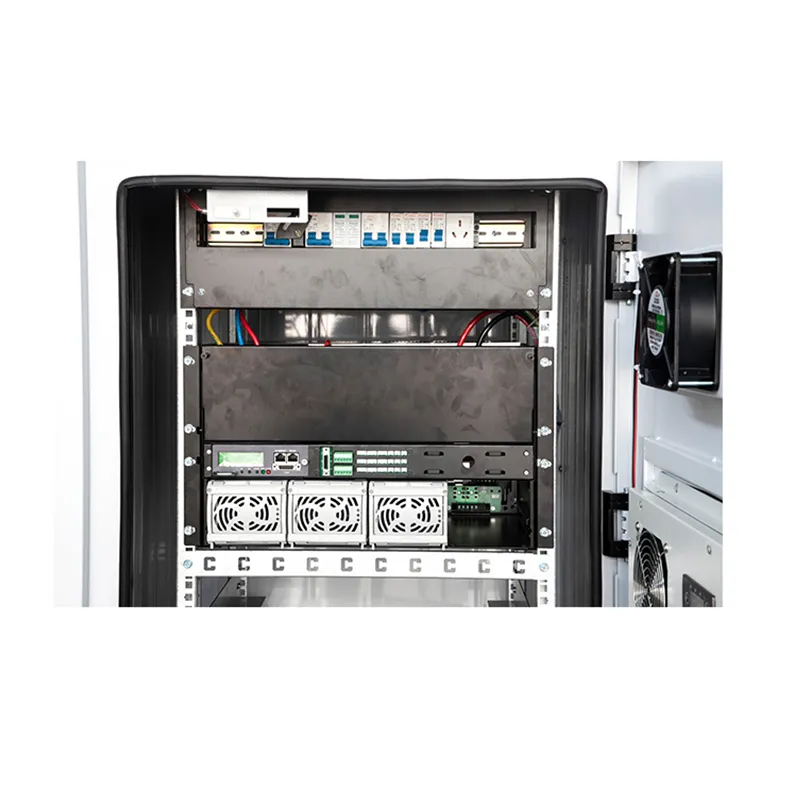

    Product Detail 2

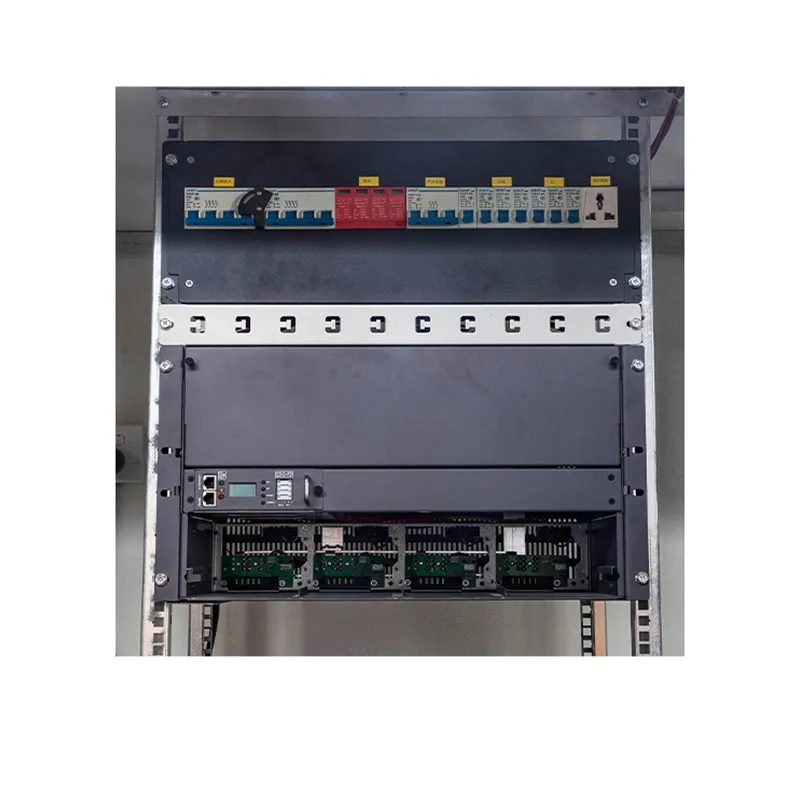

    Product Detail 3
    Product Detail 4
    Internal Structure
    Dimensions Guide
    Interface Details

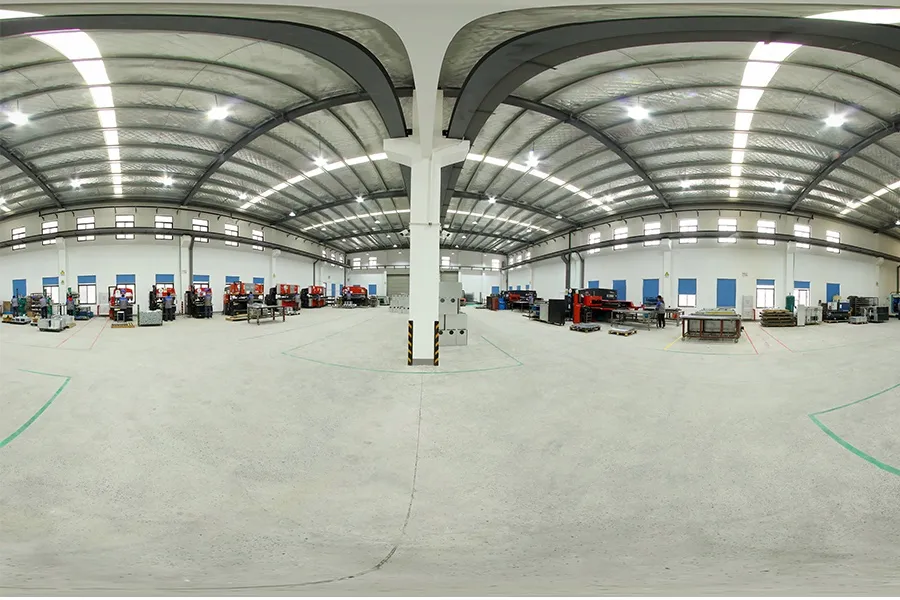

    Application Scenario 1
    Application Scenario 2

    Frequently Asked Questions

    What is the output capacity of the LE-DC-80KW?
    The station delivers a robust output of 80kW with a rated current between 100-180A, designed for rapid charging.
    Is this charging station suitable for outdoor use?
    Yes, it features an IP54 protection level and operates in temperatures ranging from -20°C to +50°C.
    What connectivity options are supported?
    The system supports Ethernet, 4G, and WiFi networking modes for remote management and monitoring.
    Which electric vehicles are compatible with this charger?
    It adheres to IEC 62196 and SAE J1772 standards, making it compatible with a wide range of modern electric vehicles.
    How do users start the charging process?
    Users can easily initiate charging through the 7-inch touch interface by swiping a card or scanning a QR code.
    What safety protections are integrated into the system?
    The unit includes comprehensive protection against overvoltage, undervoltage, overcurrent, short circuits, surges, and leakage.
