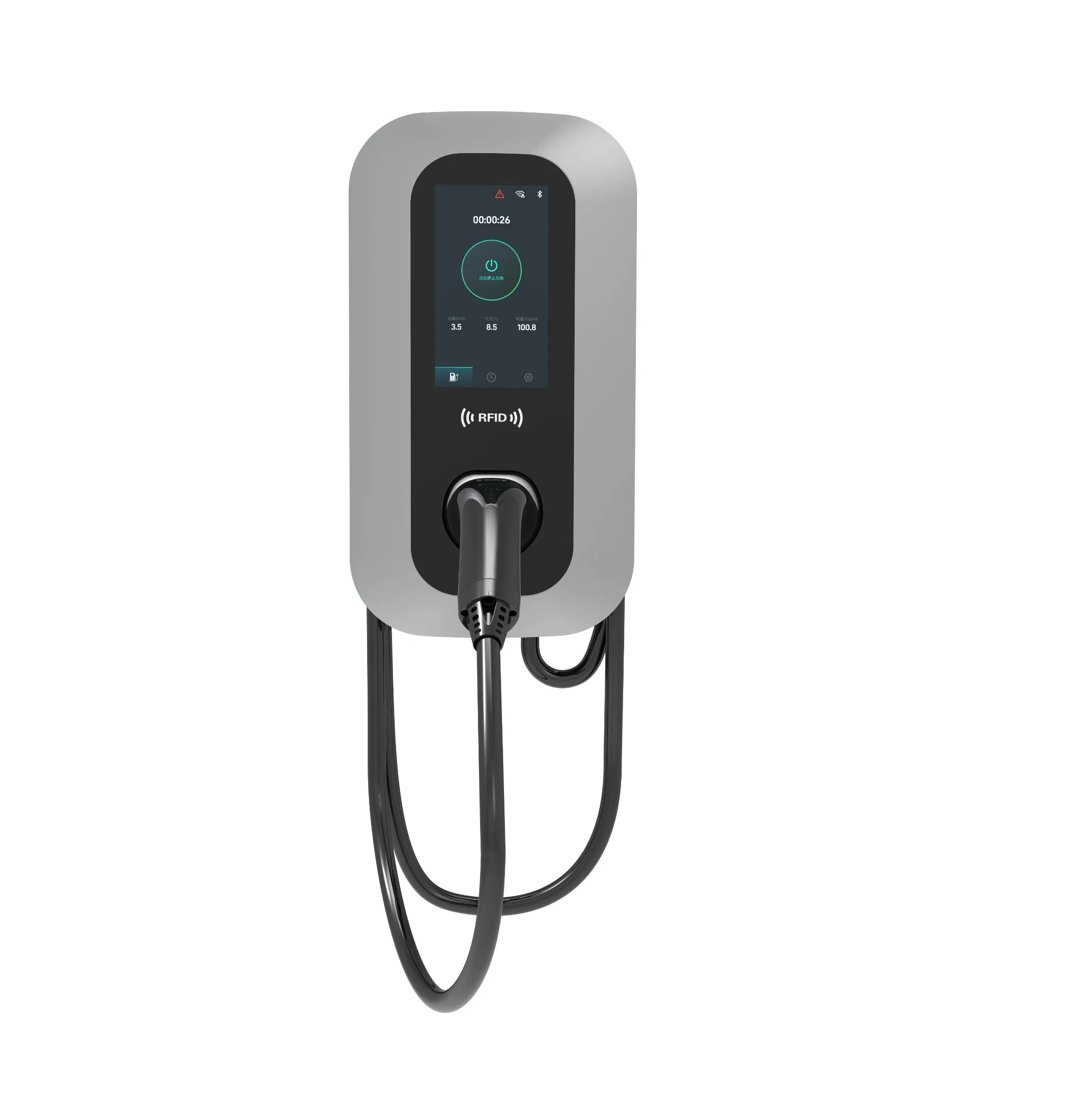

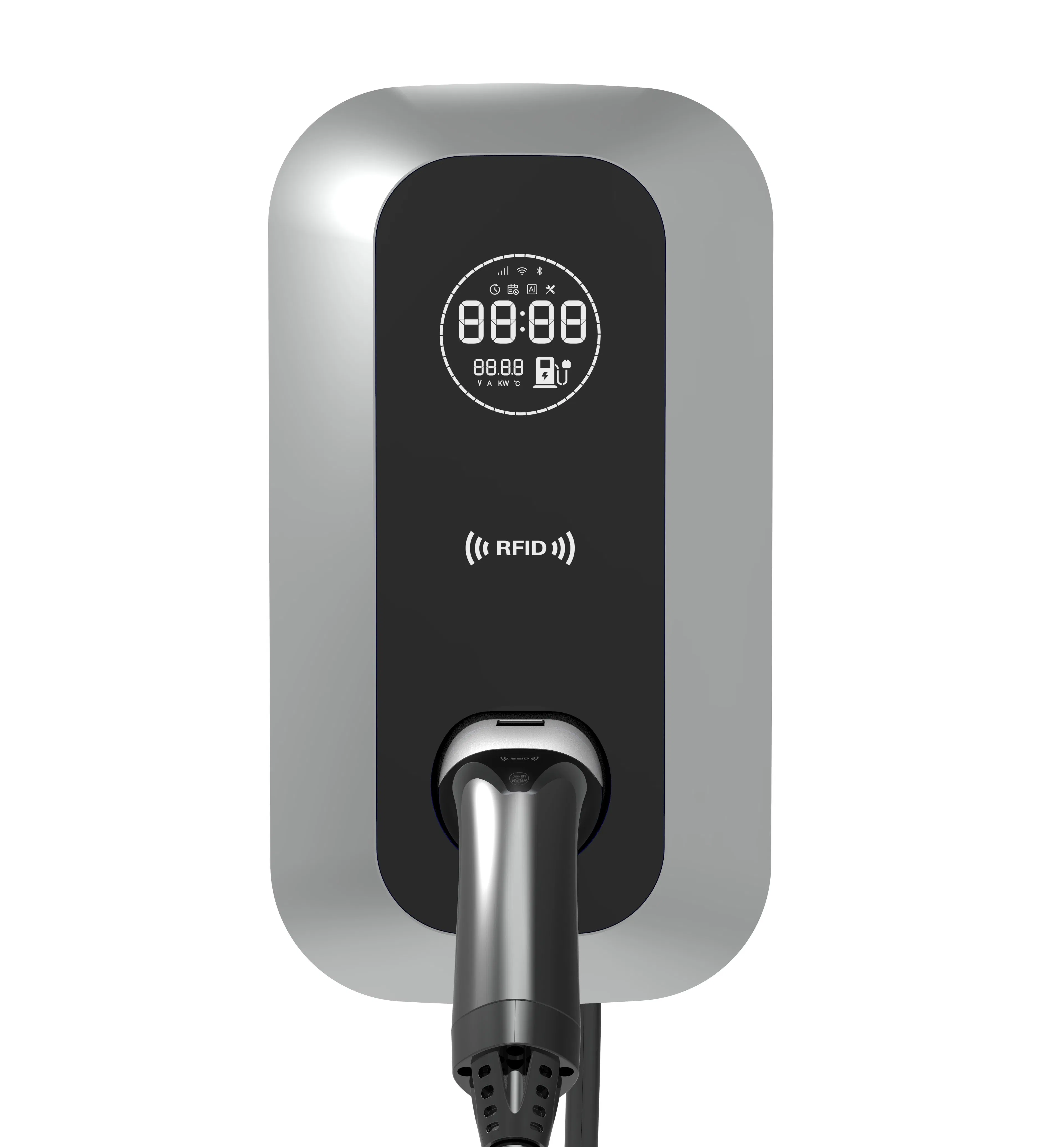

Vernon Charger
1 / 5
| Feature | Description |
|---|---|
| Bluetooth Remote Control | The device offers an optional Bluetooth remote control feature for convenient operation from a distance. |
| Emergency Stop Switch | Includes a built-in mechanical emergency stop switch for immediate power cutoff in case of emergencies. |
| Monitoring Modes | Reserved interfaces for RS485 and Ethernet communication for remote management and status monitoring. |
| Safety Protection | Equipped with ten protective mechanisms, ensuring safety and reliability during use. |
| User Friendly | Designed for easy installation, operation, and maintenance. |

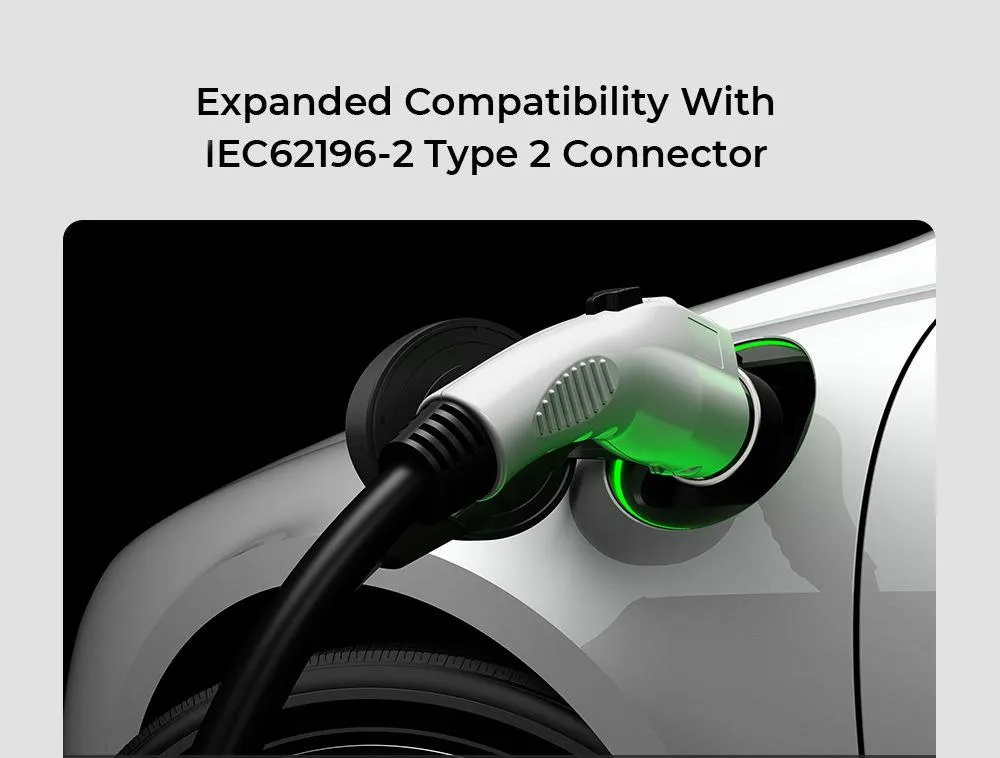

The EU version of the AMP07 is compatible with most European AC electric vehicles because of the IEC62196-2 Type 2, eliminating brand barriers for owners.

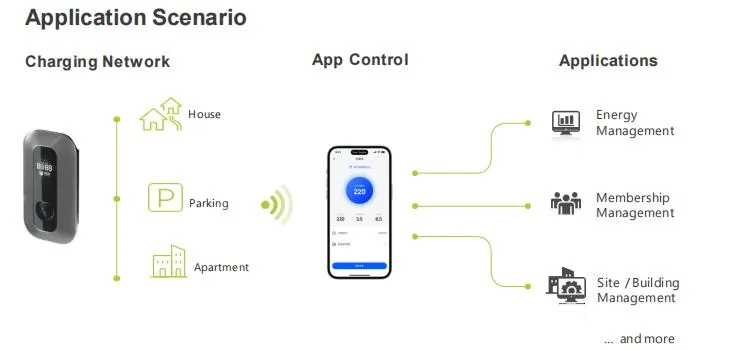

AMP07 allows your vehicles to be charged during off-peak periods by setting charging times, saving money on electricity bills. You can also check the charging status on your mobile phone and make an appointment for charging. Charging current and charging delay configuration makes charging adjustable for various situations.
| System Specifications | |
|---|---|
| Model | AMP07-C |
| Dimension | 222 x 104 x 405mm |
| Net Weight | 3.62 kgs |
| Protection | IP65 / IK10 |

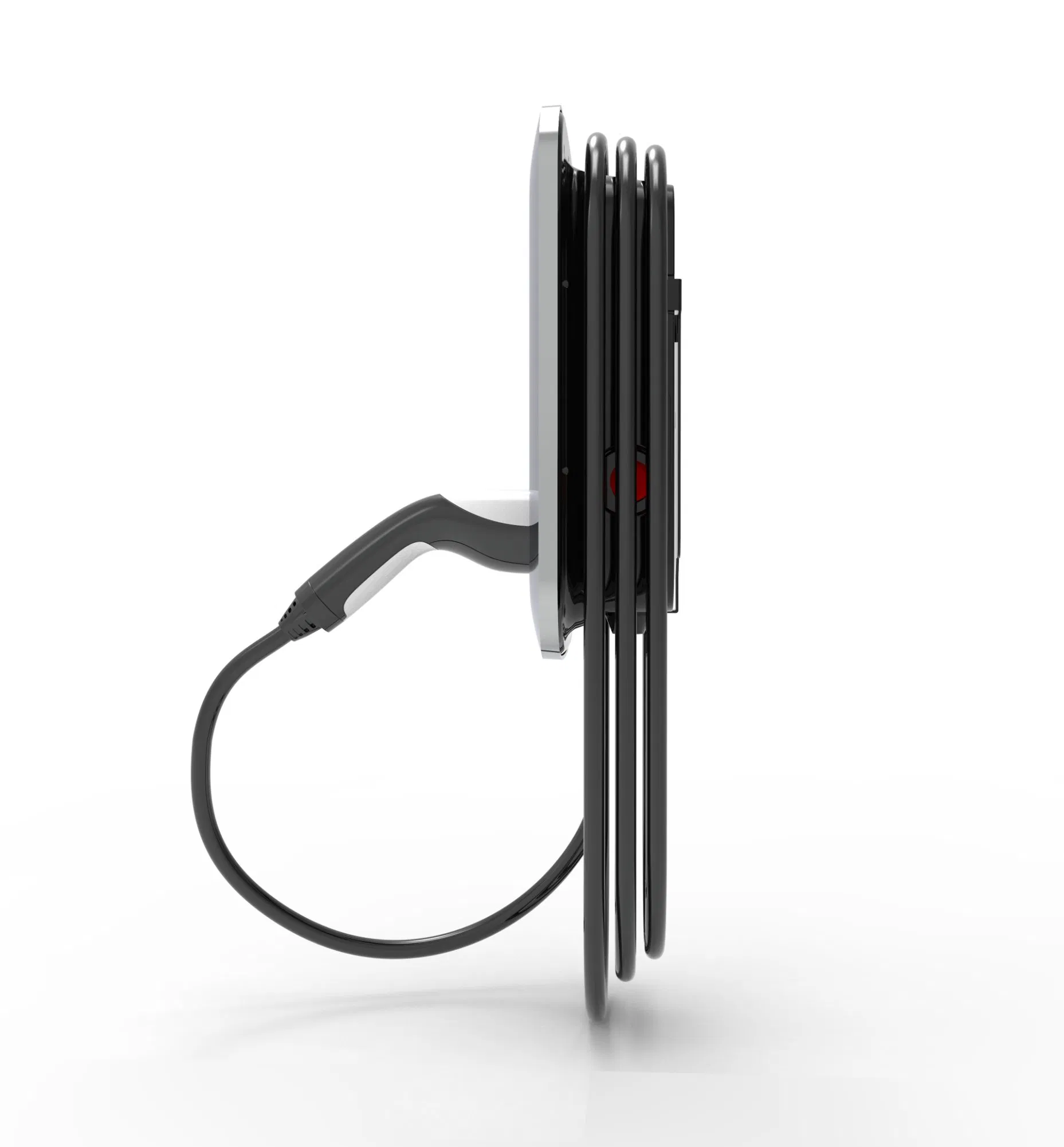

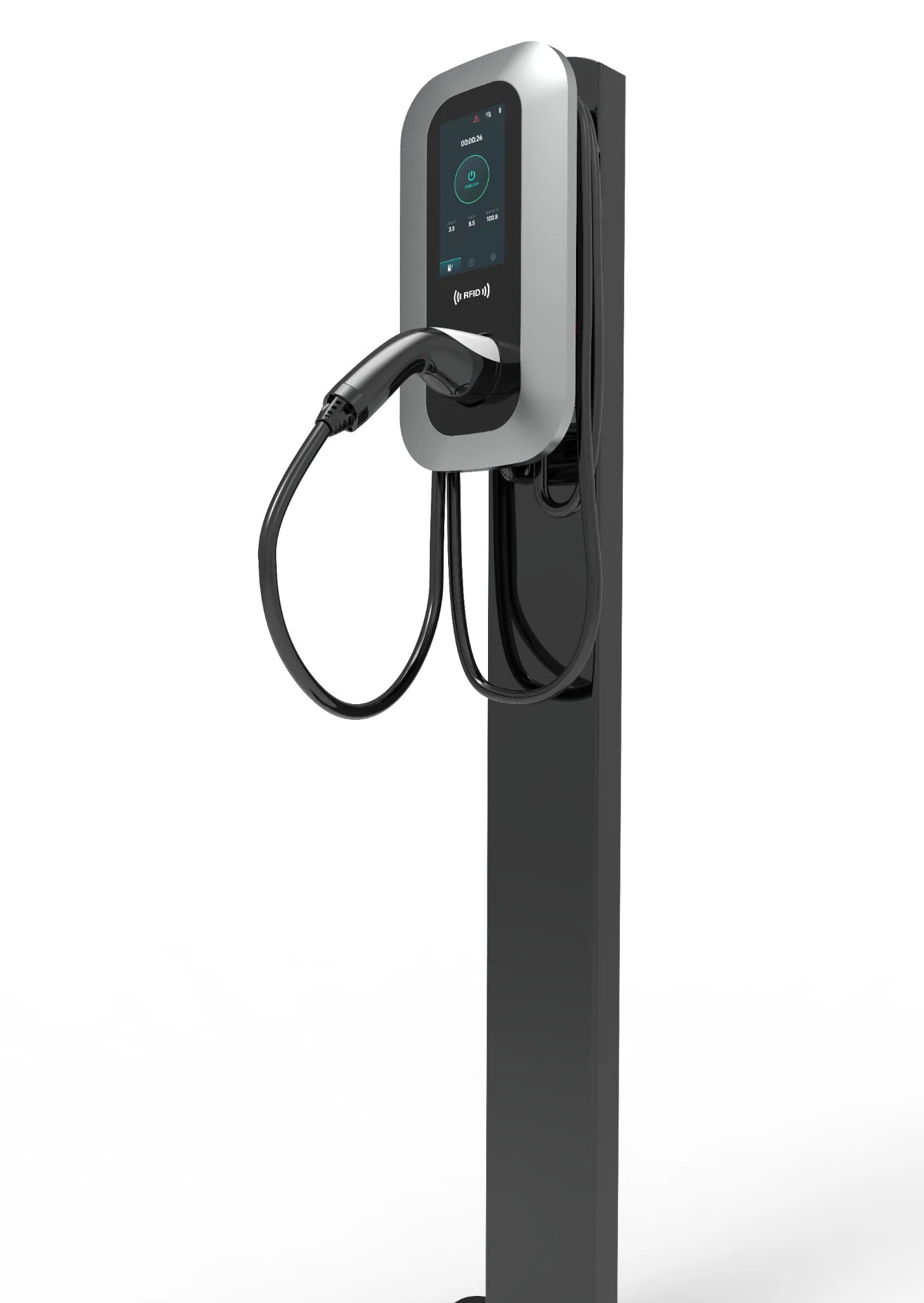

| Installation | Wall mounting / Pedestal mounting |
| Input & Output | |
| Input Voltage | 200Vac - 240Vac, 50/60Hz |
| Output Power | 7kW max |
| Output Current | 32A max |

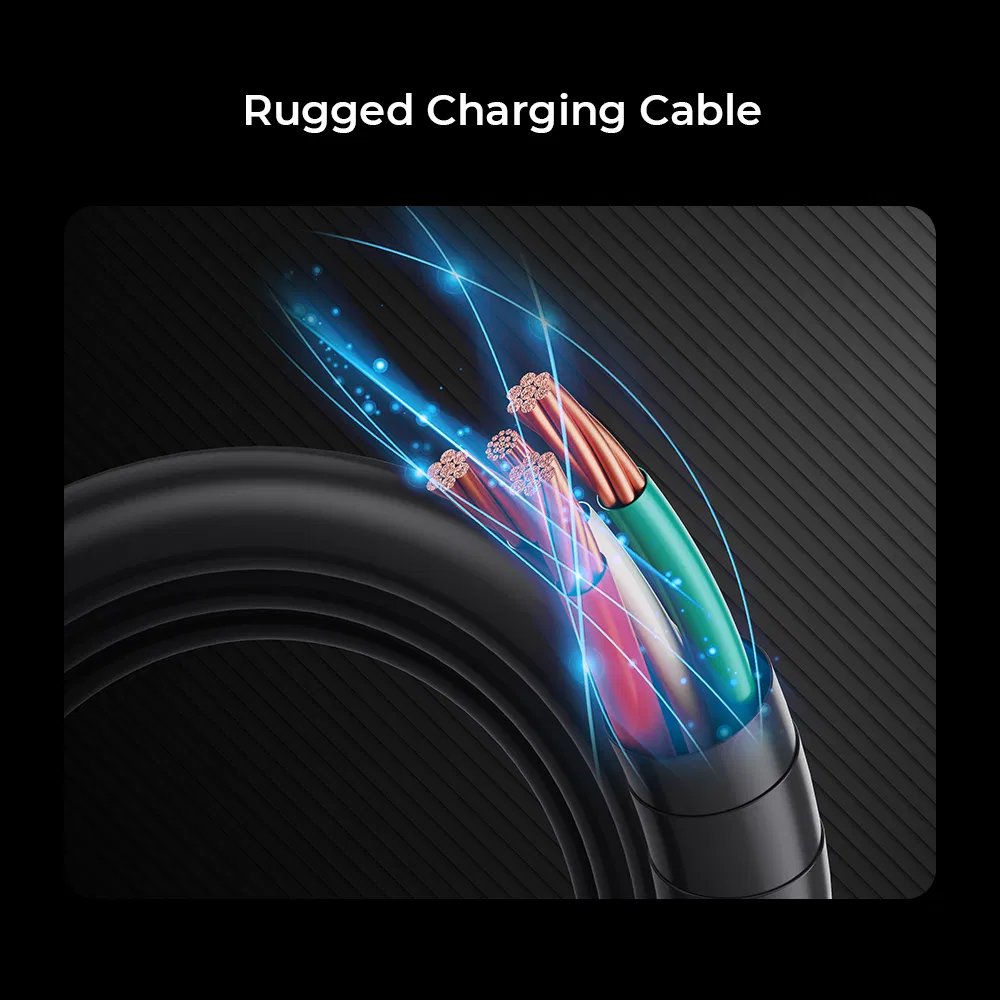

| Outlet Type | IEC 62196 Type-2 (5m Cable) |
| Interface & Environment | |
| User Authentication | App interface |
| Display | LCD or 7 inch TFT display |
| Network | Wi-Fi, Bluetooth, 4G(optional) |
| Working Temp | -25°C to +50°C |
