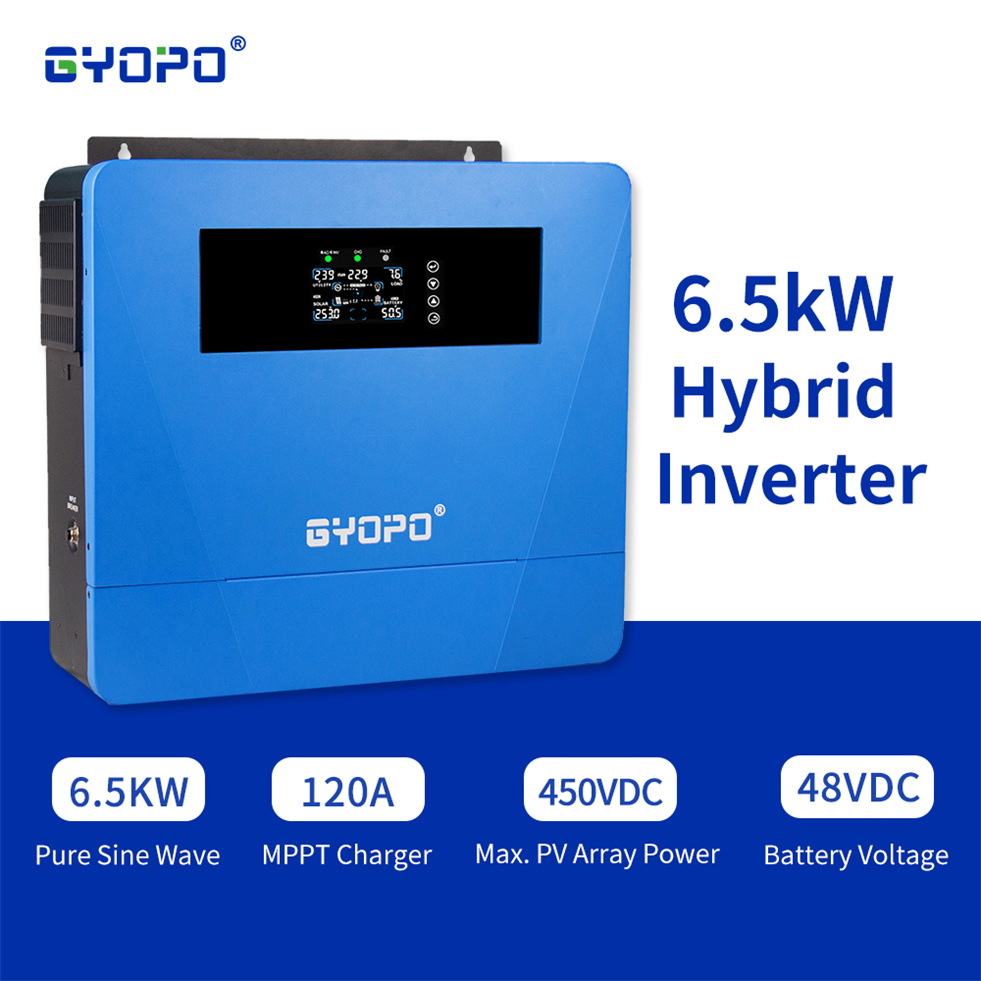

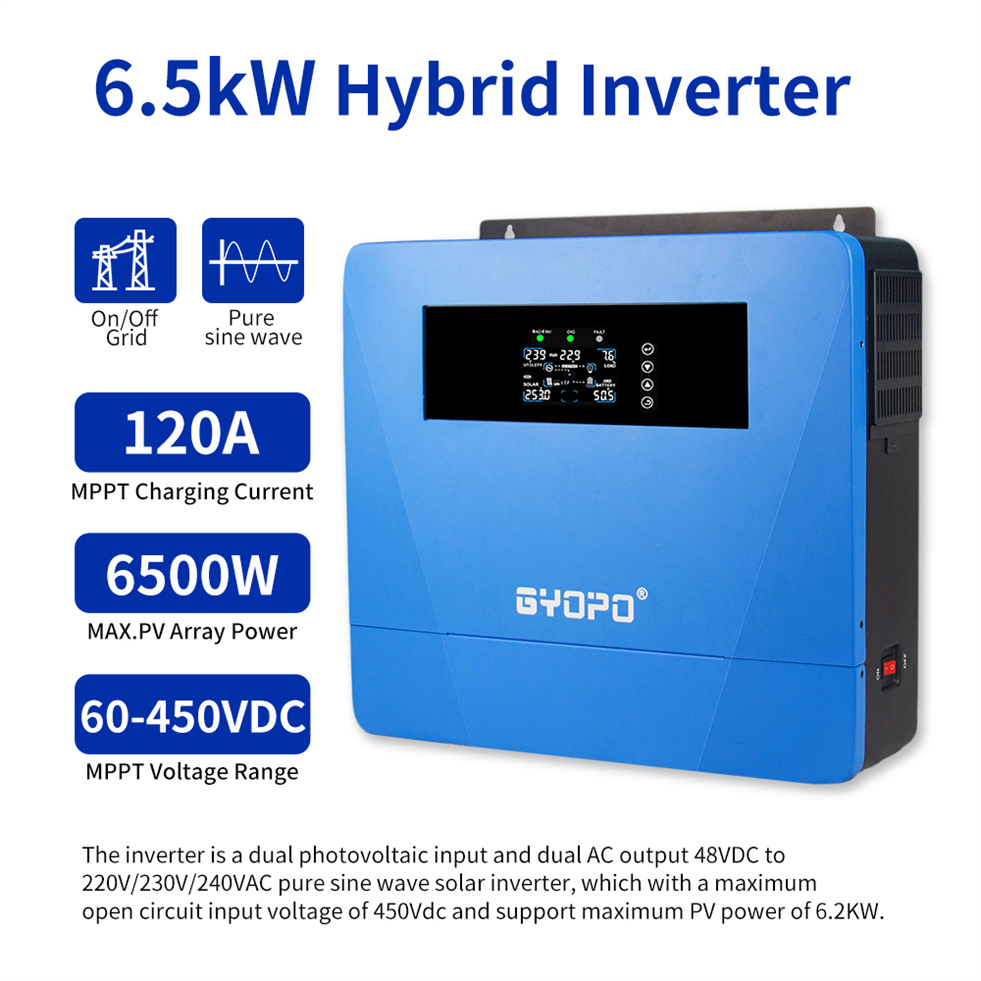

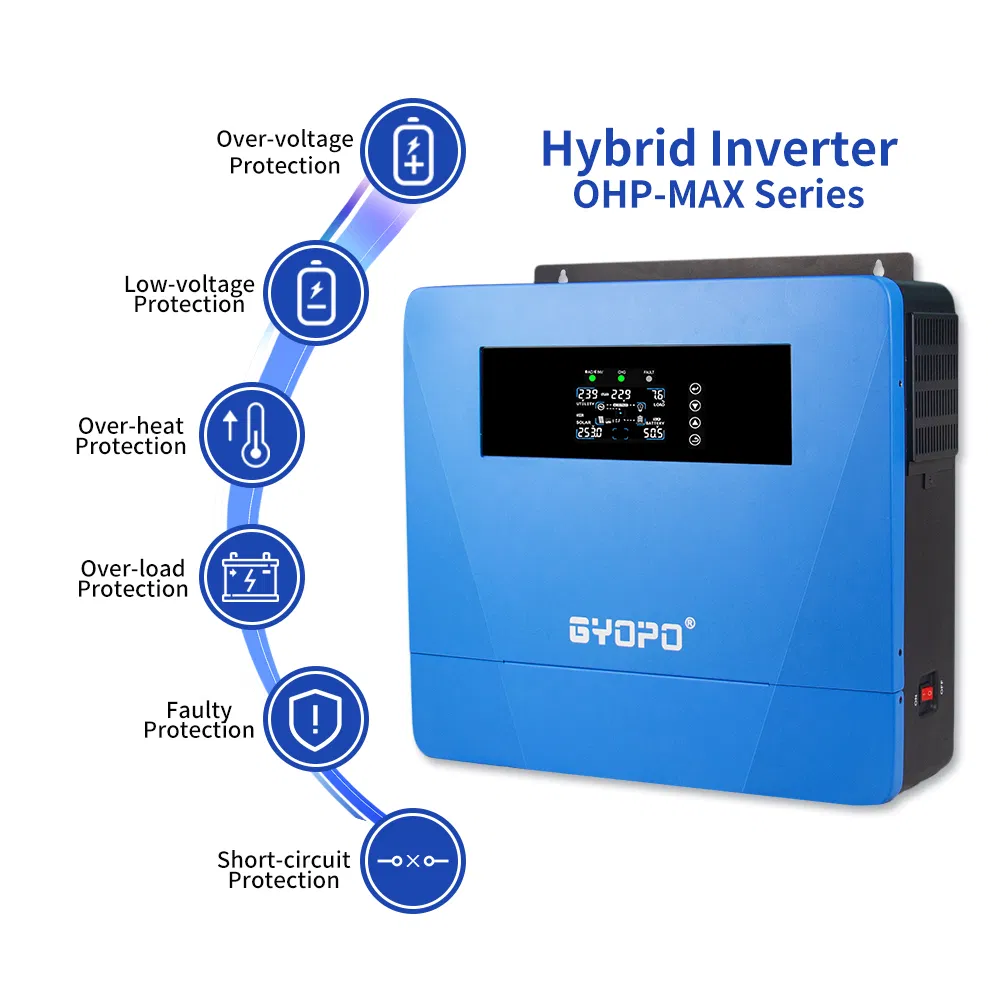

| Model | OHP-MAX-6.5KW |
| Rated Power | 6500W |
| System DC Voltage | 48Vdc |
| PV Specification | |
| Max. Power | 3100W*2 (4000W Single-Tracker) |
| Max. PV Array Open Circuit Voltage | 500Vdc |
| PV MPPT Voltage Range | 85Vdc ~ 450Vdc |
| Number of MPPT Trackers | 2 |
| Max. DC Input Current | 16Amp*2 |
| AC Input Specification | |
| Nominal Input Voltage | 230Vac |
| Max. AC Input Current | 28Amp |
| Input Frequency | 50Hz / 60Hz (Auto detection) |
| Battery Mode Specification | |
| Waveform | Pure Sine Wave |
| Peak Efficiency | 93% |
| Transfer Time | 10ms typical / 20ms MAX |
| Packaging Info | |
| Package Size | 58.00cm * 50.00cm * 22.00cm |
| Gross Weight | 14.000kg |

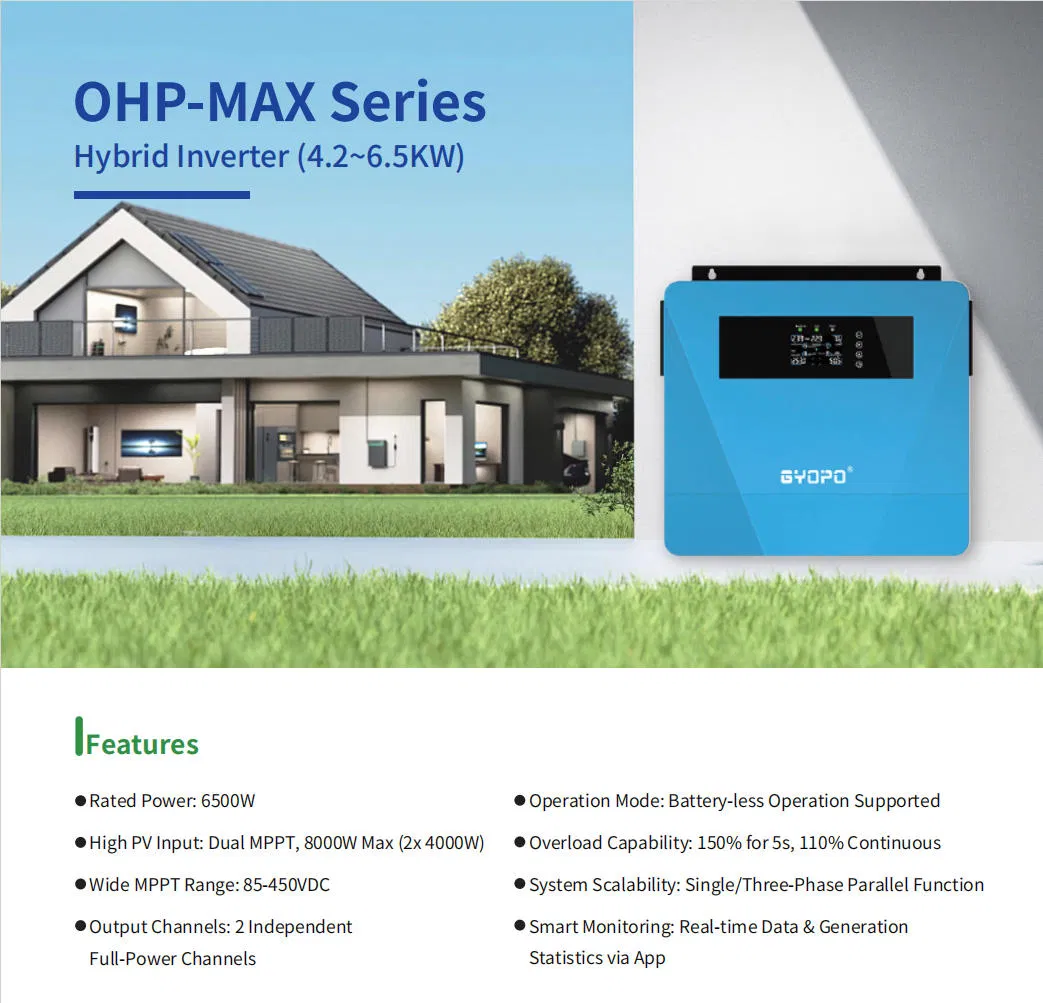

Two independent trackers (3.1kW each) maximize solar harvest from different roof orientations.
Reduces initial system cost; enables PV-to-AC operation directly when solar is sufficient.
Operates between 85–450V for flexible panel stringing and better performance in low light.
Compatible with Li-ion & lead-acid. 100A max solar charging with BMS communications.
Up to 6 units single-phase or 2 groups three-phase for total system expansion.
Available for ISO and Android with live data and generation statistics for remote management.
