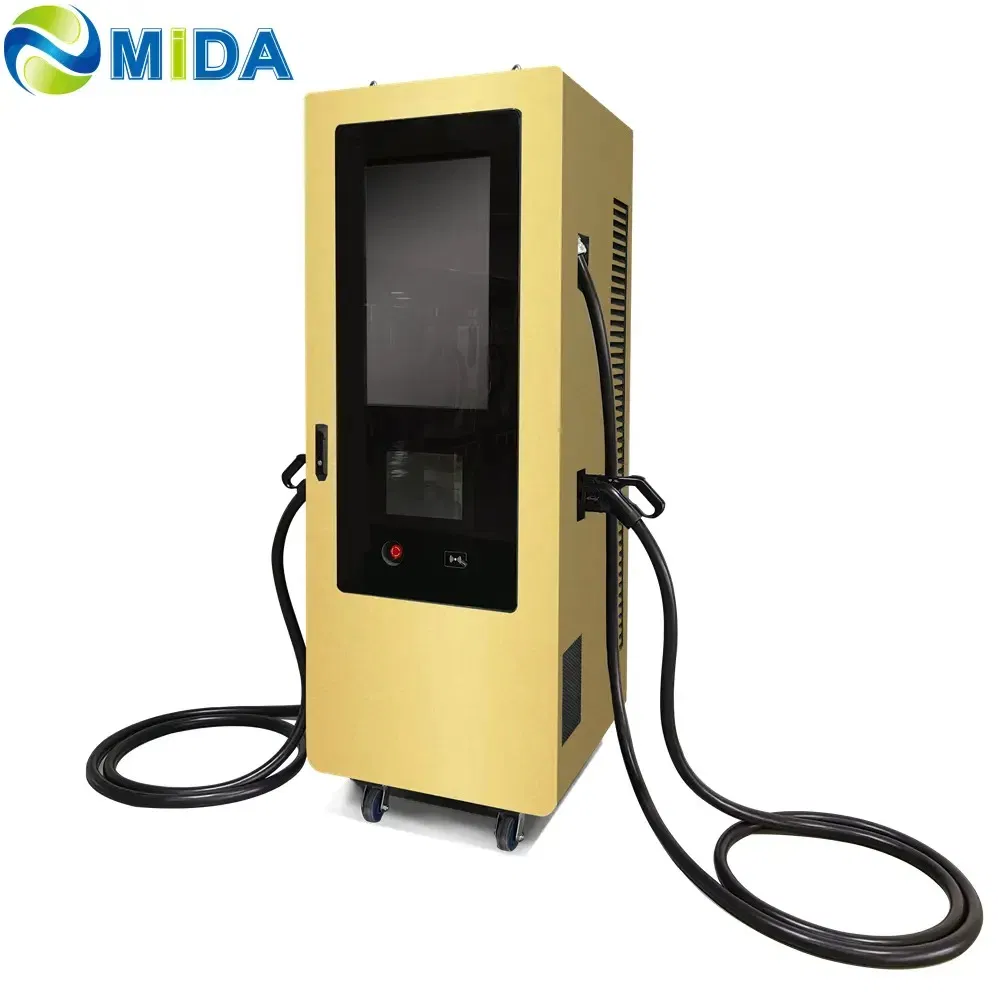

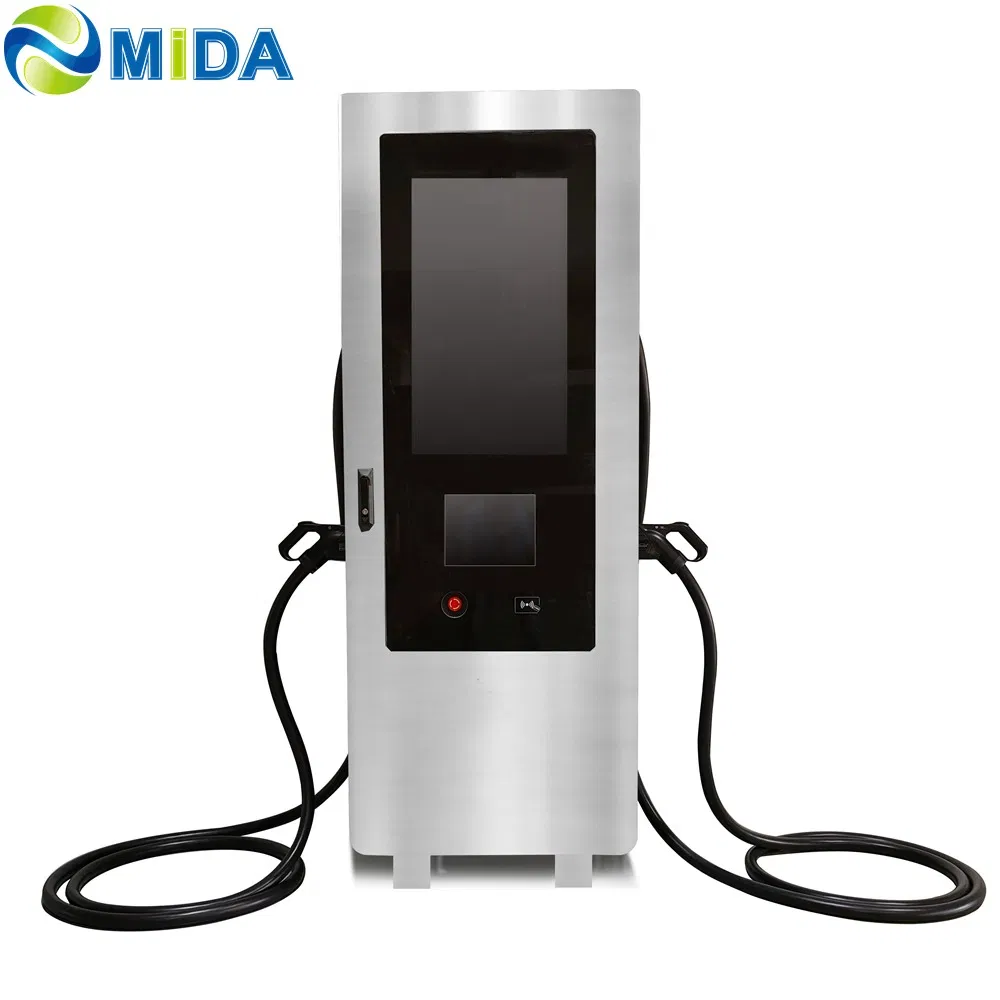

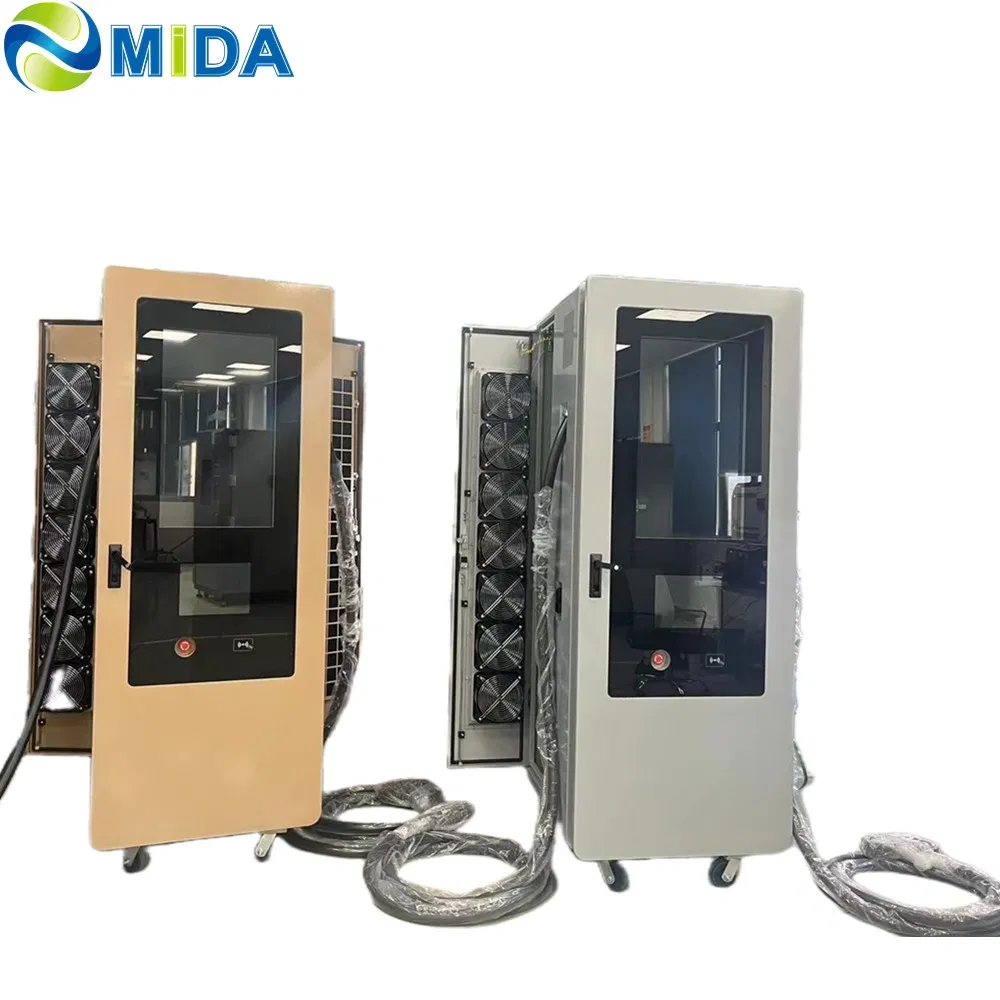

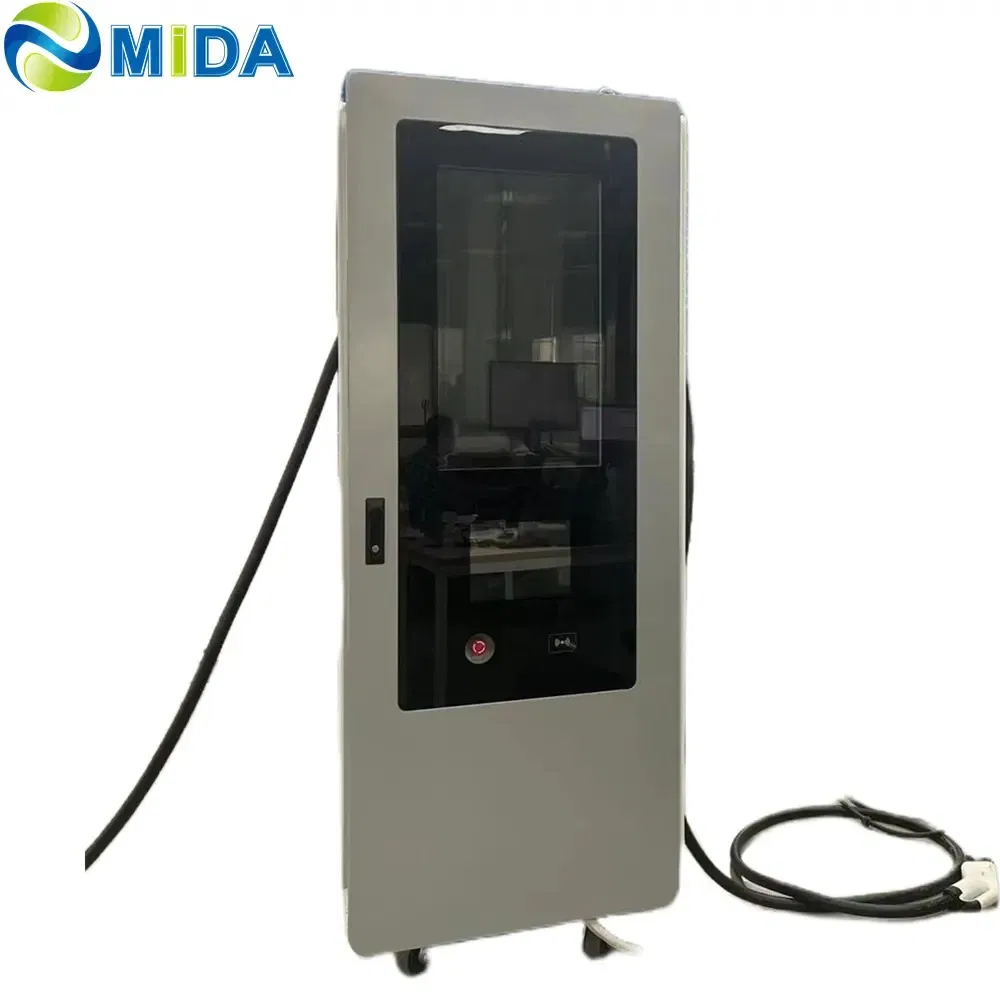

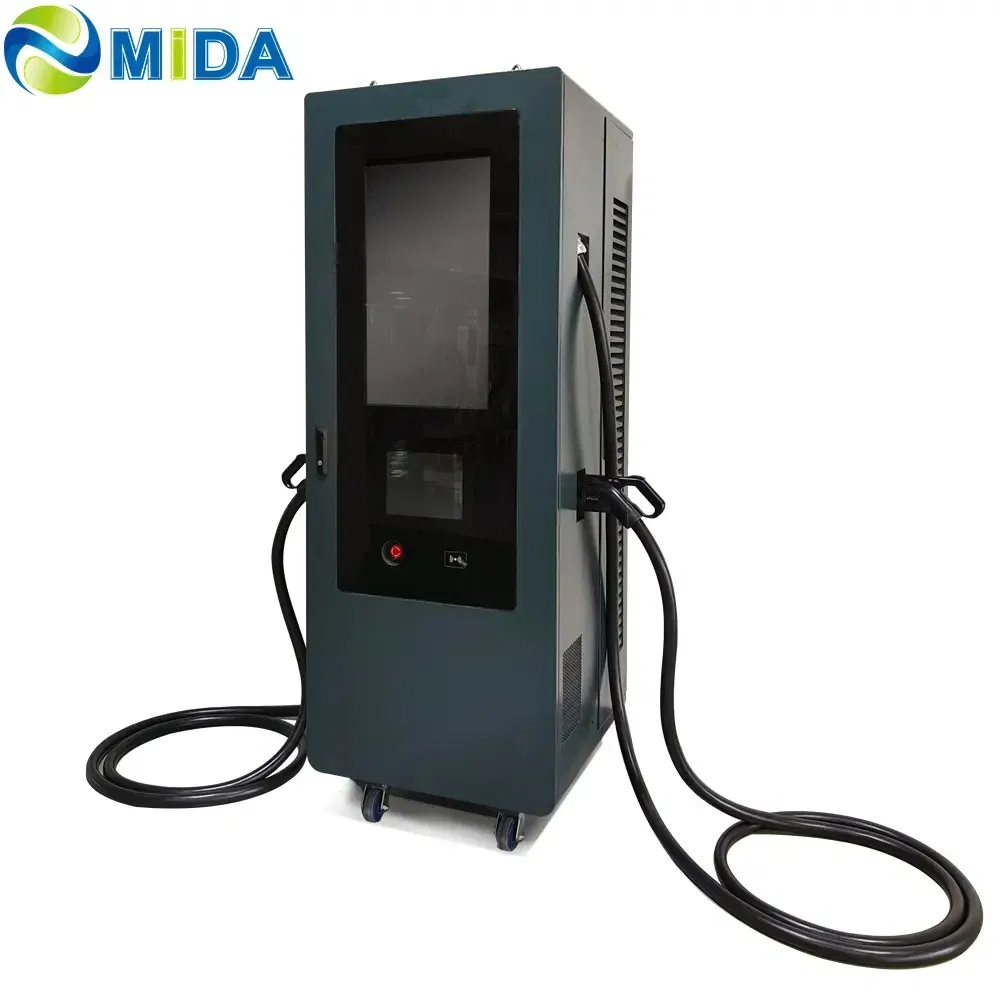

60kw DC Adversting Charging Station with 2 Guns IP54 CCS1 CCS2 Gbt Chademo Standard

1 / 5

60kw DC Adversting Charging Station with 2 Guns IP54 CCS1 CCS2 Gbt Chademo Standard

Customization:	Available
Connector Type:	CCS1, CCS2, CHAdeMO, GB/T
Installation:	Floor Type

Send Inquiry

Product Description

📊 Basic Information

Model NO.

MD-AD-60KW

Location

Public Use

Charging Interfaces

Multiple Charges

Start Mode

RFID, App, Credit Card

Output Power

60kw

Protection Degree

IP54

DC Output Range

DC150~1000V

Dimension

700*1900*650 mm

🔌 Product Overview

60kW DC Advertising Charging Station with 2 Guns | IP54 | CCS1 CCS2 GBT CHAdeMO Standard

⚙️ Technical Specifications

Model	MD-AD-60KW
Rated Power	60KW
Input Voltage	380/400V AC 3P+N+PE
Output Voltage	150-1000V DC
Output Current	0-250A
Connectors	CCS1/ CCS2/ GBT/ CHAdeMO/ NACS 5M
Efficiency	≥ 95.2% (Full load)
Screen	12.1 inch Touch + 32 inch Advertising display
Environment	-25°C to +50°C
Communication	OCPP 1.6/2.0J
Connectivity	Ethernet, WLAN, 4G

🌟 Key Features

Conform to the provisions and requirements of IEC 62752 and IEC 61851.
Advanced riveting pressure process without screws for a sleek, ergonomic appearance.
High-quality TPE cable insulation for superior aging resistance and wear durability.
Excellent protection performance with a grade achieved up to IP67 for working conditions.

Materials

Shell Material: Thermo Plastic (Insulator inflammability UL94 VO)
Contact Pin: Copper alloy, silver or nickel plating
Sealing Gasket: Rubber or silicon rubber

🖼️ Product Gallery

Frequently Asked Questions

What charging standards does this station support?

The station supports multiple global standards including CCS1, CCS2, GBT, CHAdeMO, and NACS, making it compatible with almost all electric vehicles.

Is the screen suitable for outdoor advertising?

Yes, it features a 32-inch dedicated advertising display alongside a 12.1-inch touch interface for charging operations, perfect for commercial use.

What are the available payment and start methods?

Users can start charging via RFID cards, mobile app scanning, or credit card payments, providing maximum convenience for public users.

What is the weather resistance rating of this unit?

The main unit is rated IP54, while the critical connector components achieve up to IP67 protection, ensuring reliable operation in various environmental conditions.

Can it charge two vehicles simultaneously?

Yes, the station is equipped with 2 guns and supports simultaneous or independent power distribution for efficient multi-vehicle charging.

What are the communication options for remote monitoring?

It supports OCPP 1.6j and 2.0j protocols via Ethernet, 4G, or Wi-Fi, allowing for seamless integration with management platforms.
