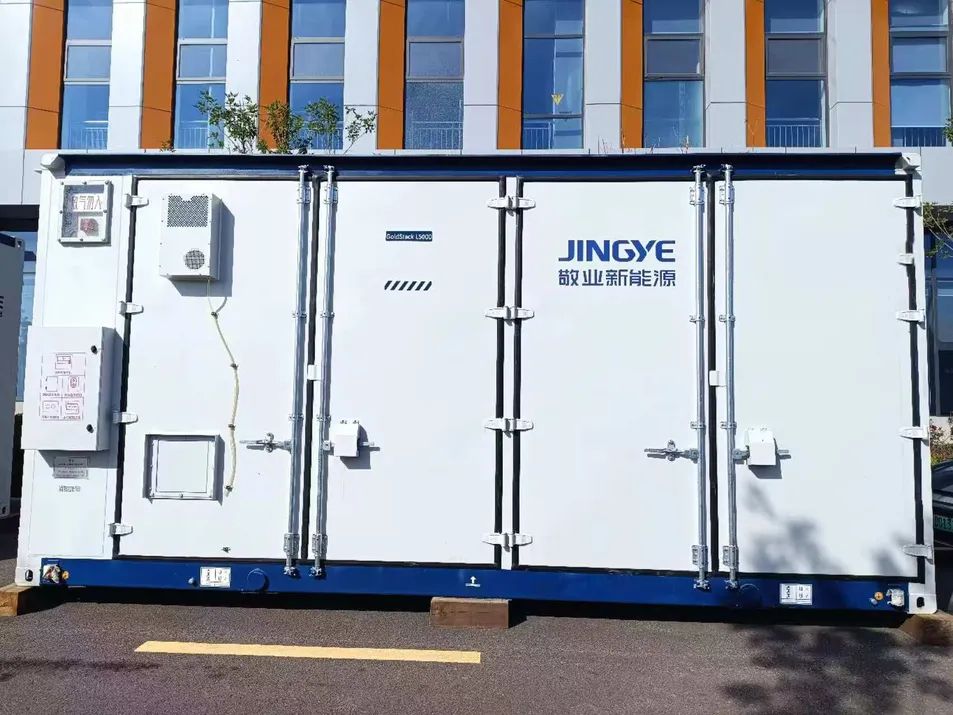

Energy Storage Container

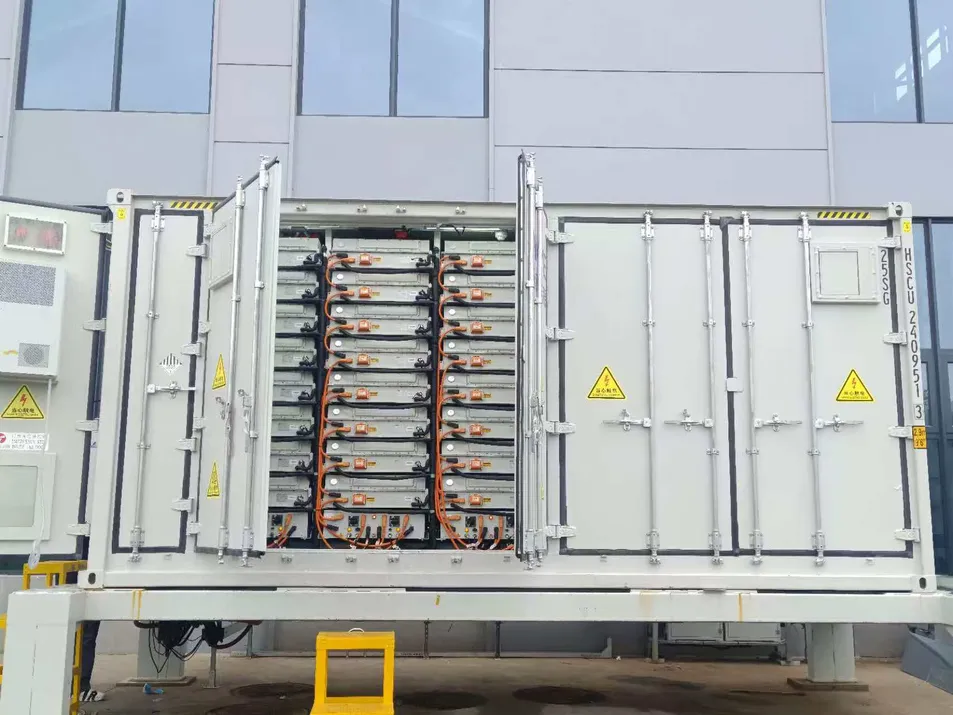

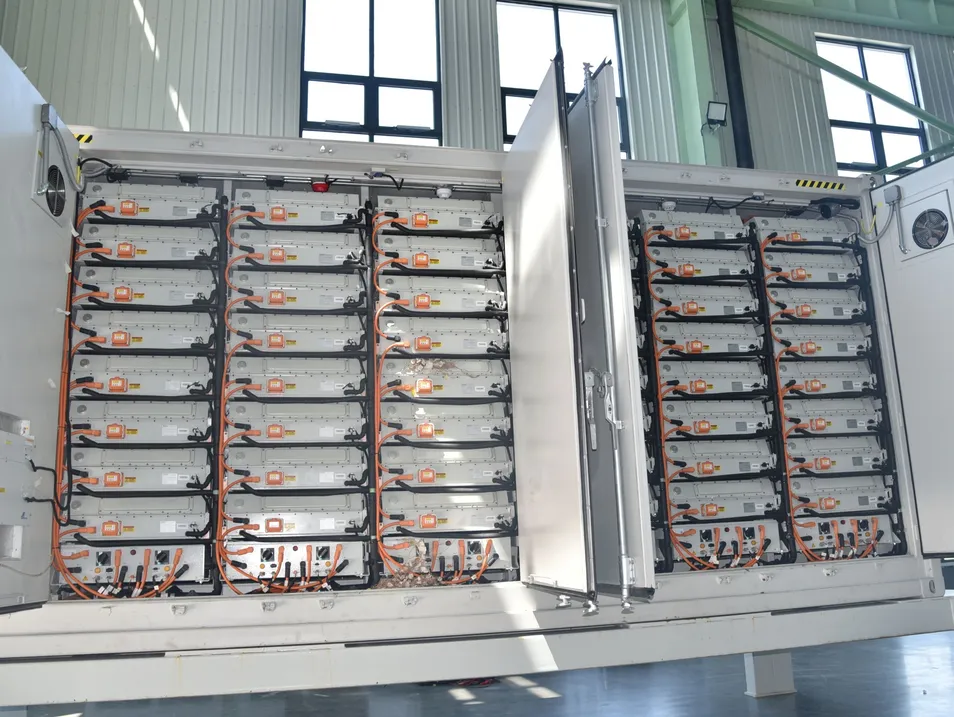

5015KWh Liquid Cooling energy storage system based on domestic high-capacity 314Ah energy storage cells, consisting of a 104S long PACK, battery cluster units, battery management systems, fire protection systems, lighting systems, thermal management systems, electrical systems, and environmental control systems. The energy storage system uses simplified integration technology, installing PACK, distribution busbars, liquid cooling units, temperature control systems, and fire protection systems within a standard 20-foot container.
| No. | Item | Specification | |
|---|---|---|---|
| 1 | Configuration | 12*(1P104S*4) | |
| 2 | Rated Power | 5MWh | |
| 3 | Rated Voltage | 1331.2VDC | |
| 4 | Voltage Range | 1164.8V - 1497.6VDC | |
| 5 | Rated Charging Power | ≤ 2.5MW | |
| 6 | Rated Discharge Power | ≤ 2.5MW | |
| 7 | Auxiliary Power Supply | 400VAC±5% 50Hz/ 220VAC | |
| 8 | Work Environment (Charge) | 0℃ < T ≤ 60℃ | |
| 9 | Work Environment (Discharge) | -30℃ < T ≤ 60℃ | |
| 10 | Dimensions | L6058 x W2438 x H2896mm | |
| 11 | IP Rating | IP54 | |
| 12 | Refrigeration method | Liquid Cooling | |

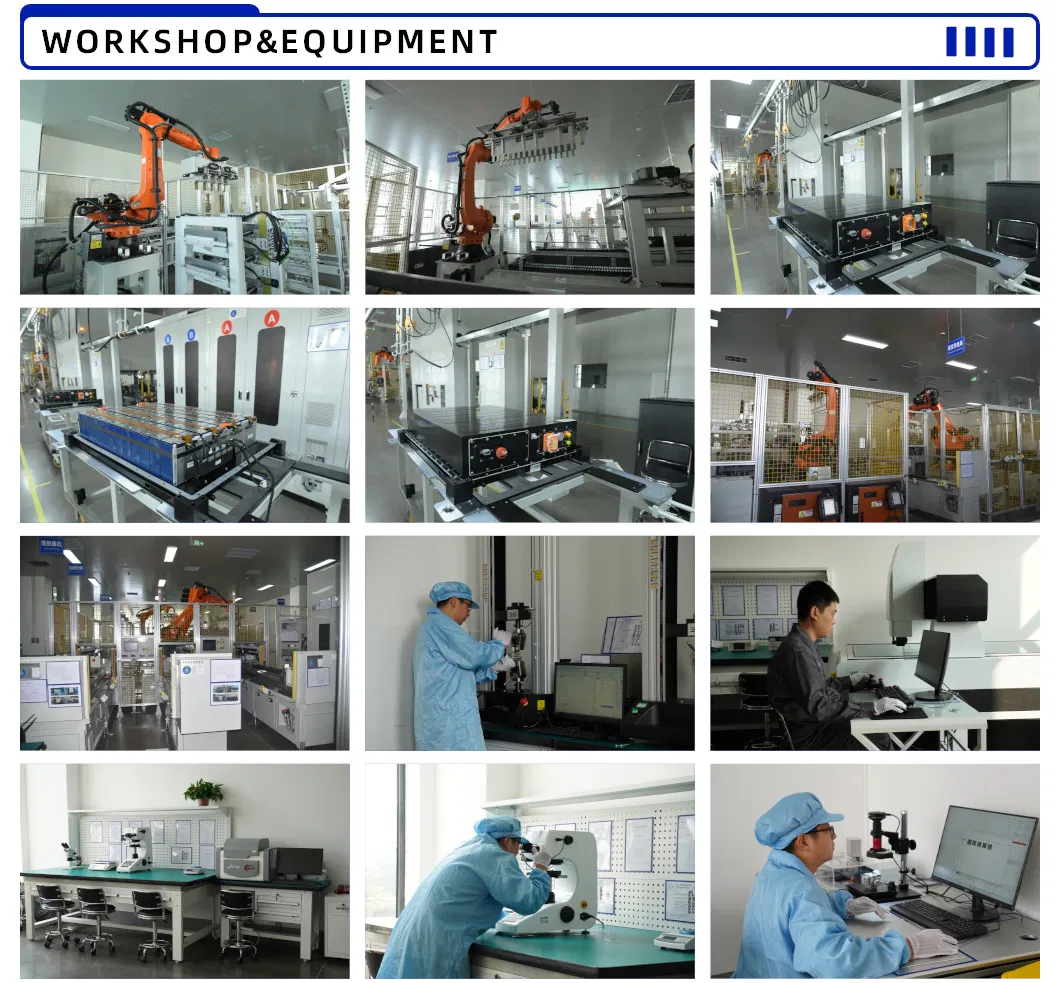

The facility features an advanced and automated production line with an annual production capacity of 5 GWh for energy storage systems and 2.4 million pieces of CCS busbars. The products are widely utilized in smart grids, wind and solar power distribution, industrial and commercial energy storage, and green transportation.
