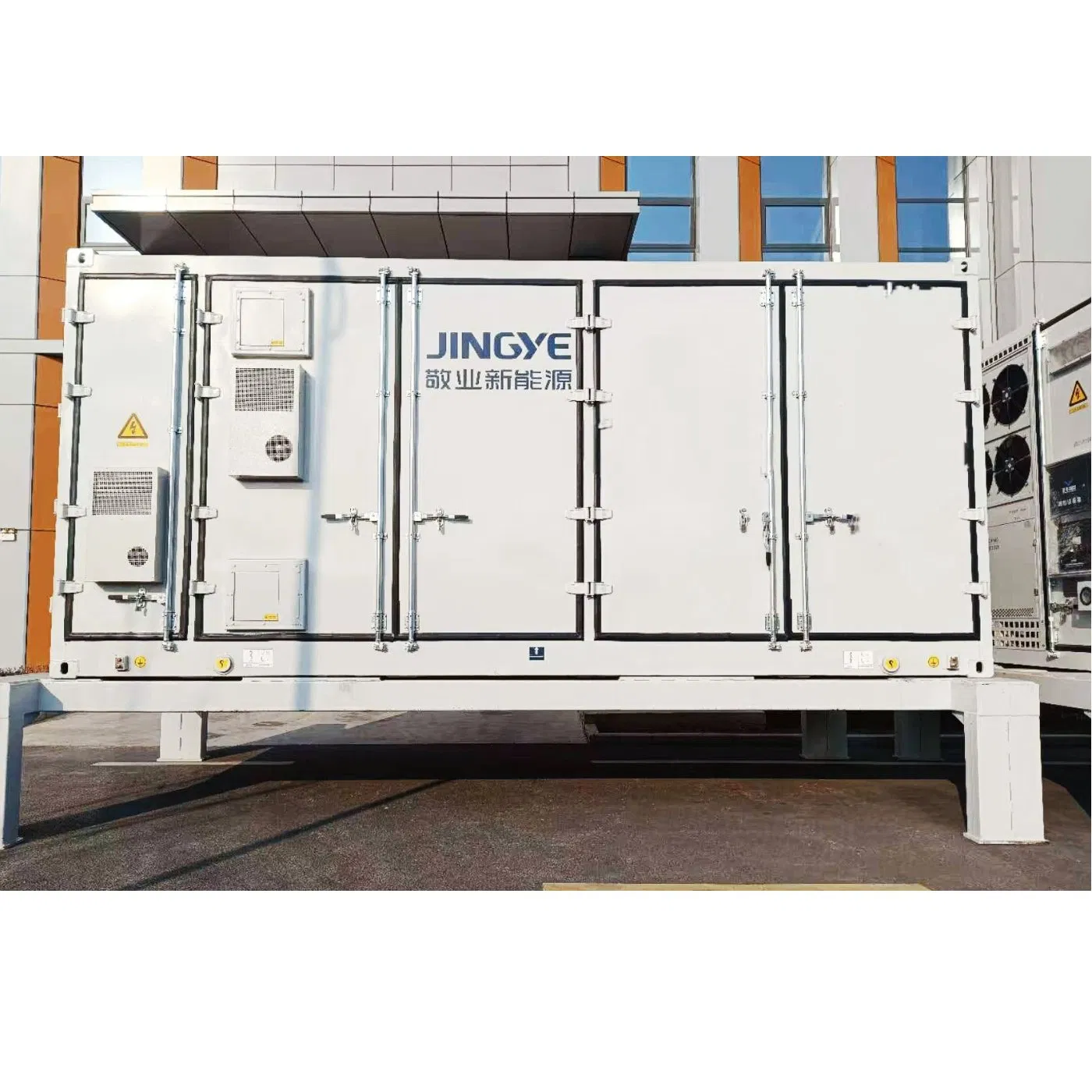

5mwh Grid-Tied Liquid-Cooled Containerized Energy Storage Unit

Customization:	Available
Container Size:	2438mm-2896mm-6058mm
Weight:	43t

Basic Information

Model NO.

5.015MWh

Nominal Voltage

1331.2V

Warranty

3 Years

Nominal Capacity

5015kWh

Cycle Life

9000 Cycles

Configuration

12*(1p104s*4)

Rated Power

5mwh

Voltage Range

1164.8V - 1497.6V DC

IP Rating

IP54

Refrigeration

Liquid Cooling

Product Overview

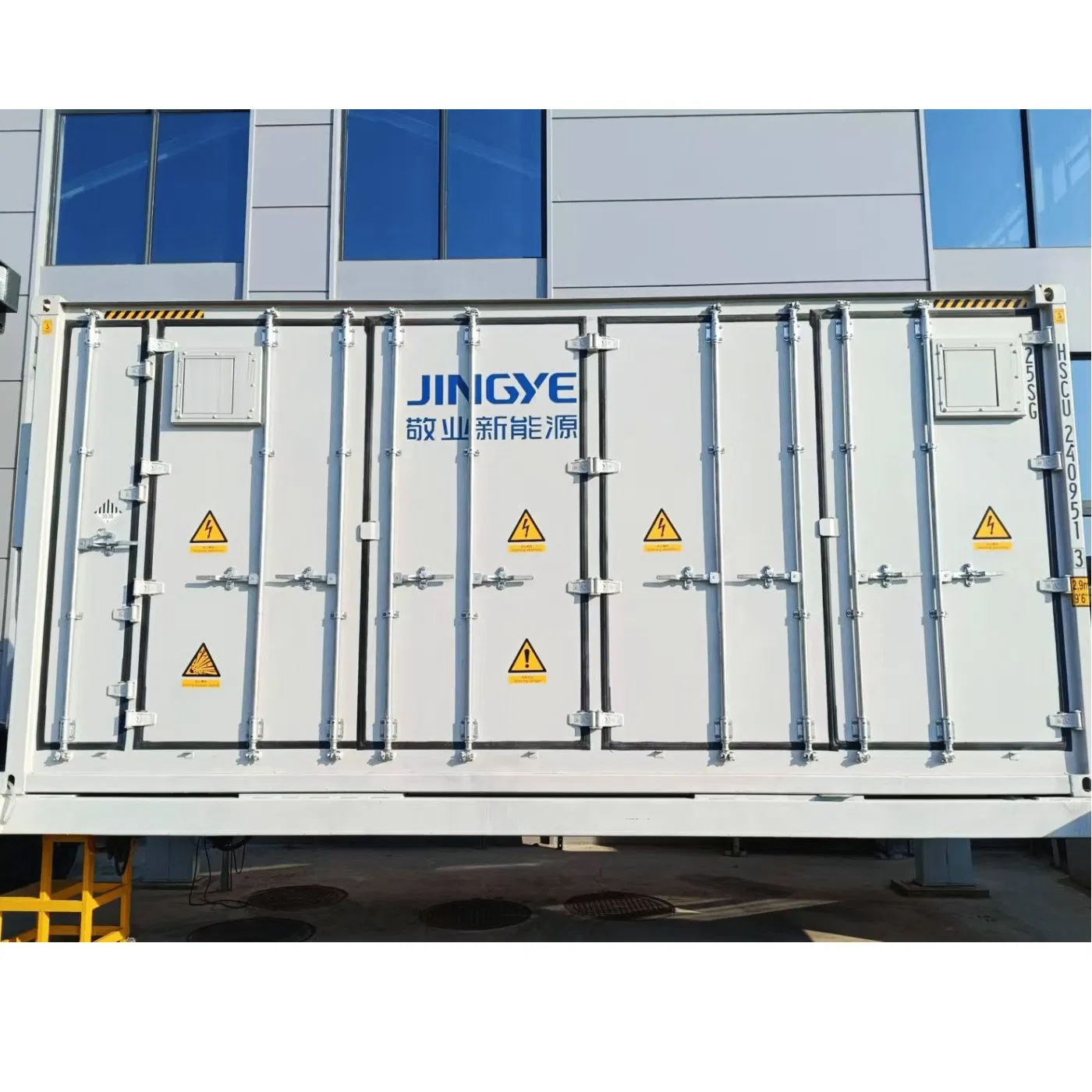

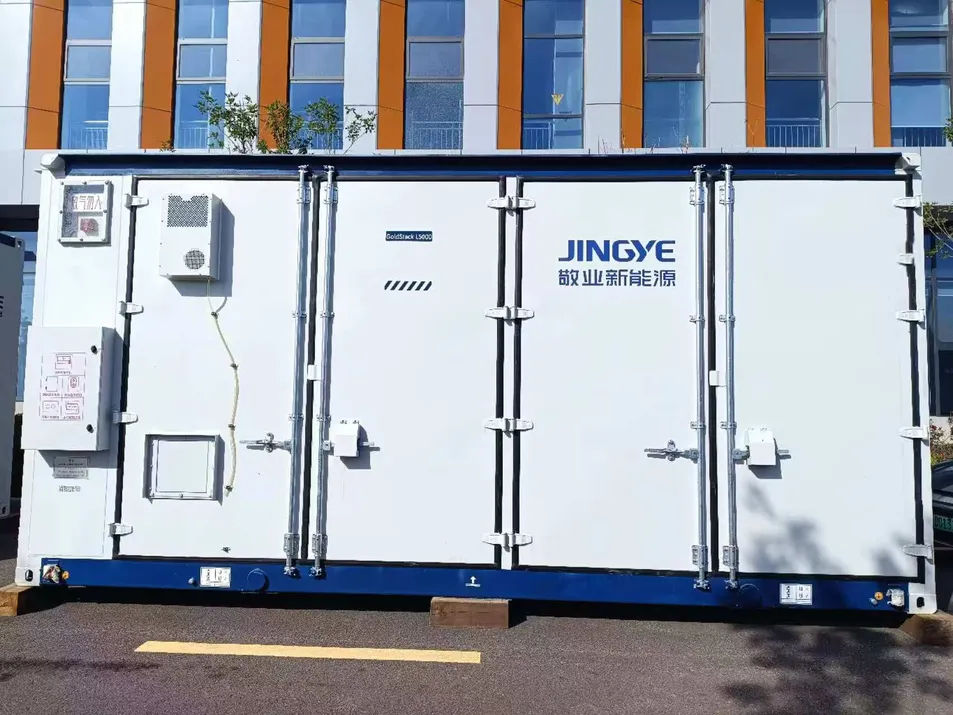

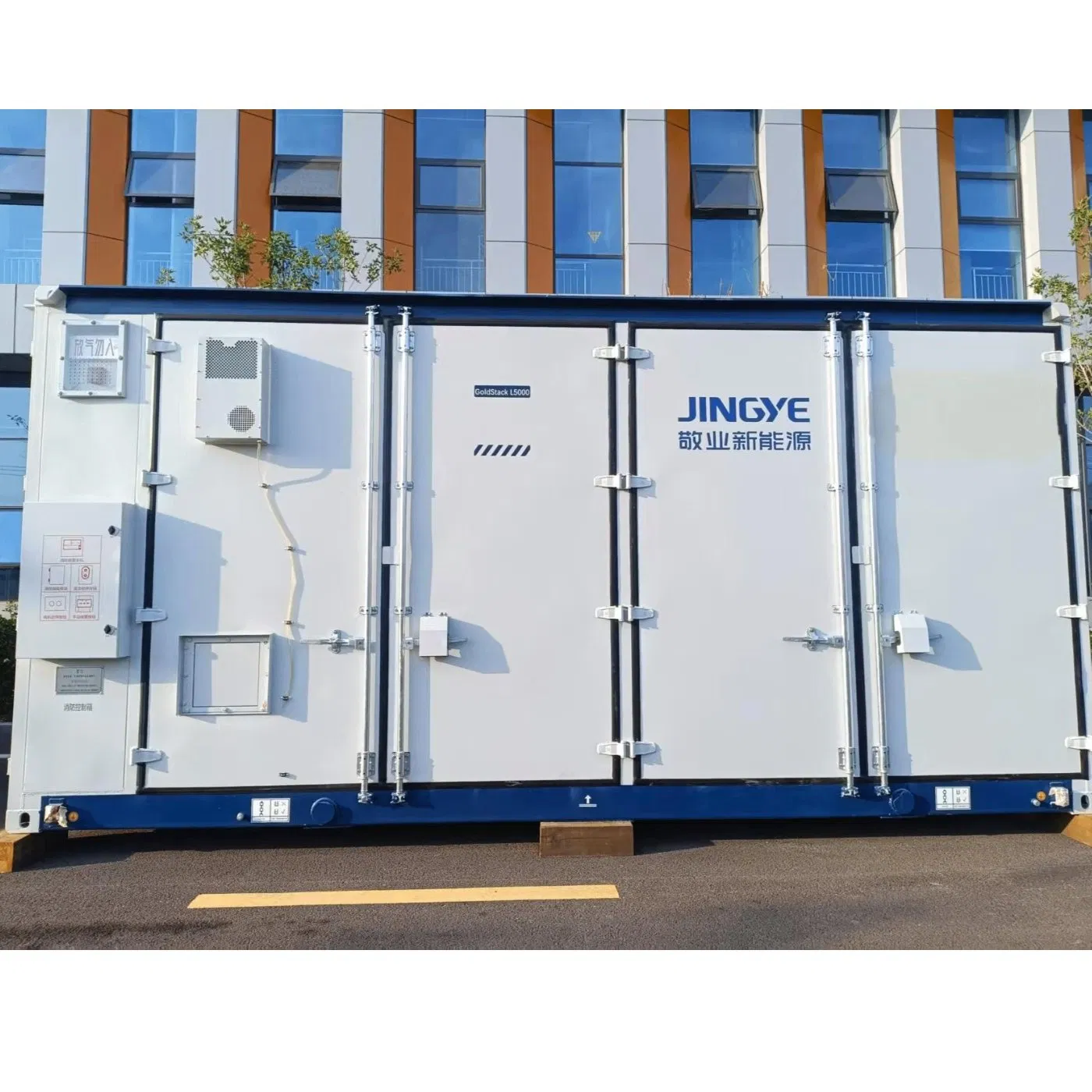

Energy Storage Container

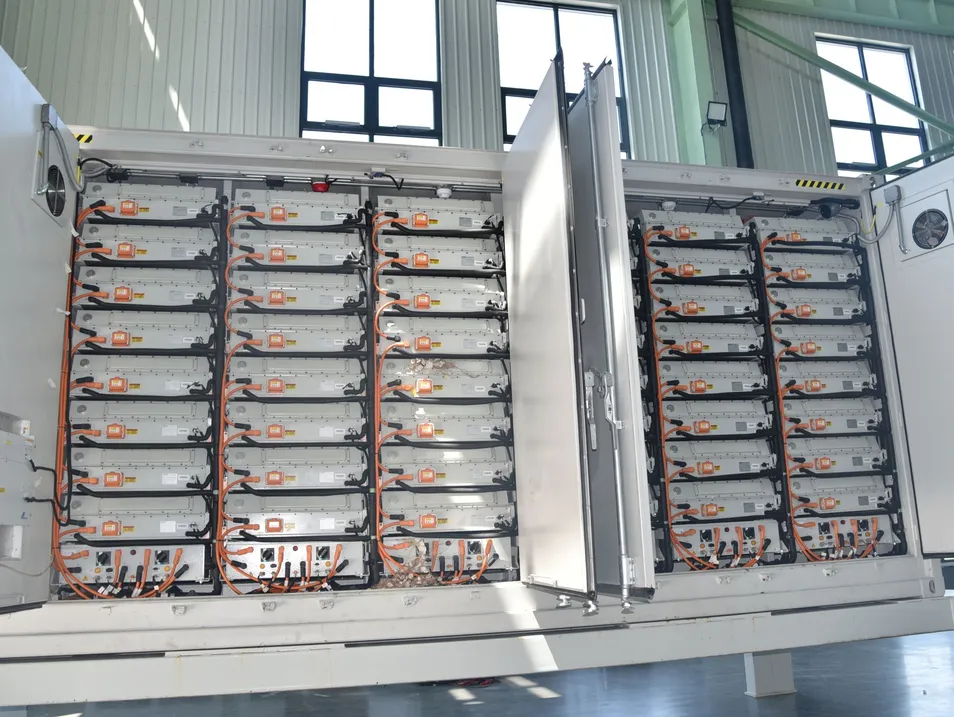

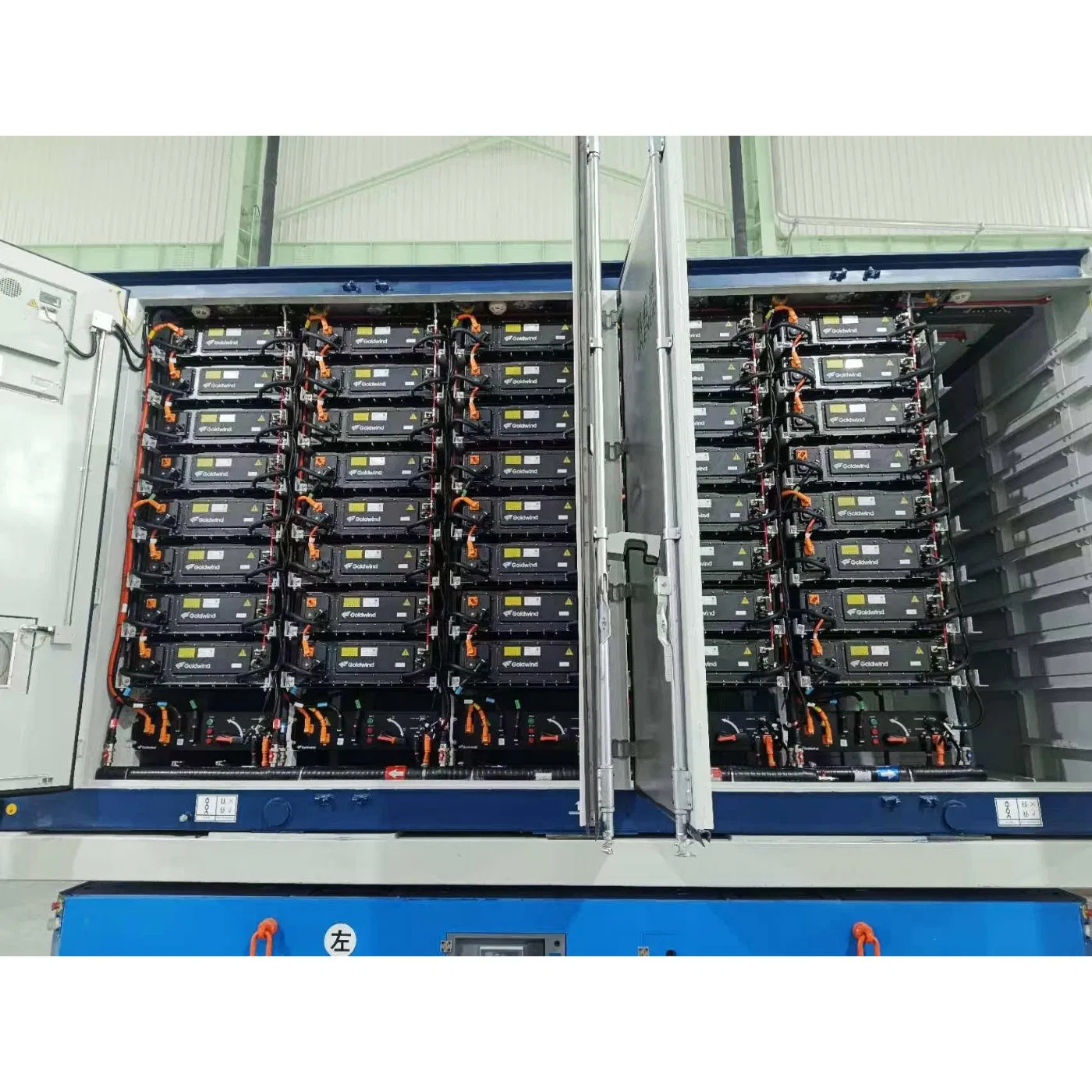

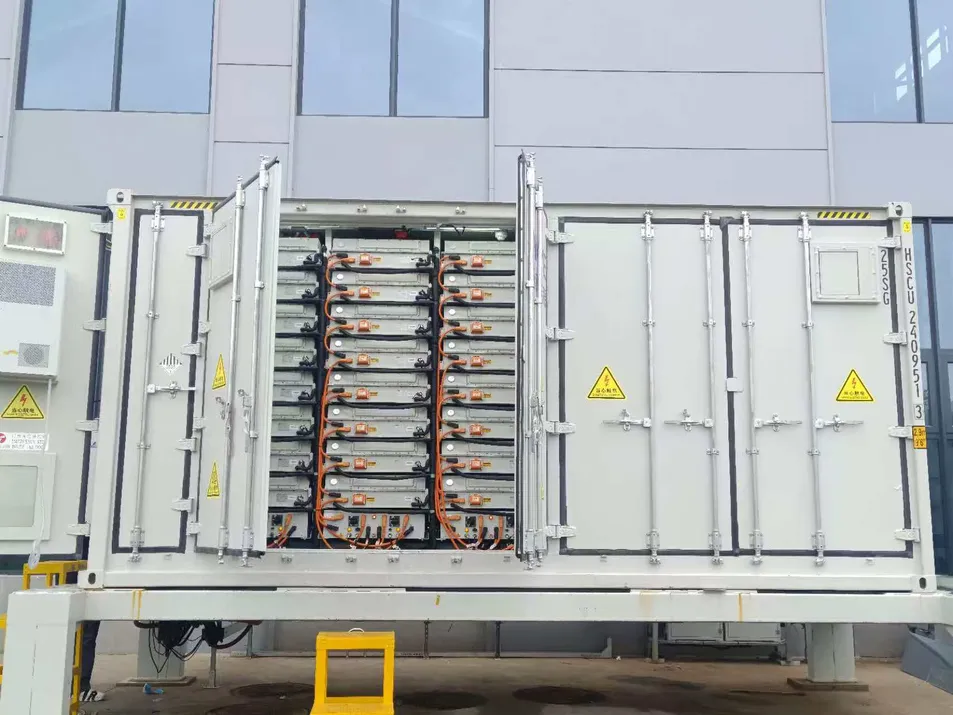

The 5015KWh Liquid Cooling energy storage system is based on domestic high-capacity 314Ah energy storage cells. It consists of a 104S long PACK, battery cluster units, battery management systems, fire protection systems, lighting systems, thermal management systems, electrical systems, and environmental control systems. The system uses simplified integration technology, installing PACK, distribution busbars, liquid cooling units, and safety systems within a standard 20-foot container (2438mm-2896mm-6058mm), ensuring robust safety control suitable for various transportation and site conditions.

Key Features

✓

Battery Technology: Mature, high-efficiency, long-life large-capacity lithium iron phosphate batteries.

✓

Battery Management: Advanced intelligent BMS to ensure maximum product safety.

✓

Thermal Management: High-precision industrial air conditioning ensures a 3℃ difference inside PACK and 5℃ in the cabinet.

✓

Safety Protection: Multi-level fire extinguishing systems (perfluorohexane or aerosol) for PACK, cluster, and compartment.

✓

Modular Design: Highly modular structure for easy transportation, installation, and rapid maintenance.

Technical Specifications

No.	Item	Specification
1	Configuration	12(1P104S4)
2	Rated Power	5MWh
3	Rated Voltage	1331.2VDC
4	Voltage Range	1164.8V - 1497.6VDC
5	Rated Charging Power	≤ 2.5MW
6	Rated Discharge Power	≤ 2.5MW
7	Auxiliary Power Supply	400VAC±5% 50Hz/ 220VAC
8	Working Temp (Charge)	0℃ < T ≤ 60℃
9	Working Temp (Discharge)	-30℃ < T ≤ 60℃
10	Altitude	≤ 4000m (derating above)
11	Dimensions	L6058 x W2438 x H2896mm
12	Weight	About 43t
13	Communication	Ethernet, CAN, ModbusRTU
14	Coolant	50% ethylene glycol aqueous solution

Main Products & Workshop

Our automated production line boasts an annual capacity of 5 GWh for energy storage systems and 2.4 million pieces of CCS busbars. These products are widely utilized in smart grids, wind/solar distribution, industrial storage, and green transportation. We provide rapid and high-quality services to global customers through a comprehensive layout in the new energy market.

Certifications & Global Presence

Frequently Asked Questions

Q1: What are the primary energy storage products available?

A: We specialize in 5MWh Energy Storage Containers, Commercial & Industrial Energy Storage Cabinets, CCS Integrated Busbars, and specialized Battery Packs.

Q2: Is customization available for specific project requirements?

A: Yes, we offer flexible customization services for energy storage products across diverse process types and capacities.

Q3: How is the production and delivery timeline managed?

A: Equipped with a comprehensive automated production line and proficient technical personnel, we guarantee stable production and on-time global delivery.

Q4: How can I obtain a detailed technical quotation?

A: Please contact our online staff directly via the website; they will promptly provide you with a comprehensive technical specification and quotation.

Q5: Are you a manufacturer or a trading company?

A: We are a formal source factory with standardized production processes, offering competitive pricing and top-tier product quality directly.

Q6: What cooling technology is used in the 5MWh container?

A: The system utilizes advanced liquid cooling technology with a 50% ethylene glycol aqueous solution to ensure precise temperature control and battery longevity.
