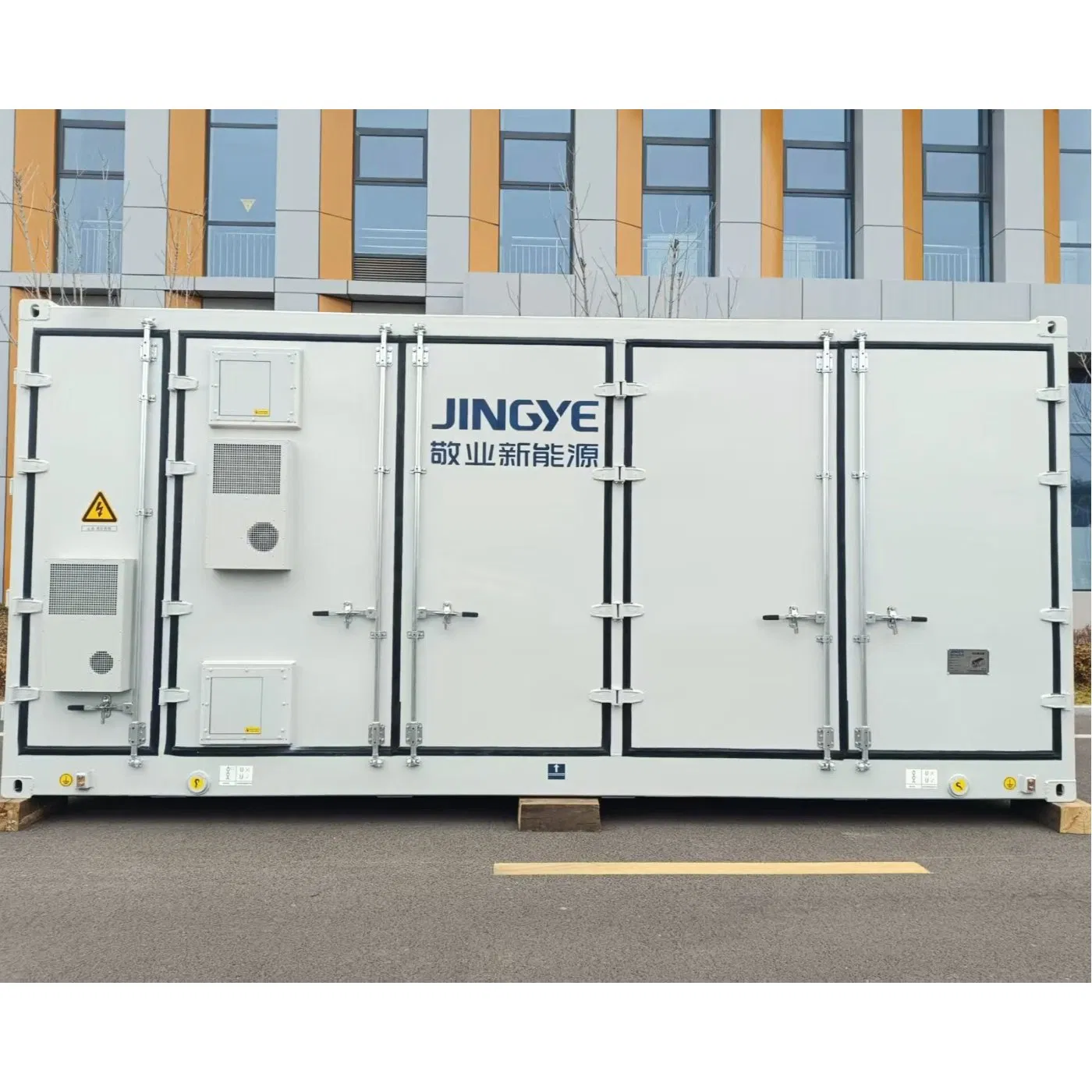

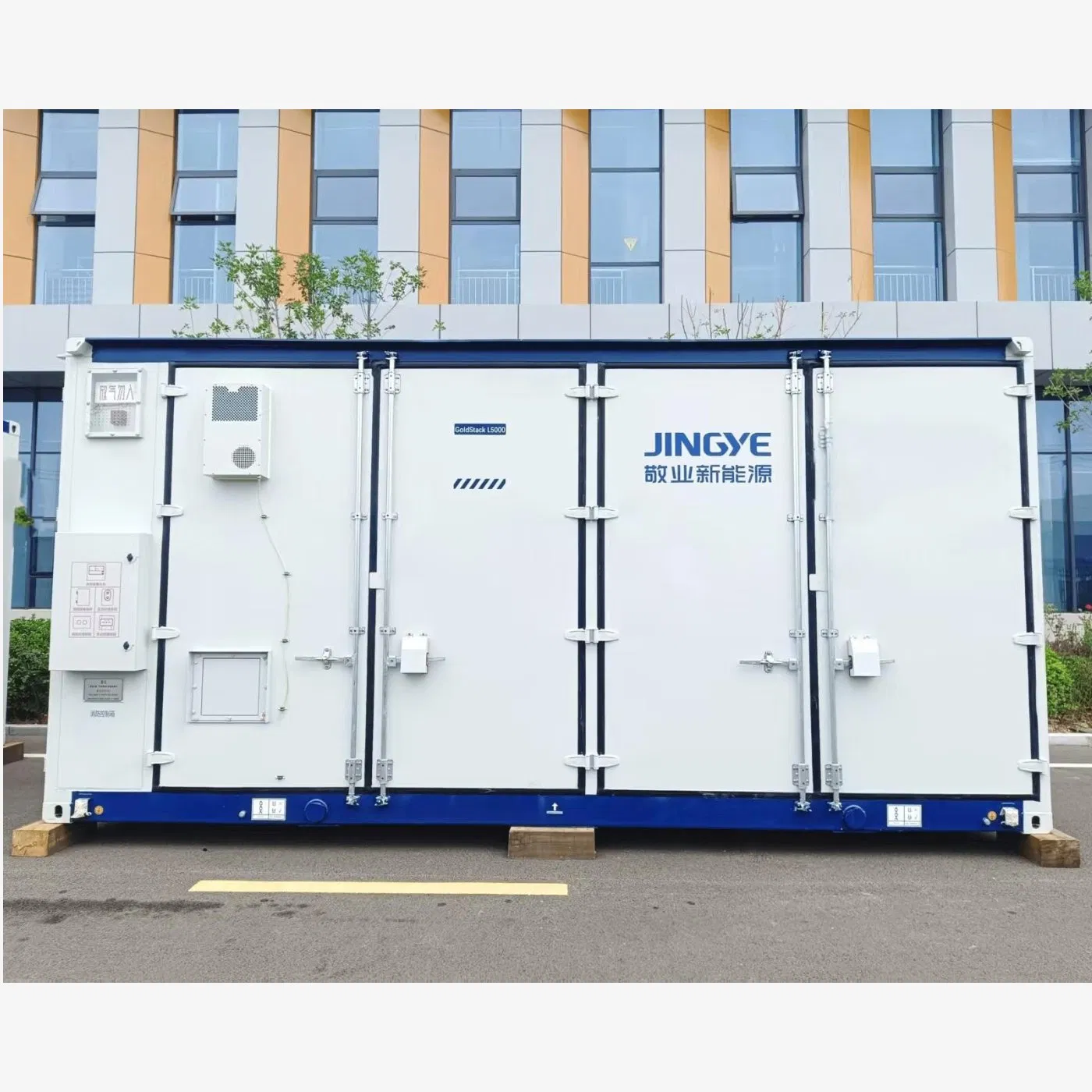

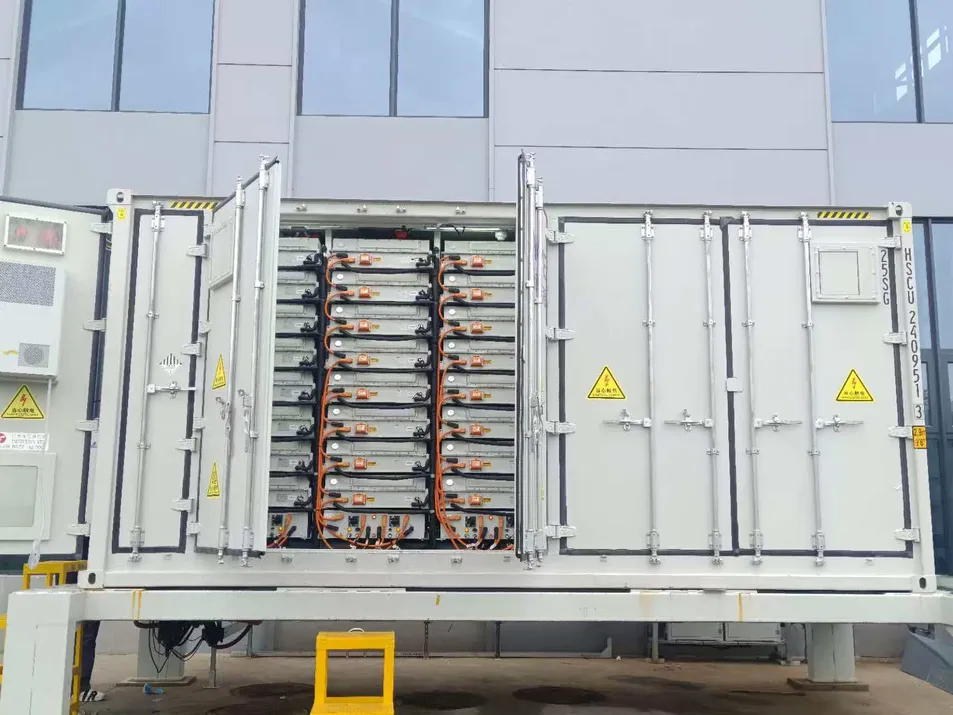

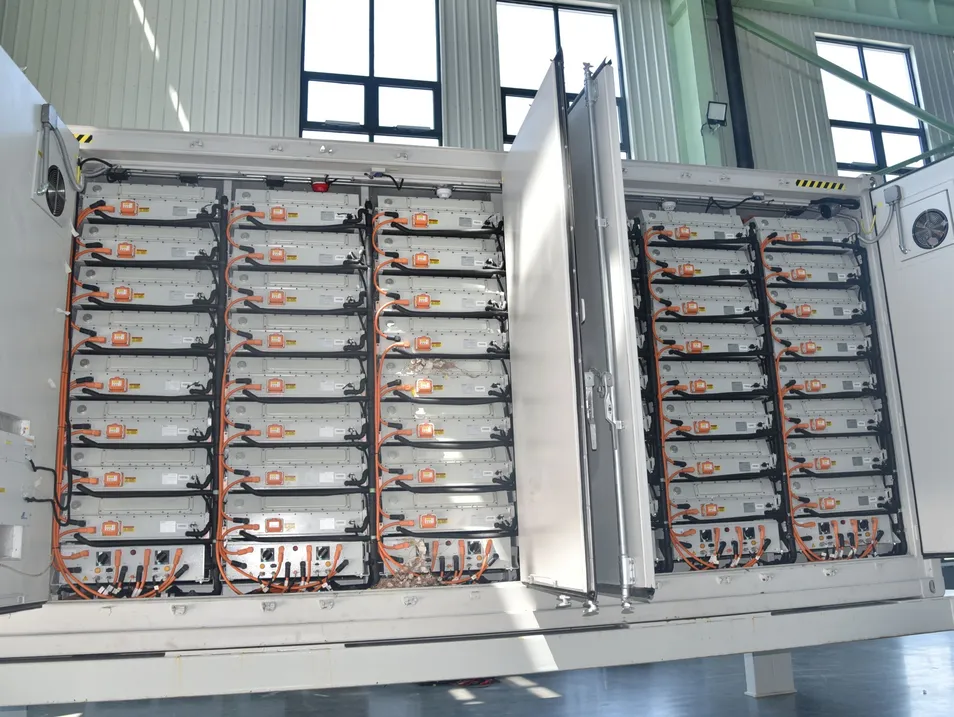

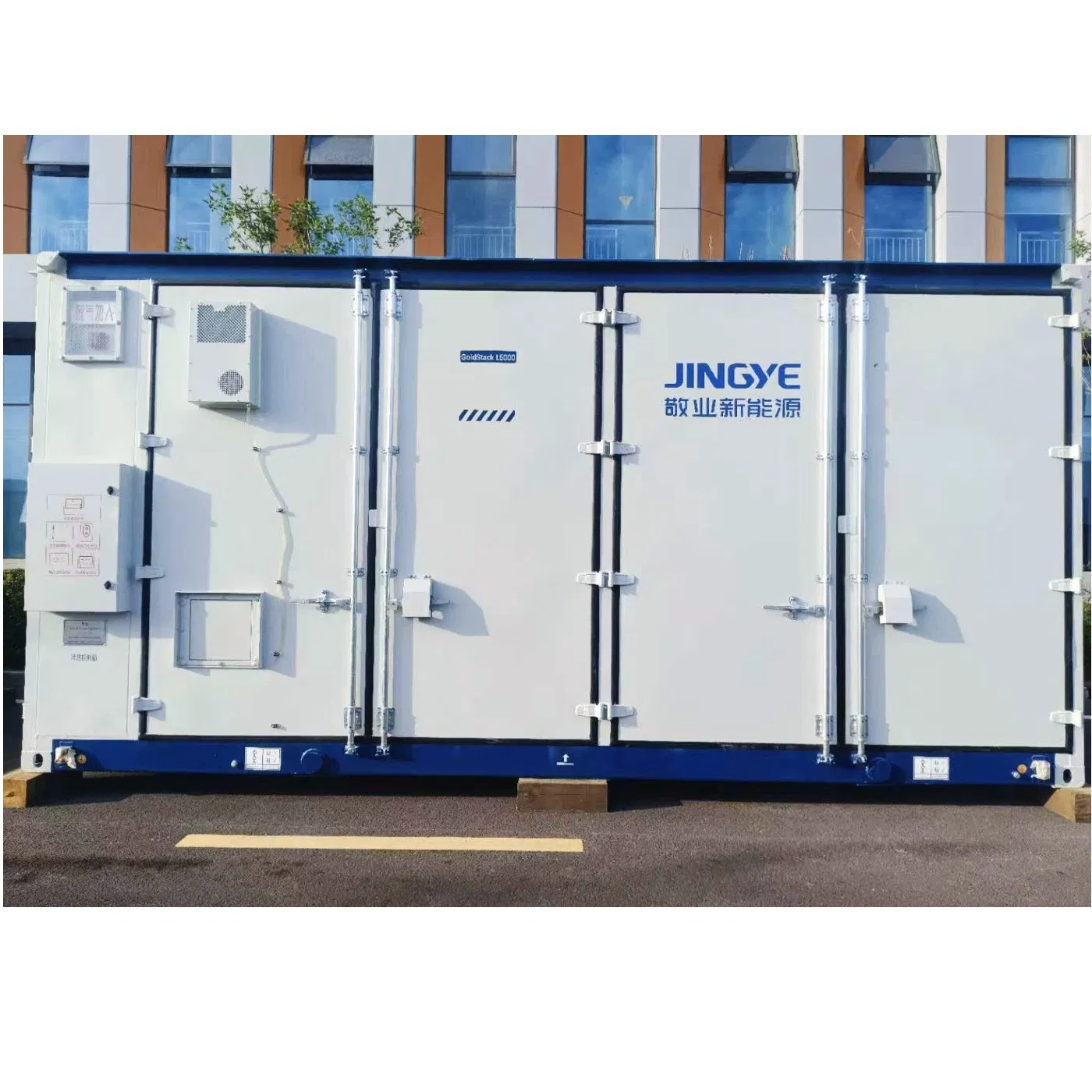

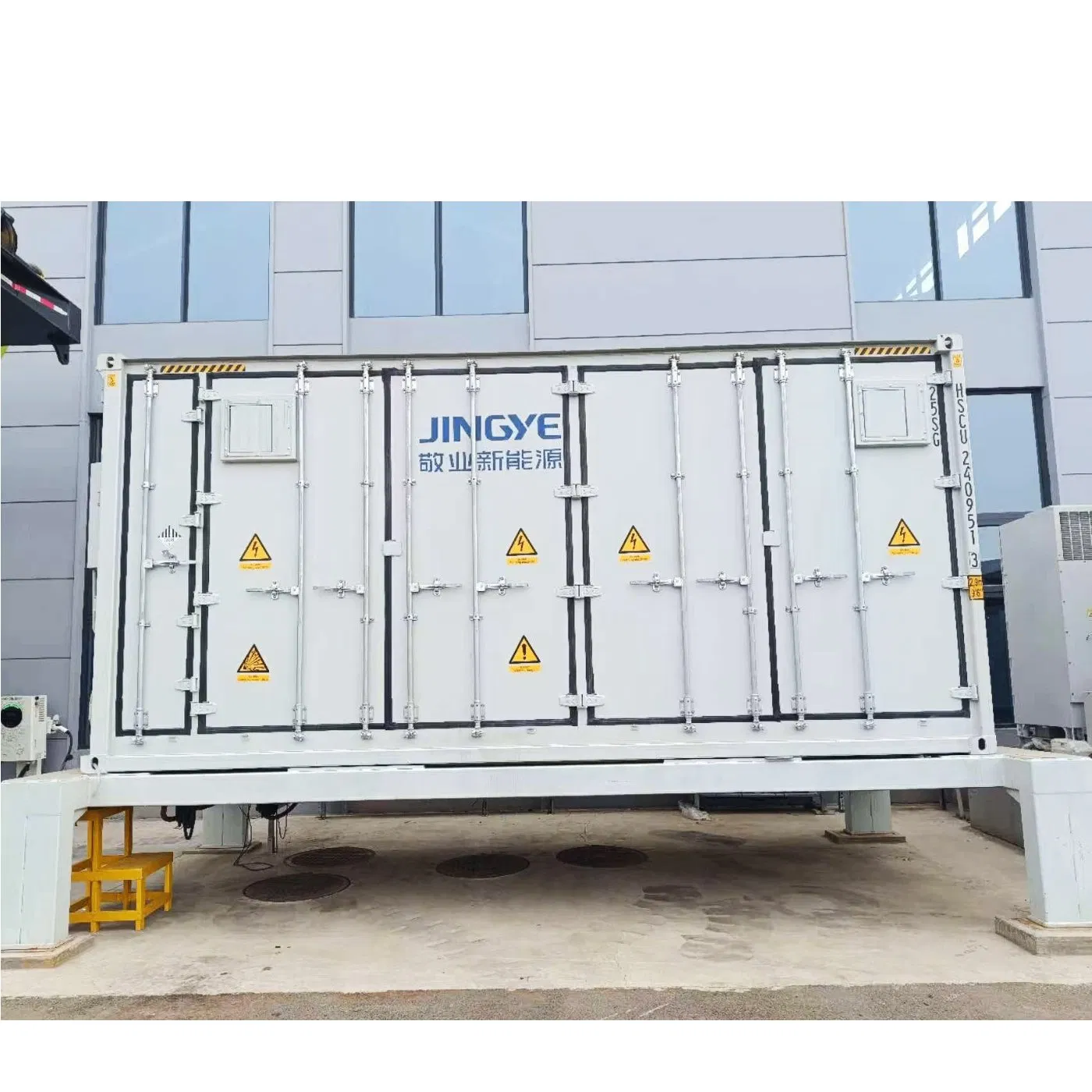

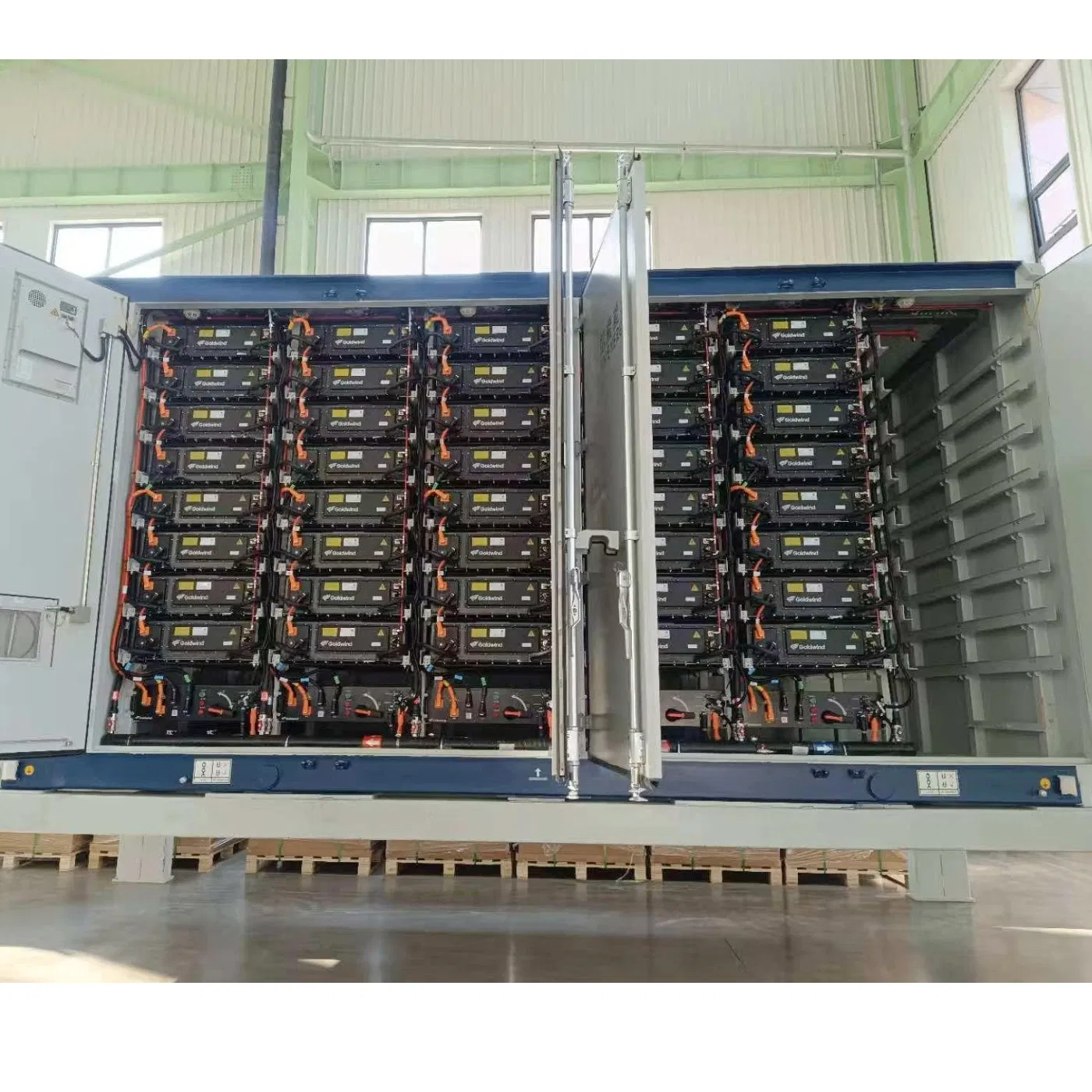

This advanced energy storage system is based on high-capacity 314Ah cells, featuring 104S long PACK design. It integrates battery cluster units, intelligent management systems (BMS), high-precision thermal management, and robust fire protection. All components are housed within a standard 20-foot container (2438mm x 2896mm x 6058mm) for easy transport and rapid site installation.
Utilizes mature, high-efficiency lithium iron phosphate batteries with exceptional cycle life.
Equipped with advanced BMS to ensure product safety and real-time monitoring.

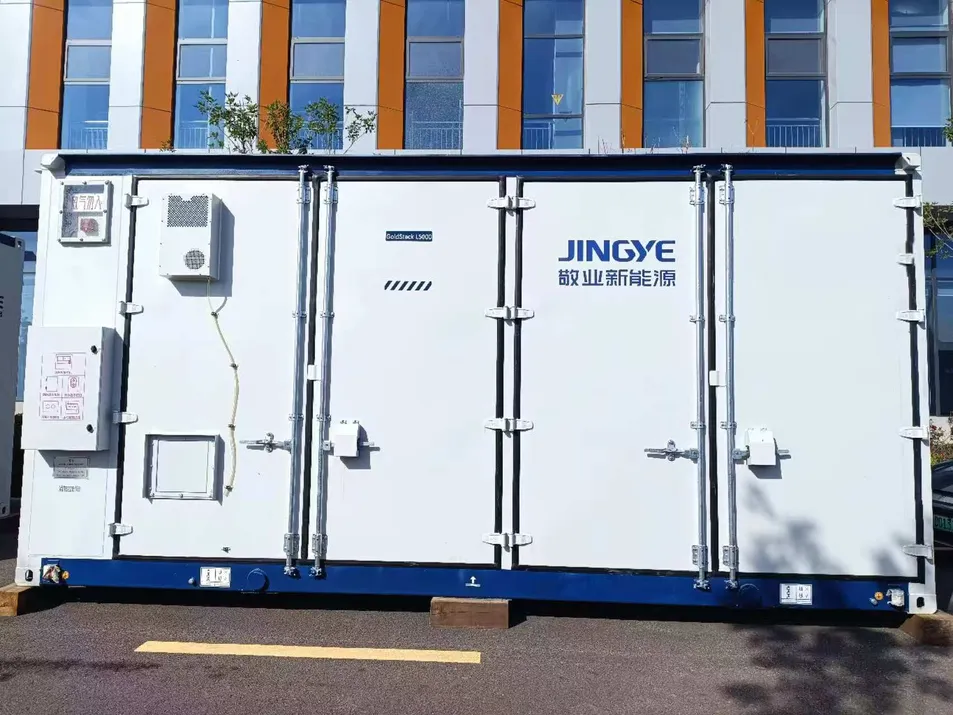

Precision liquid cooling maintains temperature differences within 3°C inside the PACK.
Three-level automatic fire extinguishing system using perfluorohexane or aerosol.
Standard 20-foot container design for simplified logistics and maintenance.
Includes humidity, smoke, and video monitoring equipment for total environment control.
| No. | Item | Specification |
|---|---|---|
| 1 | Configuration | 12*(1P104S*4) |
| 2 | Rated Power | 5MWh |
| 3 | Rated Voltage | 1331.2VDC |
| 4 | Voltage Range | 1164.8V - 1497.6VDC |
| 5 | Rated Charging/Discharge Power | ≤ 2.5MW |
| 6 | Auxiliary Power Supply | 400VAC±5% 50Hz / 220VAC |
| 7 | IP Rating | IP54 |
| 8 | Dimensions | L6058 x W2438 x H2896mm |
| 9 | Operating Temperature | 0℃~60℃ (Charge) / -30℃~60℃ (Discharge) |
| 10 | Communication | Ethernet, CAN, ModbusRTU |

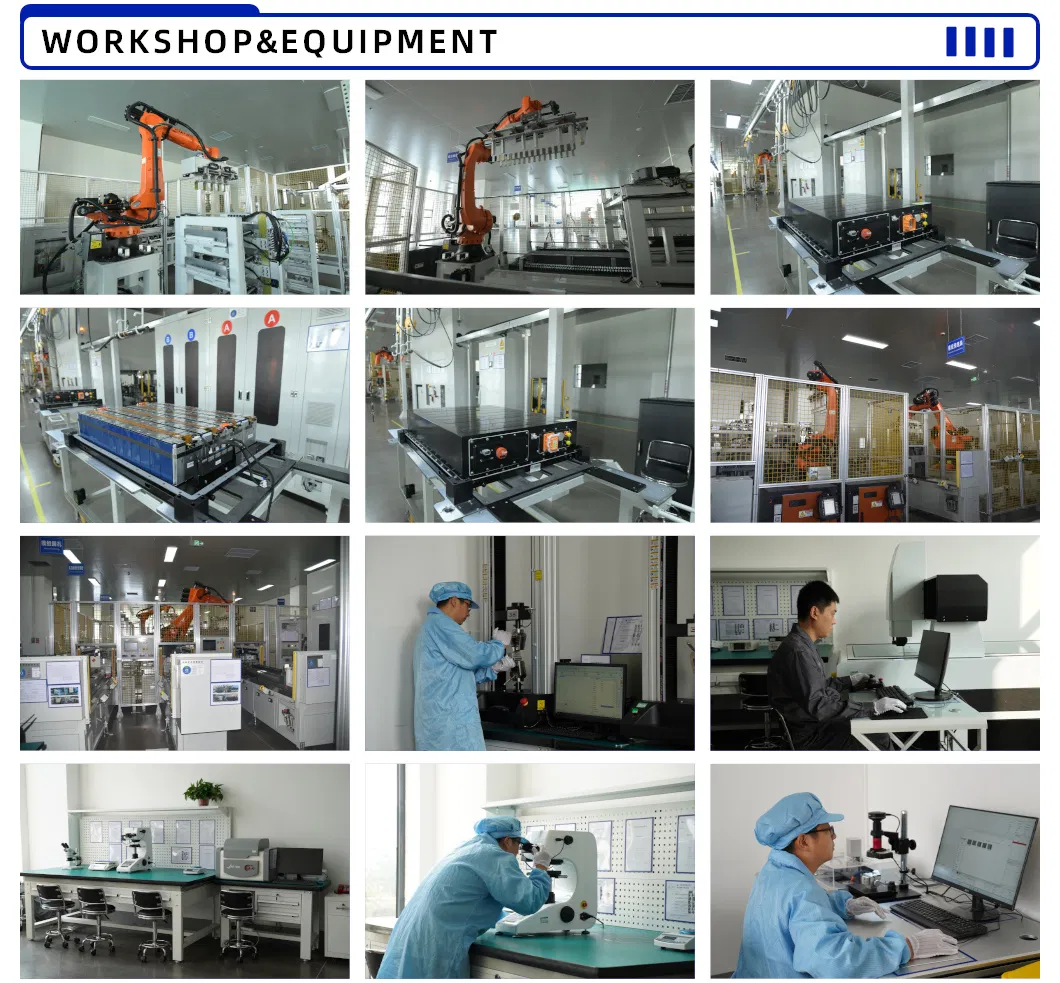

The facility features automated production lines with an annual capacity of 5 GWh for energy storage systems and 2.4 million CCS busbars. Products are utilized globally in smart grids, renewable energy distribution, and green transportation.
