Energy Storage Container: 5015KWh Liquid Cooling energy storage system based on high-capacity 314Ah energy storage cells. The system consists of 104S long PACKs, battery cluster units, battery management systems, fire protection, thermal management, and environmental control systems. Integrated into a standard 20-foot container, it ensures safety control while being suitable for various transportation conditions and site designs.
| Item | Specification |
|---|---|
| Configuration | 12*(1P104S*4) |
| Rated Power | 5MWh |
| Rated Voltage | 1331.2VDC |
| Voltage Range | 1164.8V - 1497.6VDC |
| Rated Charging/Discharge Power | ≤ 2.5MW |
| Auxiliary Power Supply | 400VAC±5% 50Hz/ 220VAC |
| Storage Temperature | 5℃ < T ≤ 35℃ |
| Work Temperature | -30℃ to 60℃ |
| Altitude | ≤ 4000m |
| Dimensions | L6058 x W2438 x H2896mm |
| Weight | About 43t |
| Coolant | 50% ethylene glycol aqueous solution |
| Communication Protocol | Ethernet, CAN, ModbusRTU |

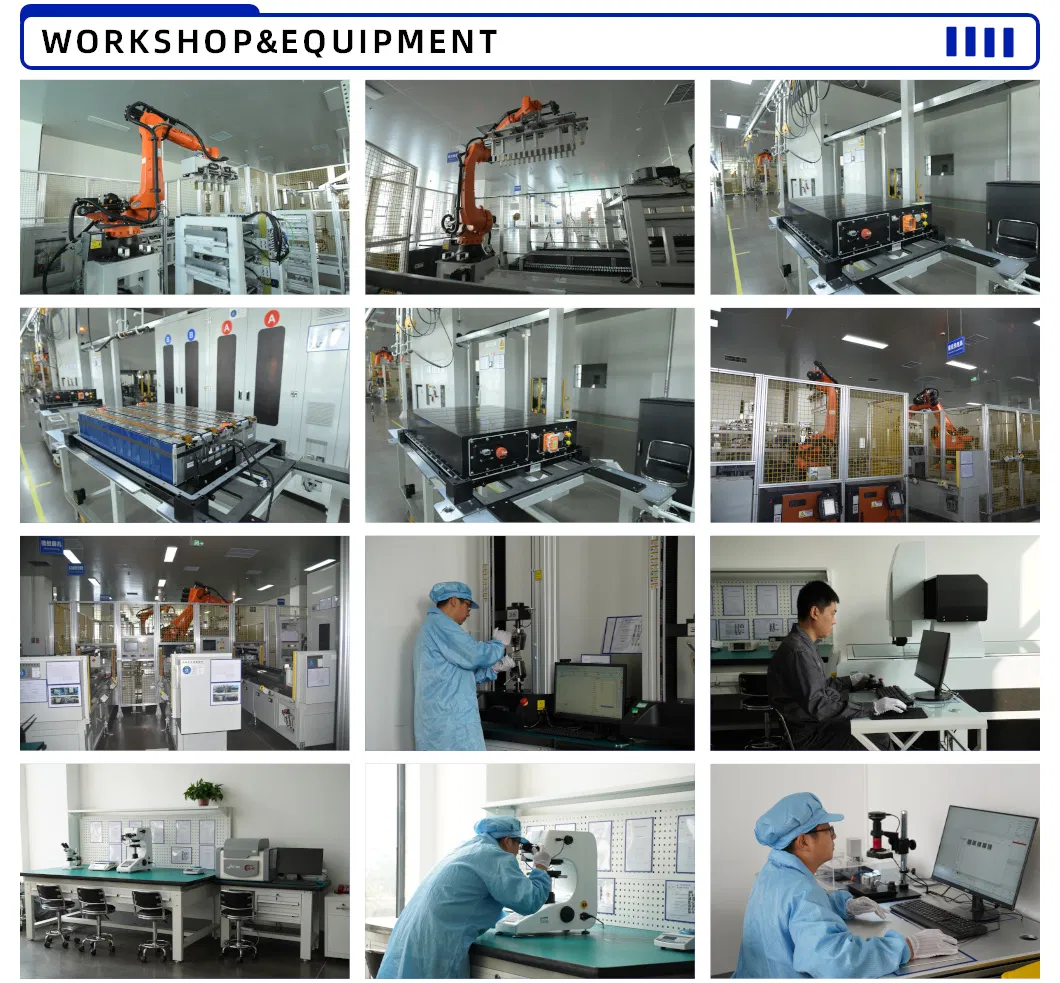

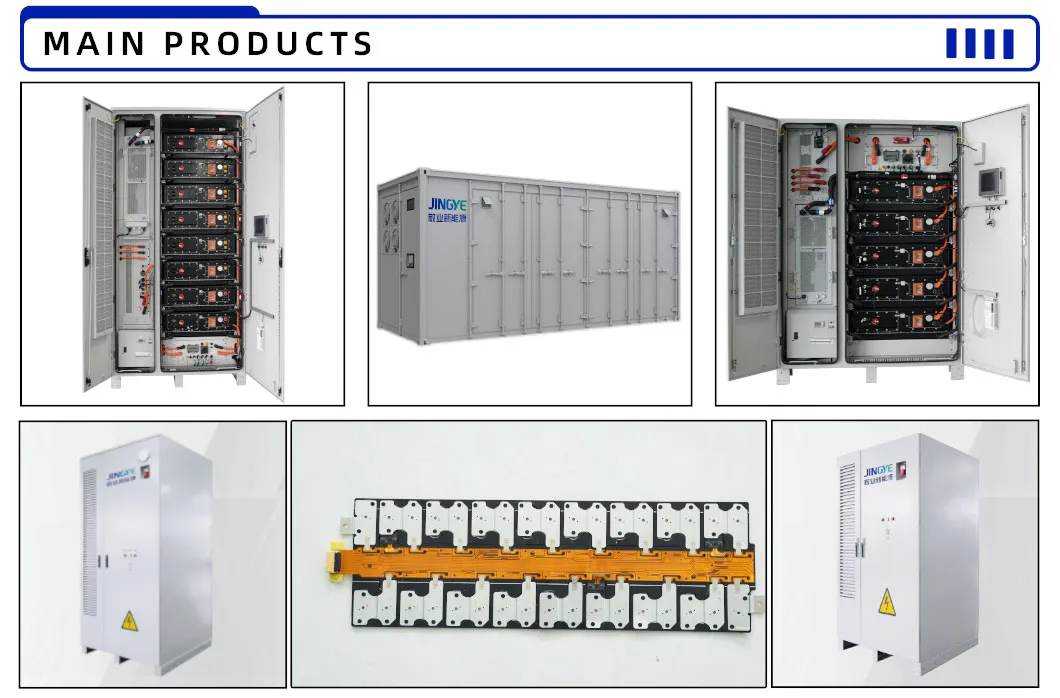

Our automated production line has an annual capacity of 5 GWh of energy storage systems and 2.4 million CCS busbars. These products are widely used in smart grids, wind/solar power, industrial storage, and green transportation globally.
