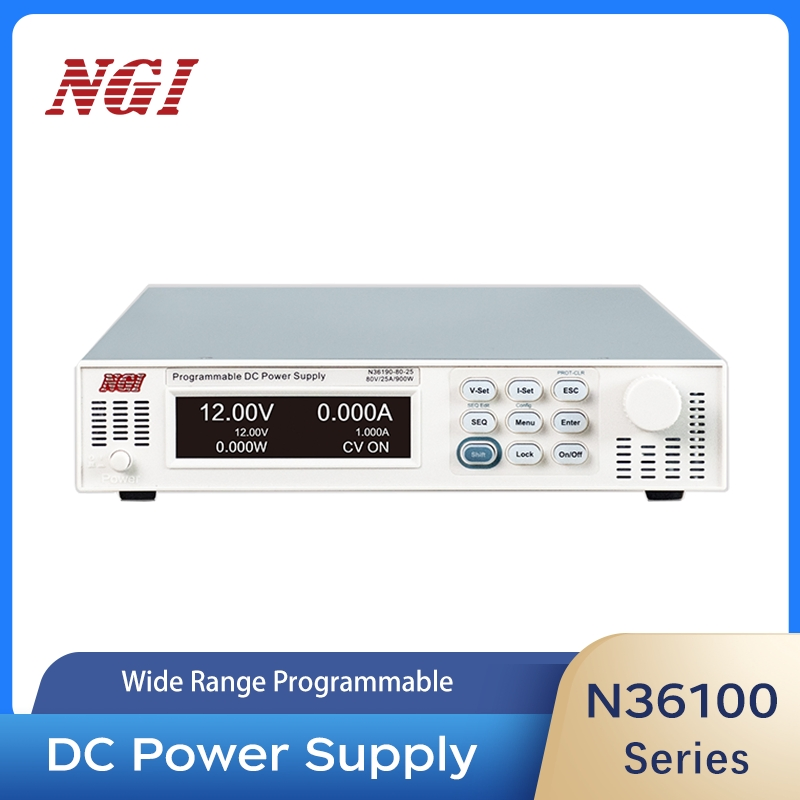

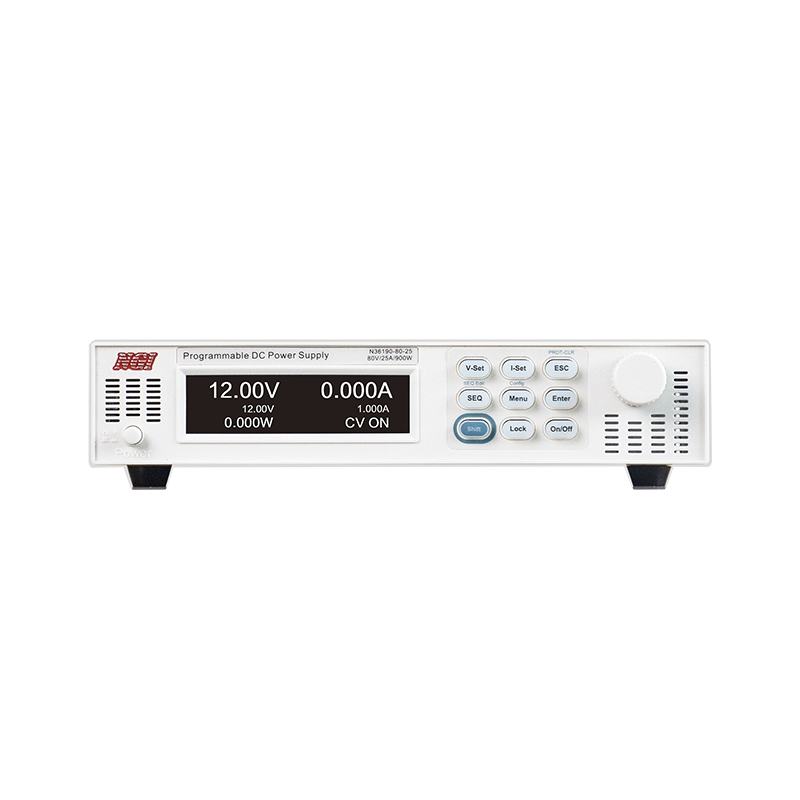

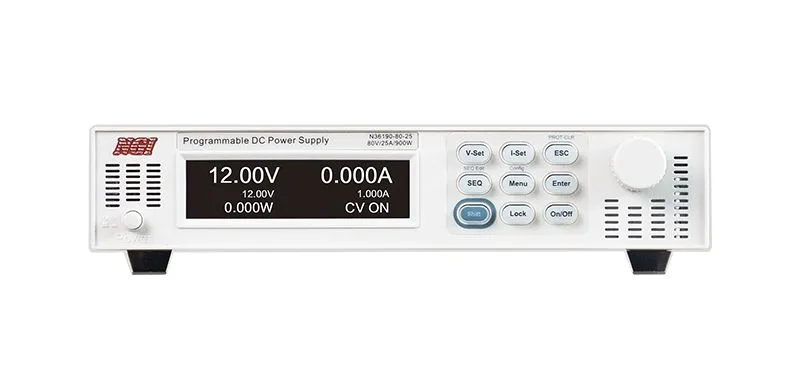

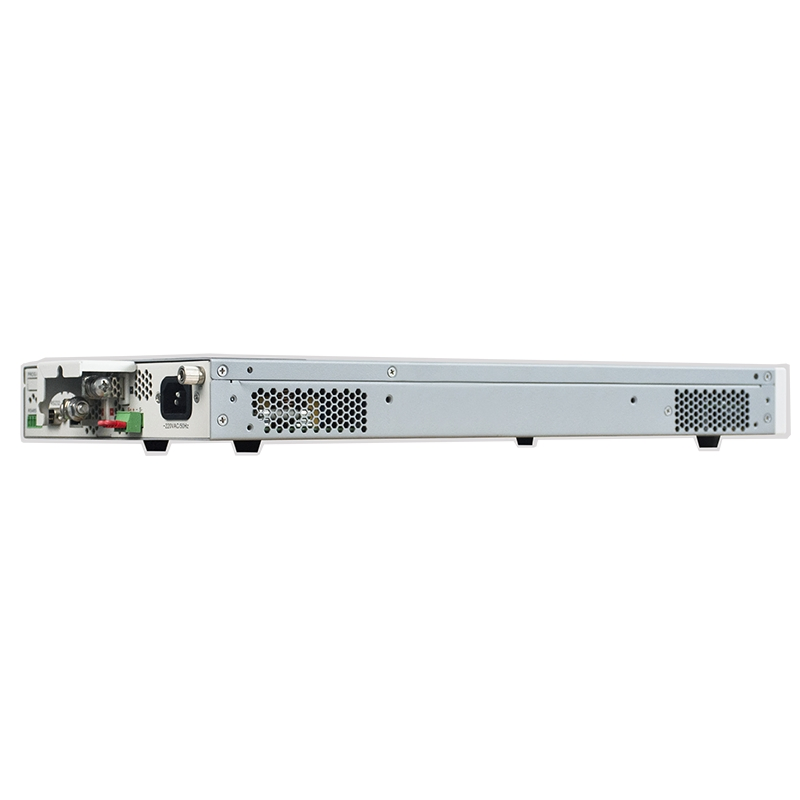

500W 40V 50A Industrial Grade DC Power Supply Unit N36150-40-50 for Manufacturing and Testing Equipment

1 / 5

500W 40V 50A Industrial Grade DC Power Supply Unit N36150-40-50 for Manufacturing and Testing Equipment

Customization:	Available
After-sales Service:	DC Power Supply
Warranty:	Lab-Grade Linear DC Power Supply

Send Inquiry

Product Description

📋

Basic Specifications

Model NO.N36150-40-50

Sense ModeFour Wires Remote Sense

DisplayOLED Screen

Voltage0-300V

Current0-50A

Power0-900W

ProtectionOCP, OVP, OTP, OPP

InterfaceLAN/RS232/RS485/CAN

HS Code8504401990

OriginChina

💡

Product Description

The N36100 Series is a wide range programmable DC power supply featuring an ultra-compact size, high performance, and high power density. Its 1U height and half 19-inch width design provide a space-saving experience for both standalone use and integrated cabinet systems.

With a maximum output power of 900W, this series adopts wide-range designs to meet diverse application scenarios, including laboratory testing, system integration, and large-scale production line testing.

Model	Voltage	Current	Power	Resolution	Interface	Size
N36150-20-100	20V	100A	500W	1mV/10mA	LAN/RS232/RS485/CAN	1U
N36150-40-50	40V	50A	500W	1mV/1mA	LAN/RS232/RS485/CAN	1U
N36150-80-25	80V	25A	500W	1mV/1mA	LAN/RS232/RS485/CAN	1U
N36150-150-12	150V	12A	500W	10mV/1mA	LAN/RS232/RS485/CAN	1U
N36150-300-8	300V	8A	500W	10mV/1mA	LAN/RS232/RS485/CAN	1U
N36190-40-50	40V	50A	900W	1mV/1mA	LAN/RS232/RS485/CAN	1U

🚀

Key Features

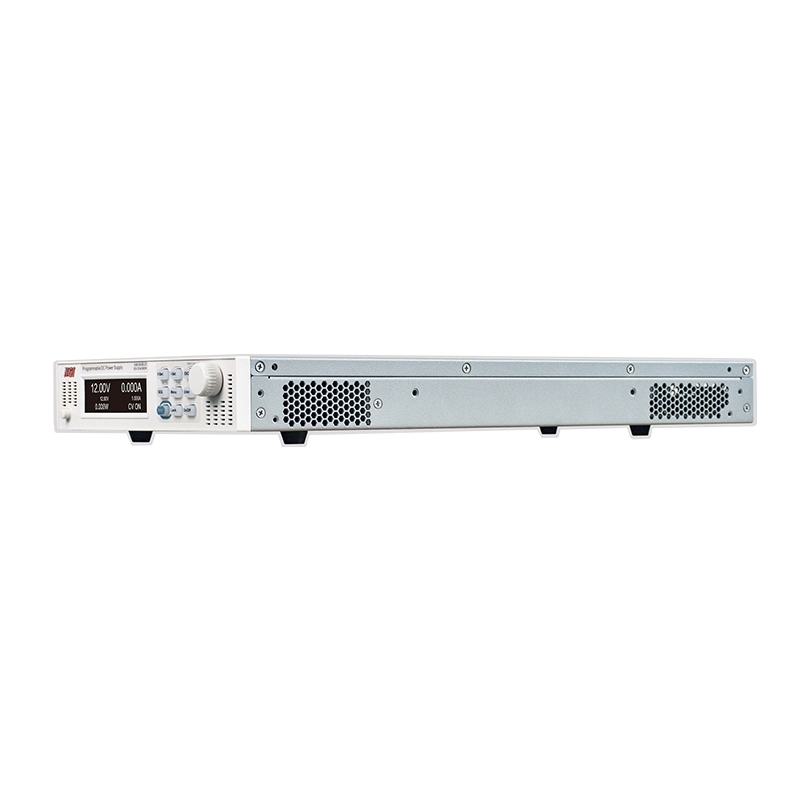

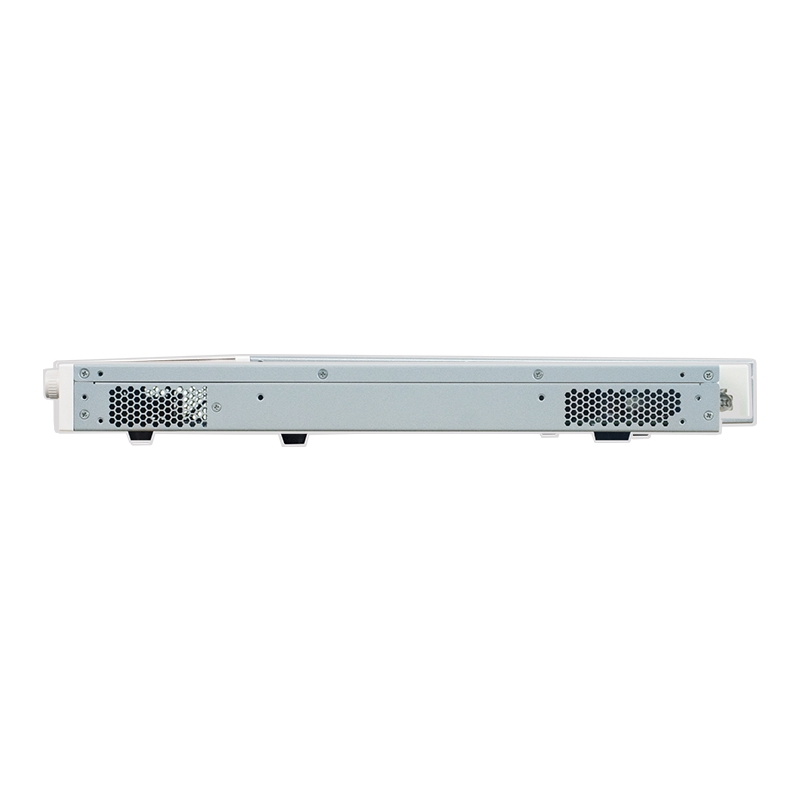

1U height + half 19-inch width design
Maximum output power: 900W
CC & CV priority function to protect DUT
SEQ test function up to 200 steps
Internal resistance simulation for batteries & fuel cells
Remote sense and analog programming control
Multiple protections: OVP, OCP, OPP, OTP, Short Circuit

🎯

Applications

R&D Laboratory Testing
Small DC Motor Testing
Automotive and Avionics Electronics
Industrial DC/DC Converters
ATE Test Systems

🔧

Functions & Advantages

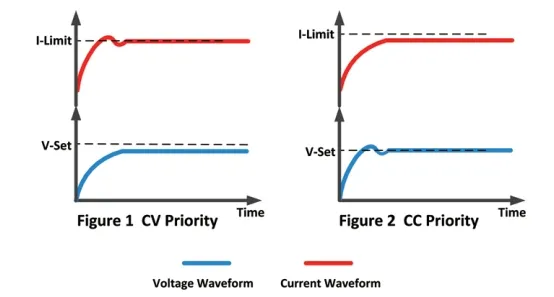

CC & CV Priority Function

Users can select the priority of the voltage-control loop or current-control loop. This allows the power supply to adopt the optimal test mode for different devices under test (DUT), effectively preventing voltage or current overshoot.

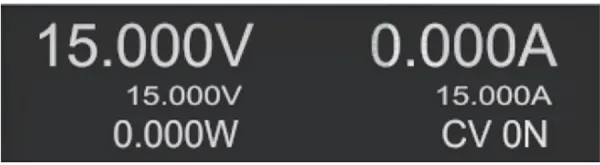

OLED High-Brightness Screen

The unit is equipped with an OLED screen that offers high brightness, luminous efficiency, and low power consumption in a compact form factor.

📊

Technical Data Sheet

Parameter	N36150-40-50	N36150-80-25	N36150-150-12	N36150-300-8
Voltage Range	40V	80V	150V	300V
Current Range	50A	25A	12A	8A
Setting Accuracy-Voltage	0.05%+0.05%F.S.
Voltage Ripple Noise	≤100mVp-p	≤150mVp-p	≤150mVp-p	≤200mVp-p
AC Input	Single phase, 220V AC±10%, 47Hz-63Hz
Net Weight	Approx. 3kg

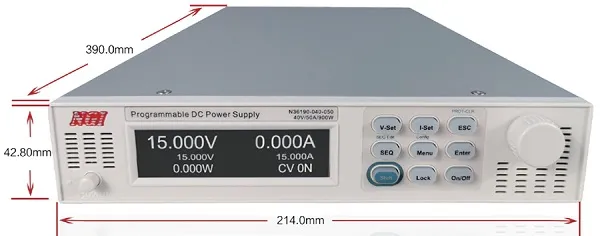

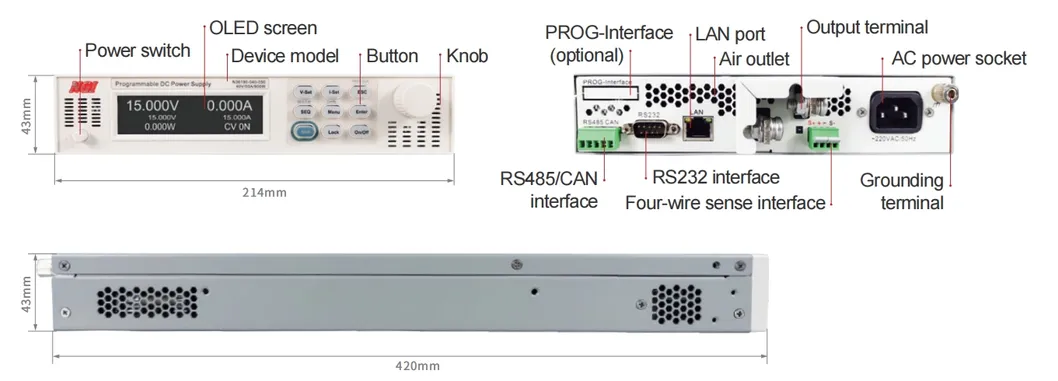

Dimension (mm)	1U, 42.80(H) * 214.00(W) * 390.00(D)

🖼

Detailed Visuals

❓

Frequently Asked Questions

1. What is the maximum power output of the series? The series offers models with a maximum output power of up to 900W, packed into a compact 1U height chassis.

2. Does it support remote voltage sensing? Yes, it supports Four-Wire Remote Sense mode to compensate for voltage drops in lead wires and ensure accurate delivery to the DUT.

3. What communication interfaces are provided? The power supply comes standard with LAN, RS232, RS485, and CAN interfaces for versatile system integration.

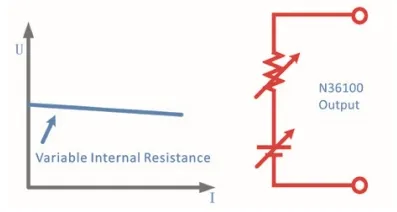

4. Can I simulate battery internal resistance? Yes, the internal resistance simulation function allows you to set specific resistance values to simulate secondary batteries, fuel cells, or supercapacitors.

5. What is the benefit of the CC & CV priority mode? It allows the user to prioritize either voltage or current control to eliminate overshoot, protecting sensitive components like low-impedance devices or LED loads.

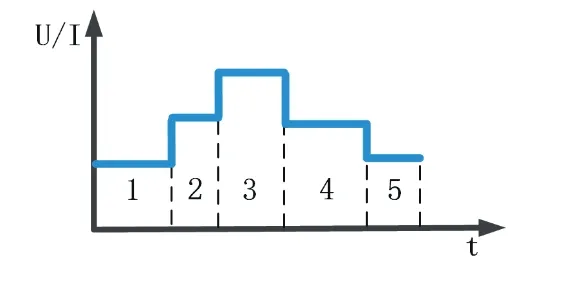

6. How many steps can be programmed in the SEQ function? The SEQ (Sequence) test function supports up to 200 programmable steps, allowing for complex testing profiles with defined voltage, current, and dwell times.
