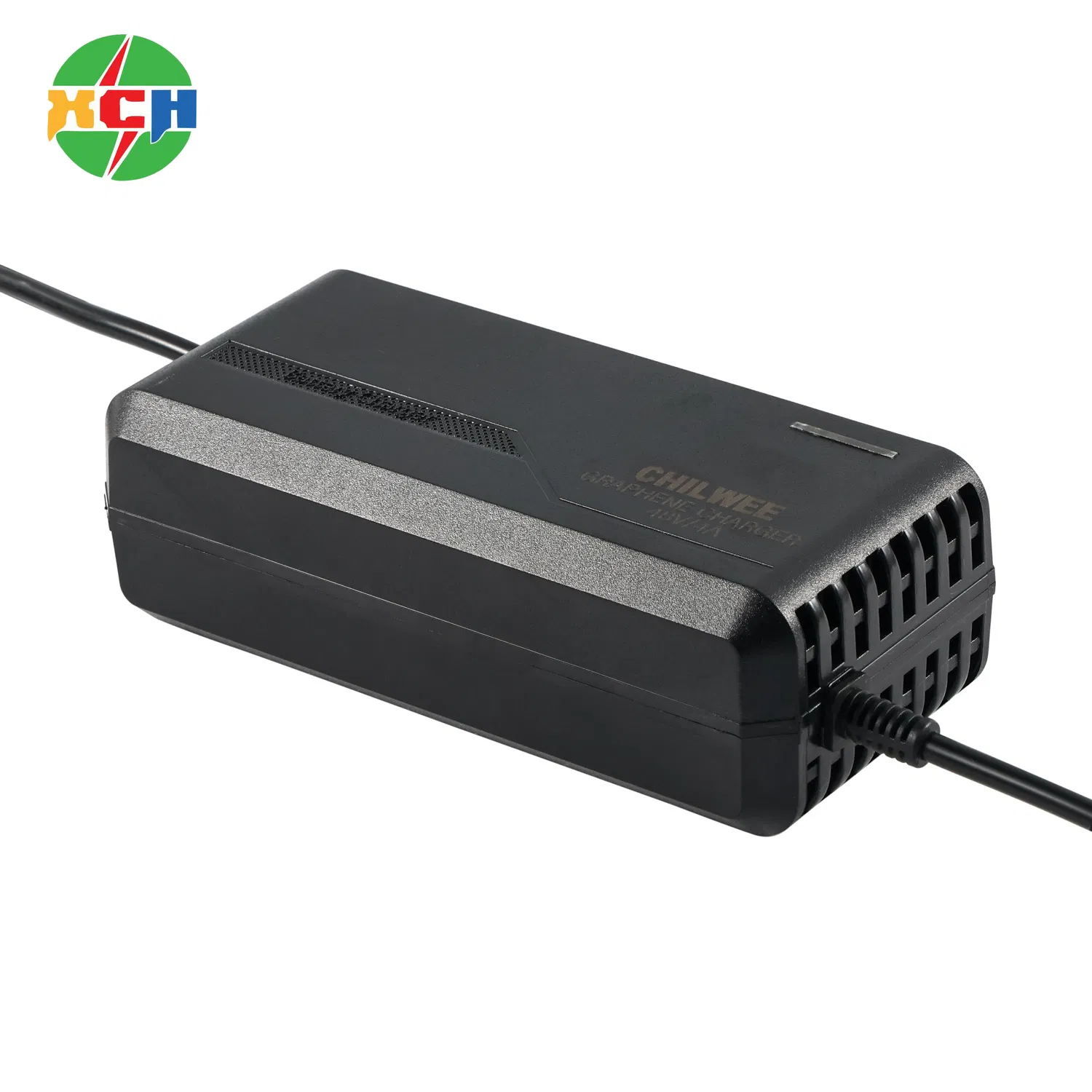

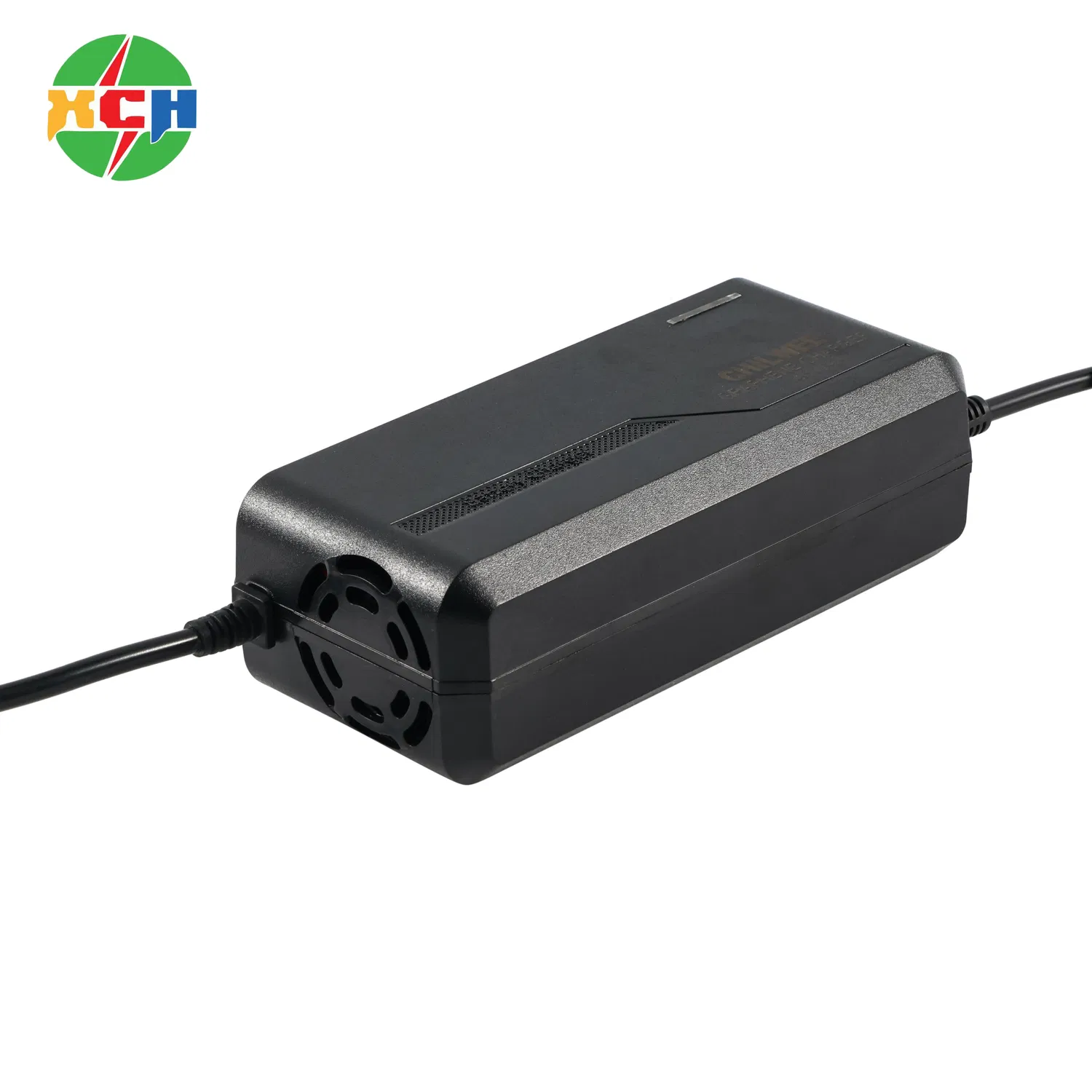

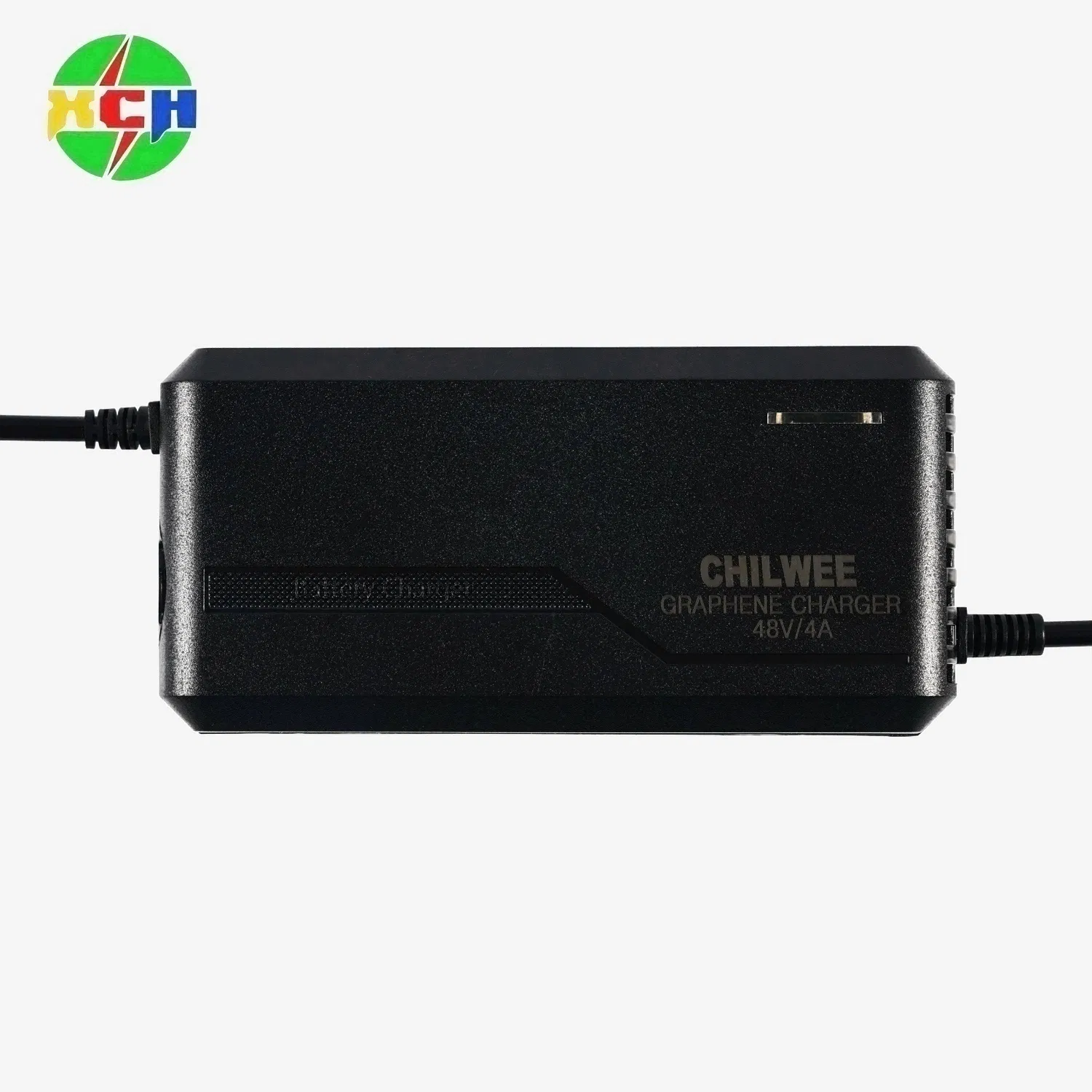

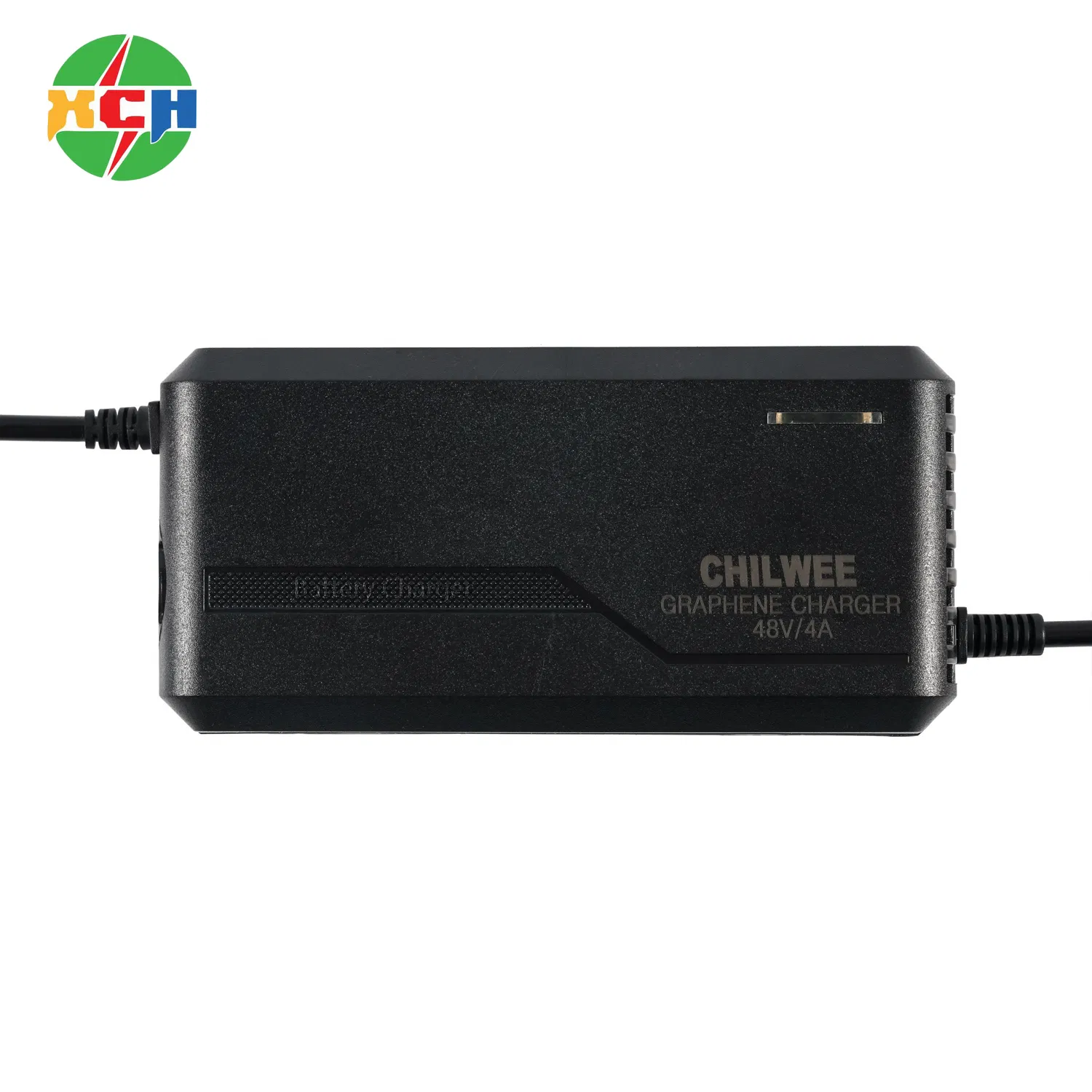

Vernon Charger
1 / 5
| Model NO. | 48V/ 4A |
| Application | Ebike, Emotorcycle, Escooter, Erickshaw |
| Nominal Voltage | 48V |
| Material | ABS+PC |

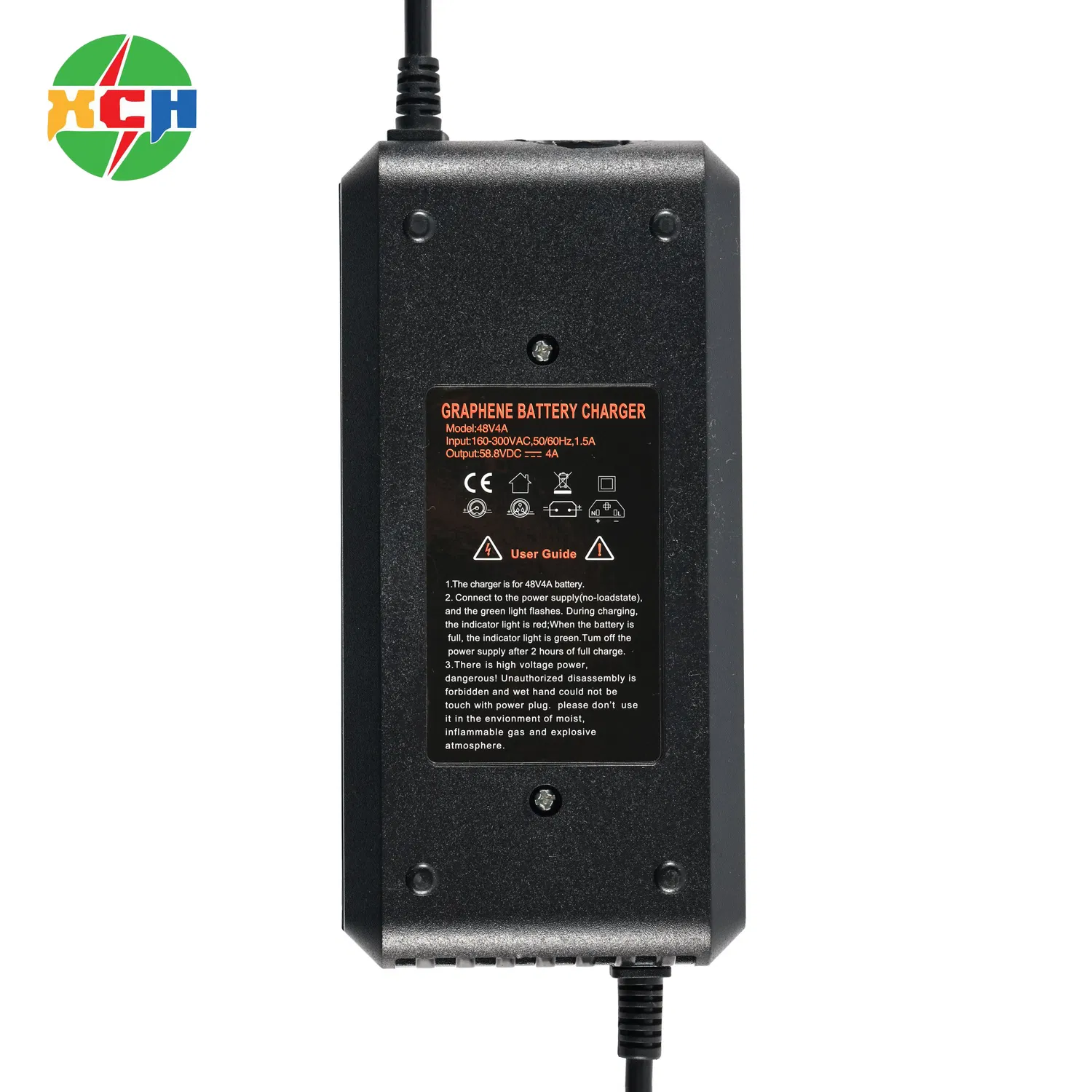

| Input Voltage | 160-300V AC, 50-60Hz |
| Rated Output | 58.8V±0.5V DC / 3.8A-4.0A |
| Efficiency | >87% |
| Certifications | SASO, KC, PSE, RoHS, TUV, CB, CE |
| Protections | Short Circuit, Reverse Connect, Temperature Protection |
Upgrade your charging experience with our graphene charger designed specifically for e-bikes, scooters, and other electric three-wheeled vehicles. This charger uses cutting-edge graphene technology for faster heat dissipation, higher efficiency, and longer battery life than traditional chargers.
Minimizes downtime with optimized energy flow and heat management.
Designed to withstand rigorous daily use with robust ABS+PC materials.
Works seamlessly with both lead-acid and lithium-ion batteries.
| No-Load Power | ≤3W |
| Output Ripple | ≤500mv P-P |
| Dielectric Strength | 3.75kv, Leakage Current <10mA |
| Working Temp | -10ºC to 50ºC |
| Working Humidity | 20% - 85% |
| Temperature Compensation | Yes |
| Zero Voltage Output | Yes |
