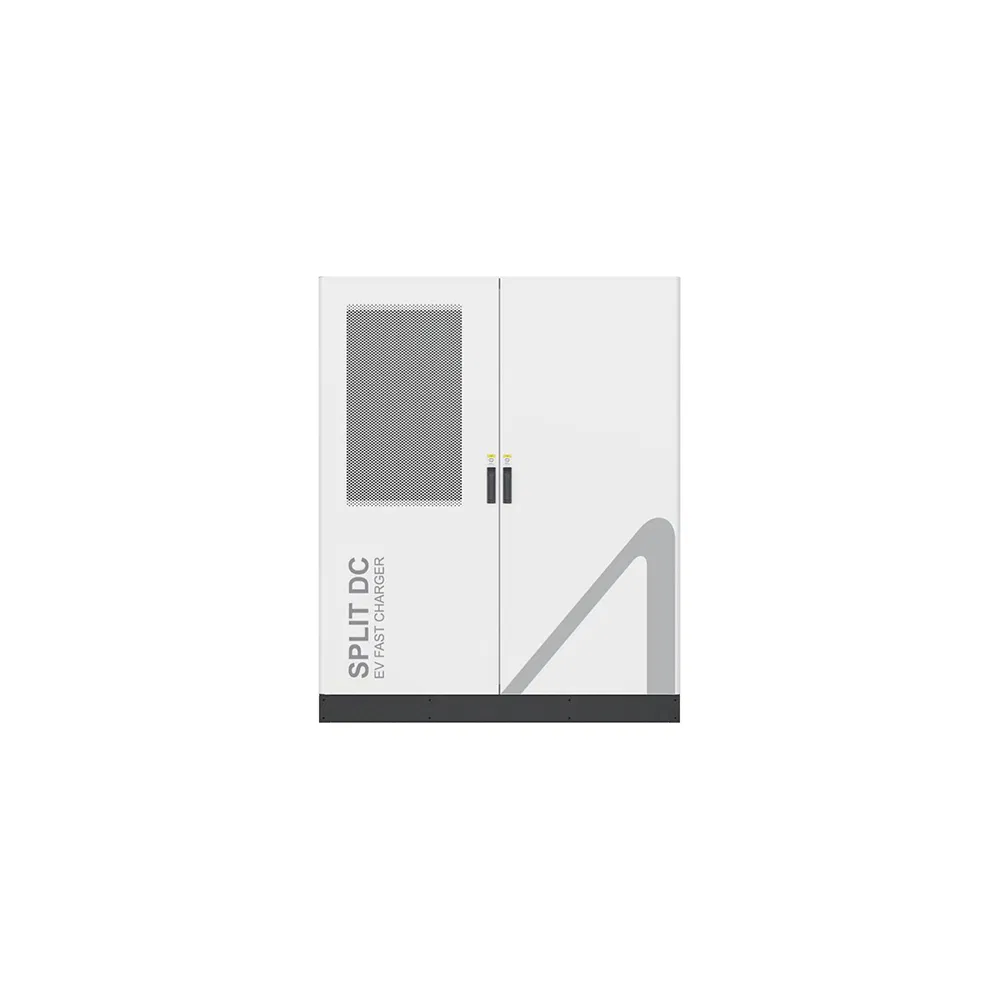

480kw Main Cabinet Split Type Fast DC Electric Car Charger New Energy Electric Vehicle Charging Pile EV Car Charging Station with Multi-Guns

1 / 5

480kw Main Cabinet Split Type Fast DC Electric Car Charger New Energy Electric Vehicle Charging Pile EV Car Charging Station with Multi-Guns

Customization:	Available
Connector Type:	CCS1, CCS2, CHAdeMO, GB/T
Installation:	Floor Type

Send Inquiry

Product Description

📊 Basic Information

Model NO.BHDC-BH-13A

Charging InterfacesMultiple Charges

Start ModeRFID, App, Credit Card

IP GradeIP54 IK10

Output Voltage200 - 1000VDC

Output Power480kW (Max 960kW)

ConnectorsCCS1, CCS2, CHAdeMO, GBT, NACS

ProtocolOCPP 1.6J

⚡ Product Introduction

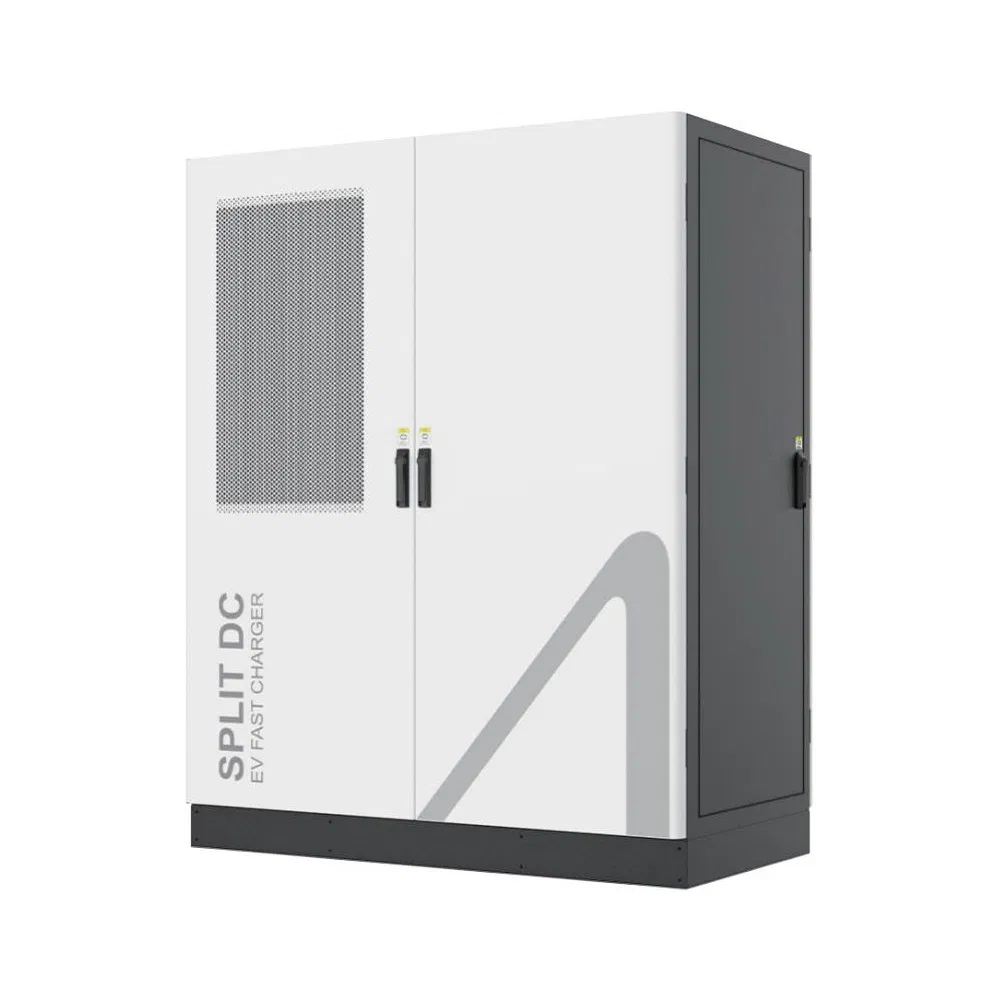

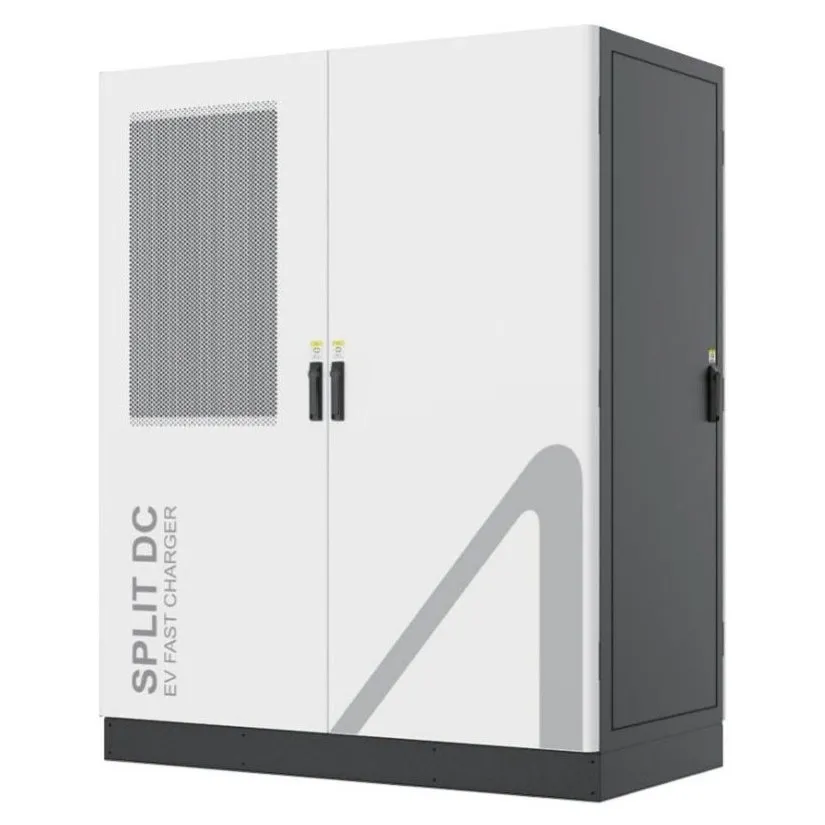

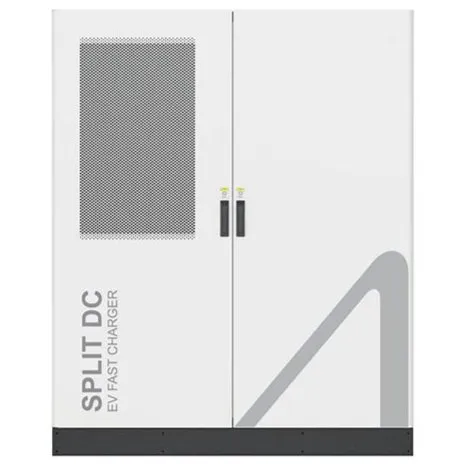

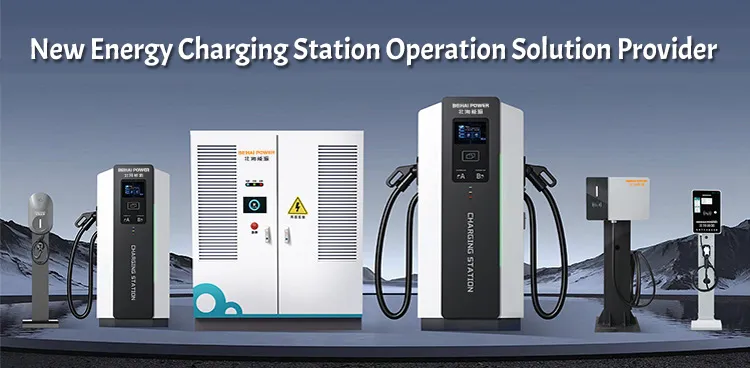

480kW EV MAIN CABINET: The rectifier cabinet can be configured with 12 single-gun charging terminals or 6 double-gun charging terminals, meeting the needs of 12 vehicles simultaneously. Suitable for commercial real estate, gas stations, public fast charging stations, and heavy truck charging.

🤝 Our Partners

📝 Technical Parameters

Category	Specifications	Data Parameters
Structure	Dimensions	1500mm x 800mm x 1850mm
	Weight	550kg
	Capacity	Up to 12 single gun charging stations
Electrical	Input Voltage	400VAC / 480VAC (3P+N+PE)
	Output Voltage	200 - 1000VDC
	Rated Power	480kW
	Efficiency	≥94% at nominal power
	Protocol	OCPP 1.6J
Environment	Temp Range	-30℃ to 55℃
Environment	Protection	IP54 \|\| IK10

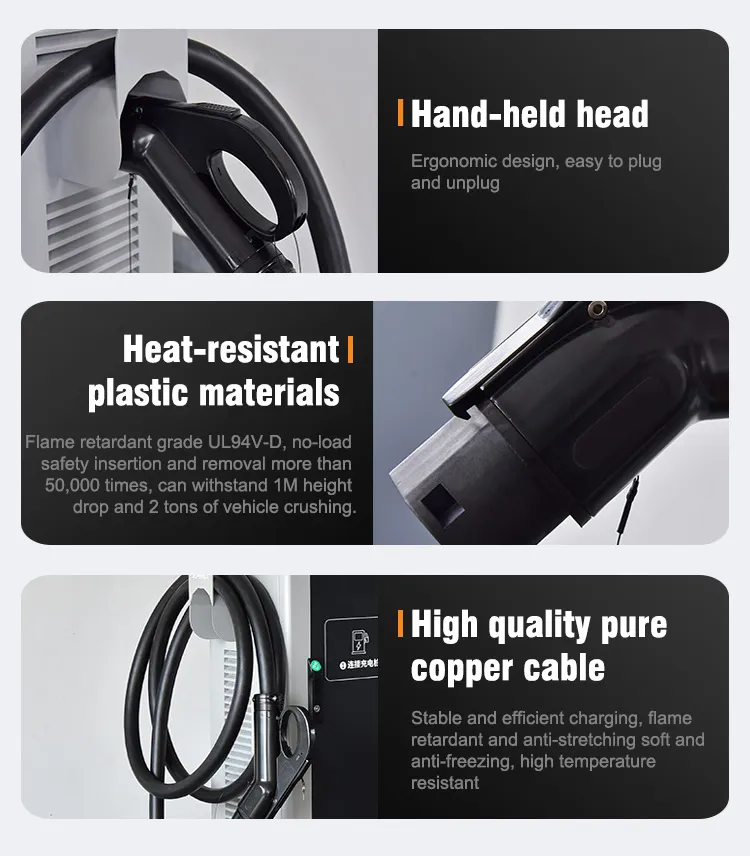

🌟 Product Features

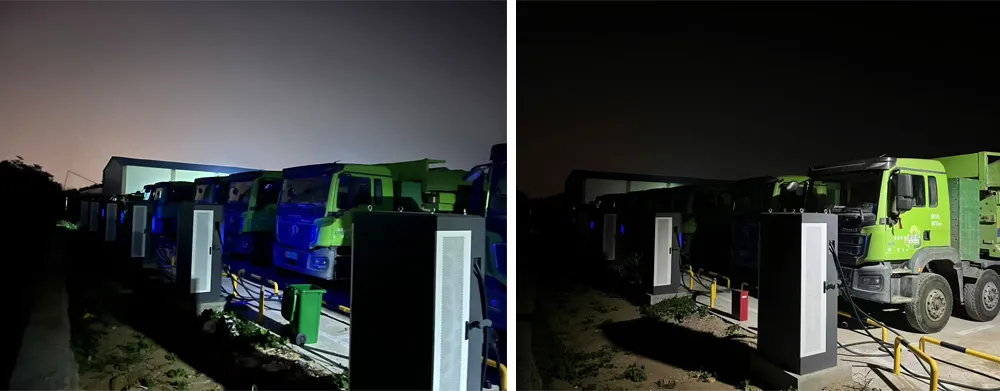

🌍 Application Scenarios

Public Charging: Urban parking lots, commercial centers.
Highway Stations: Fast charging for long-distance travel.
Logistics Parks: Dedicated charging for fleet management.
Enterprise Use: Charging services for employees and customers.

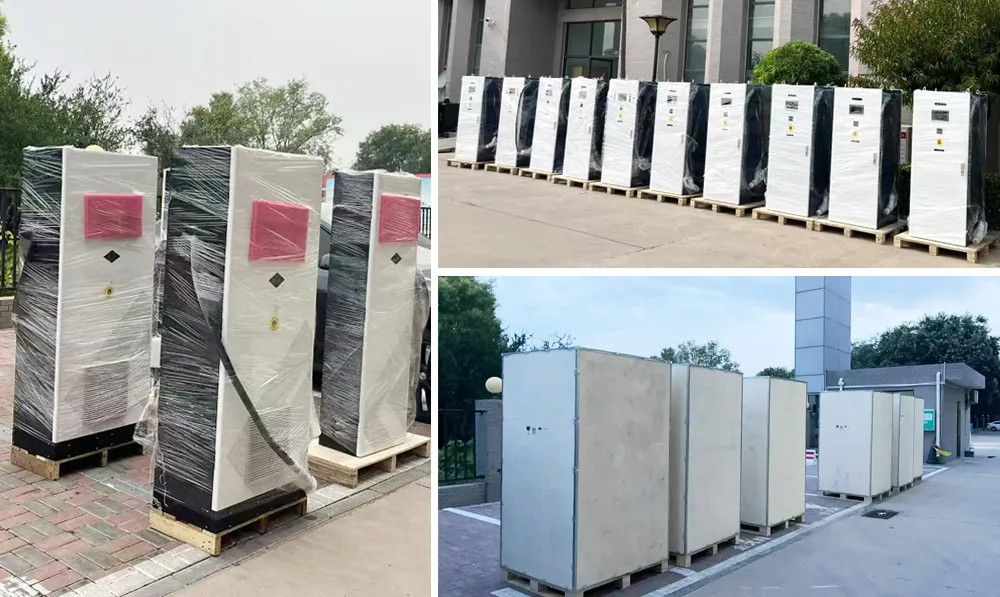

📦 Packaging & Shipping

Frequently Asked Questions

1. What is the maximum output power of this charging station?

The main cabinet provides a rated power of 480kW, but the system is flexible and can be configured between 240kW and 960kW depending on specific requirements.

2. How many vehicles can be charged at the same time?

The 480kW system can support up to 12 single-gun charging terminals or 6 double-gun terminals, allowing for simultaneous charging of multiple electric vehicles.

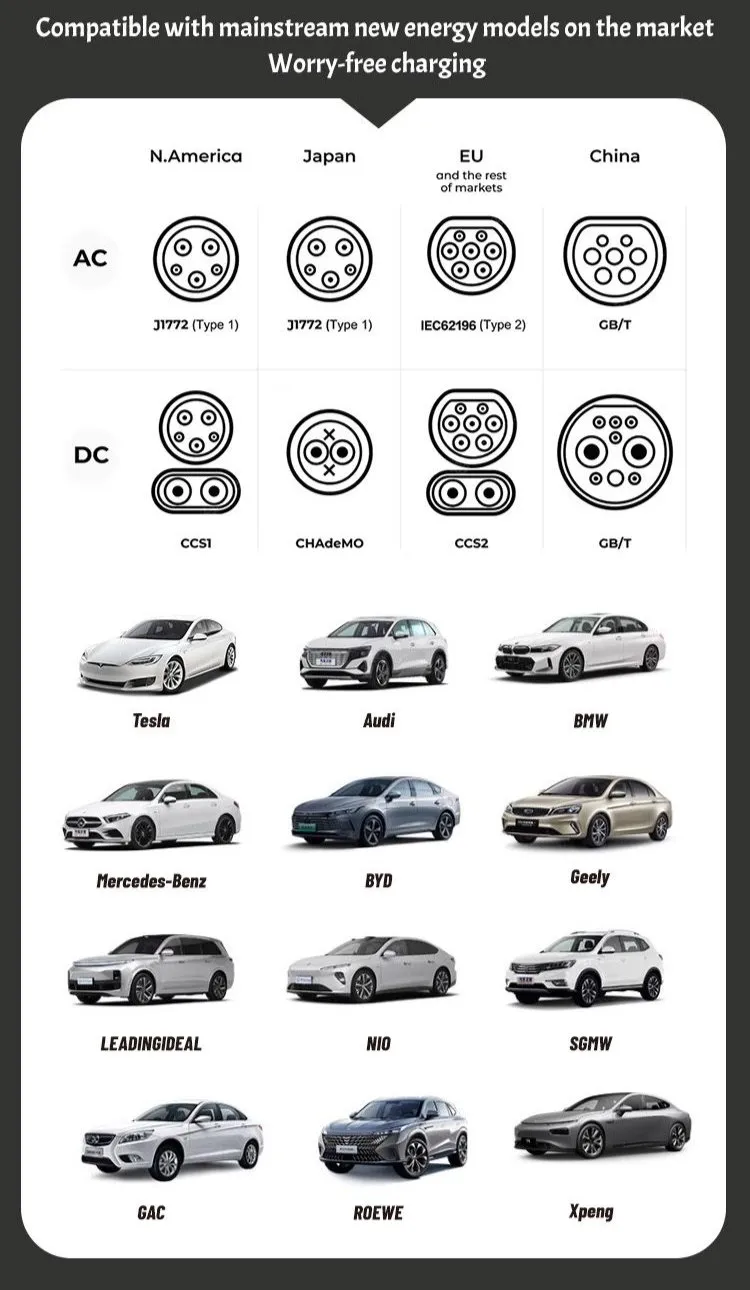

3. Which charging standards are compatible with this pile?

This charging station is highly versatile, supporting CCS1, CCS2, CHAdeMO, GB/T, and NACS connectors, making it compatible with almost all global EV models.

4. Can this unit be installed outdoors in harsh weather?

Yes, it features an IP54 and IK10 protection rating, ensuring it is waterproof and impact-resistant, suitable for outdoor operation in temperatures ranging from -30℃ to 55℃.

5. Does it support remote monitoring and management?

Absolutely. The station uses the OCPP 1.6J communication protocol and can connect via Ethernet or 3G/4G modems for mobile remote operation and management.

6. What safety protections are included?

The system includes comprehensive safety features such as overvoltage protection, lightning protection, overcurrent protection, leakage protection, and waterproof protection.
