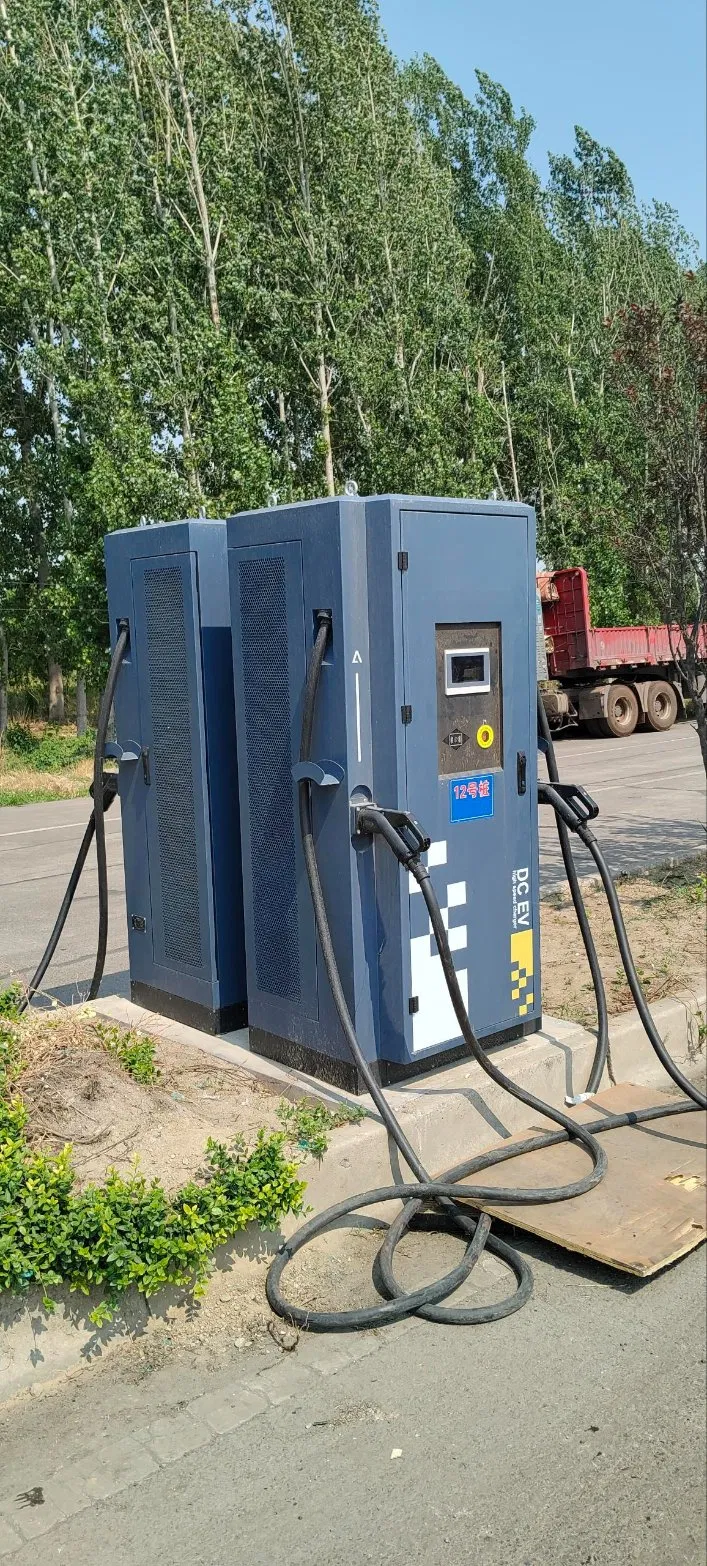

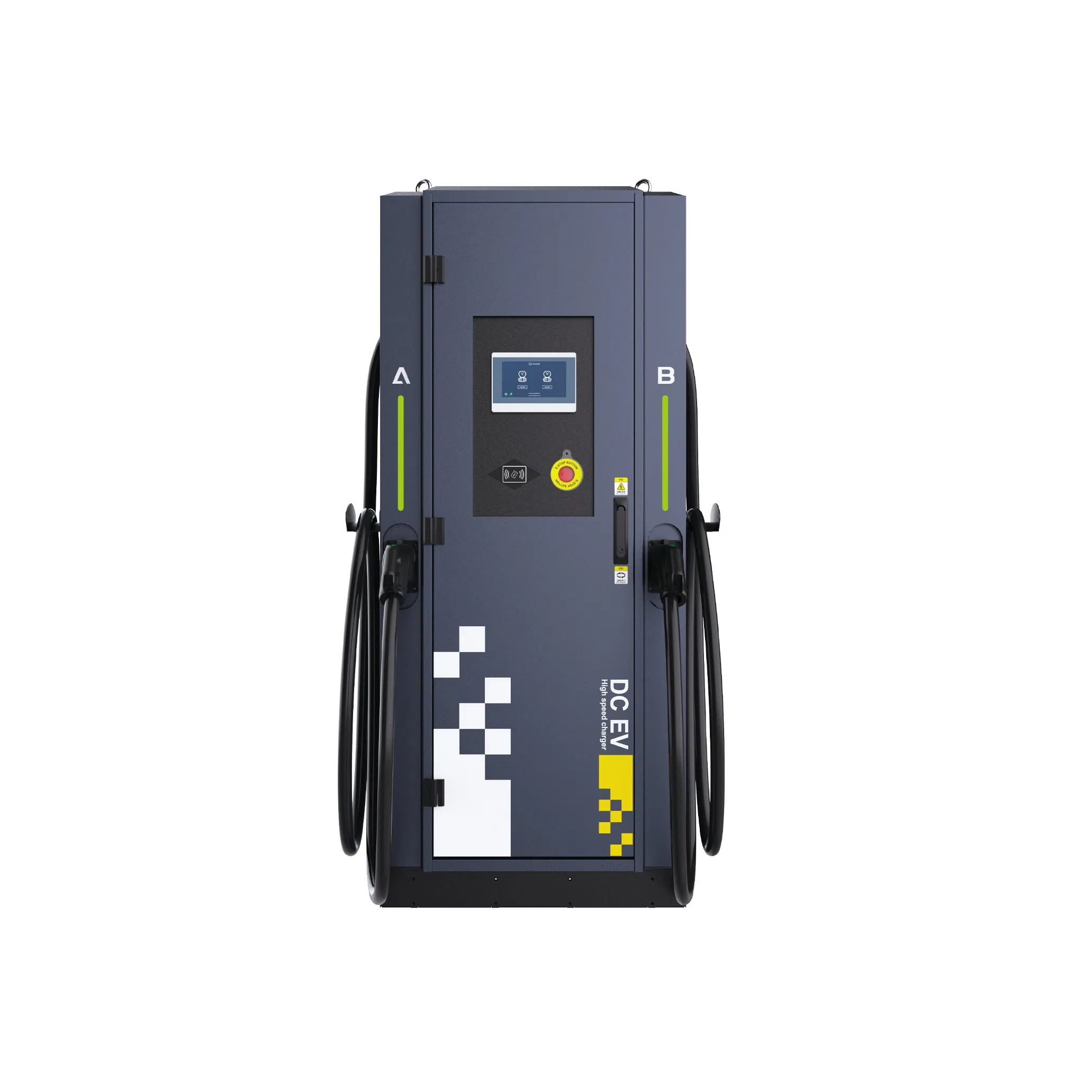

240kw DC Charging Station Designed for Electric Car Charging Networks Charger

Quick Overview

Model MS0BA-10A

Rated Power 240-480kW

Input Voltage 400VAC / 480VAC

Output Voltage 200 - 1000VDC

Interfaces Multiple Connectors

Protection IP54 / IK10

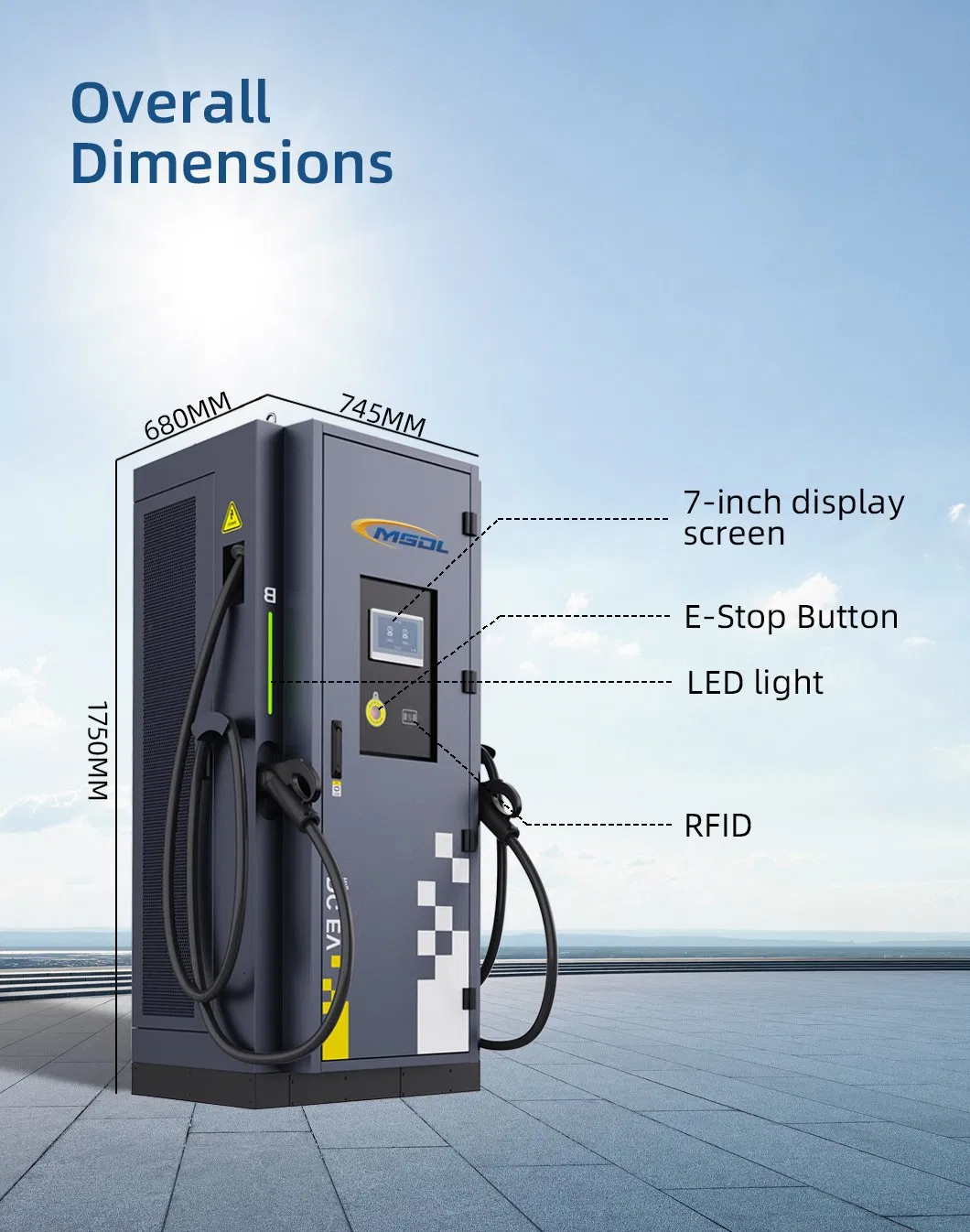

Dimensions 900mm x 700mm x 1900mm

Weight 440kg

Product Description

240kW-480kW High-Power Commercial/Heavy-Duty Truck Charging Station

The Next-Generation Ultra-High-Performance DC Charging Station is a milestone product designed for the accelerating electrification of commercial vehicles. It is more than just a charging device; it is a core power engine driving green transformation in logistics, engineering, and specialized operations.

Functional Aesthetics: The design features rugged, resolute styling with clean lines that exude industrial strength. Whether at highway supply stations, mines, or ports, it serves as a professional and reliable technological landmark.

Equipped with a forward-thinking modular architecture, this station includes 12 high-efficiency power module slots. Its scalability allows power to expand seamlessly up to 480kW, protecting your infrastructure investment from rapid obsolescence while supporting dual-gun technology for maximum efficiency.

Technical Specifications

Category		Parameter Details
Physical	Connectors	GBT, CCS2, CCS1, CHAdeMO, NACS
	Cable Length	5m - 7m
	Cooling	Air Cooled
Electrical	Efficiency	Peak efficiency ≥ 96%
	Power Factor	> 0.99
	Output Range	200 - 1000VDC / 1-600A
	Protocols	OCPP, YKC, Xiao Ju, and more
Interface	Display	7’’ LCD with touch screen
	Access Control	RFID (ISO/IEC 14443A/B), Optional POS
	Connectivity	WIFI, Ethernet, 3G/4G Modem
Environment	Temperature	-30°C to 75°C
Environment	Altitude	< 2000m

Frequently Asked Questions

What is the maximum charging power of this station?

This station supports a rated power of 240kW to 480kW, making it ideal for heavy-duty commercial vehicles and fast-charging networks.

Which electric vehicle connectors are supported?

It is highly versatile and supports multiple international standards including GBT, CCS1, CCS2, CHAdeMO, and NACS.

Can this station be used in extreme weather conditions?

Yes, it is designed to operate in temperatures ranging from -30°C up to 75°C and features an IP54 ingress protection rating.

Is the system modular for future upgrades?

Absolutely. The station features 12 high-efficiency power module slots, allowing for easy power expansion and scalability as your needs grow.

What safety protections are integrated into the unit?

The station includes comprehensive safety features such as overvoltage, lightning, overcurrent, leakage, and waterproof protection, along with a dedicated emergency stop button.

Does it support smart management and remote operation?

Yes, it supports OCPP protocols, mobile remote operation, and can connect via WIFI, Ethernet, or optional 4G modems.
