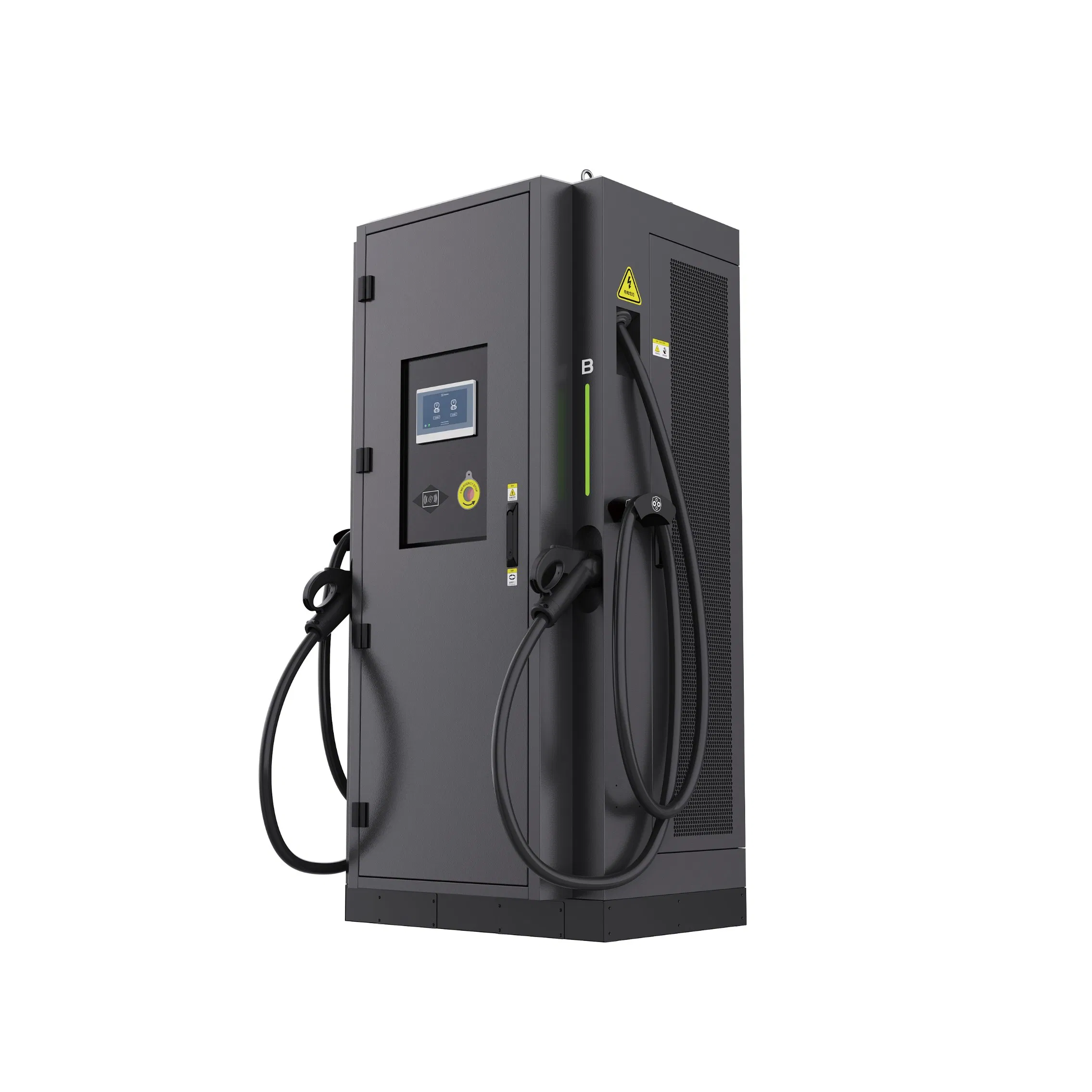

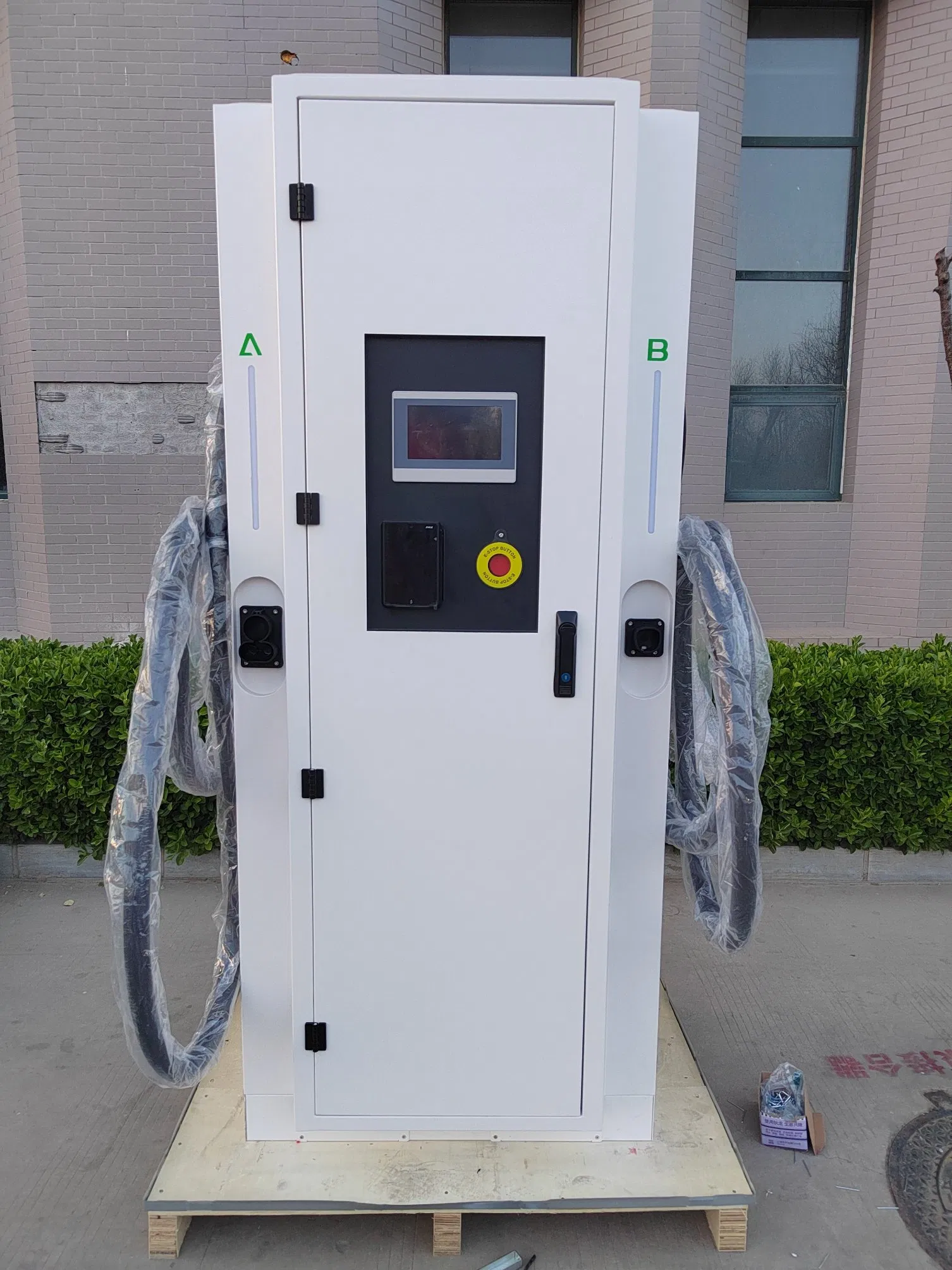

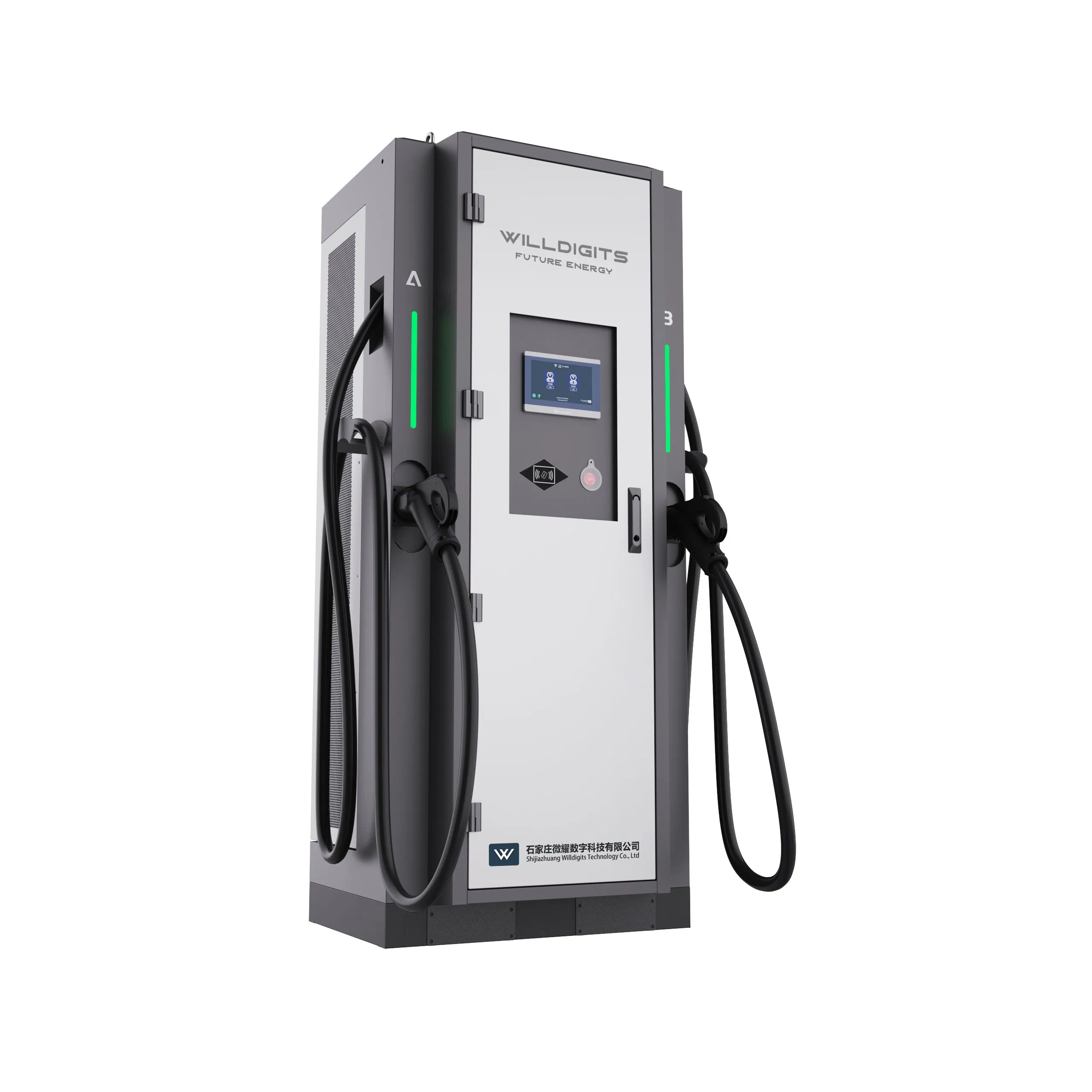

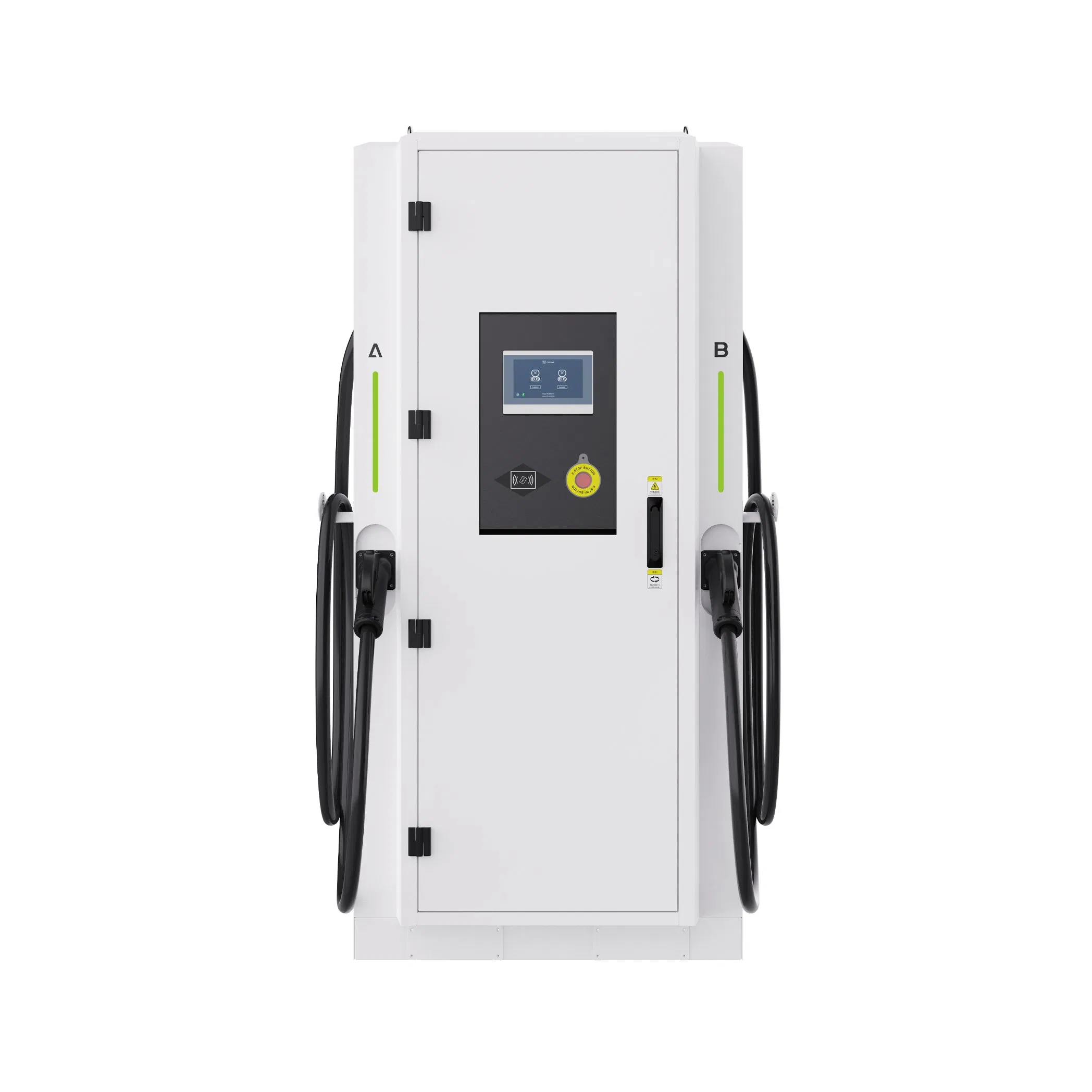

Vernon Charger
1 / 5
| Model NO. | MS08A-10A |
| Location | Public Use |
| Number of Charging Interfaces | One Pile with Multiple Charges |
| Start Mode | Credit Card Payment, Mobile Remote Operation, RFID Authentic |
| Dimensions (L X D X H) | 900mm X 700mm X 1900mm |
| Weight | 440kg (Wall-Mounted) |
| Charging Cable Length | 5m-7m |
| Connectors | Gbt, CCS2, CCS1, Chademo, Nacs |
| Input Voltage | 400VAC / 480VAC (3P+N+PE) |
| Input Frequency | 50/60Hz |
| Output Voltage | 200 - 1000VDC |
| Output Current | 1-600A |
| Rated Power | 240-480kW |
| Cooling System | Air Cooled |
| Operating Temp | -30°C to 75°C |
| Ingress Protection | IP54 IK10 |

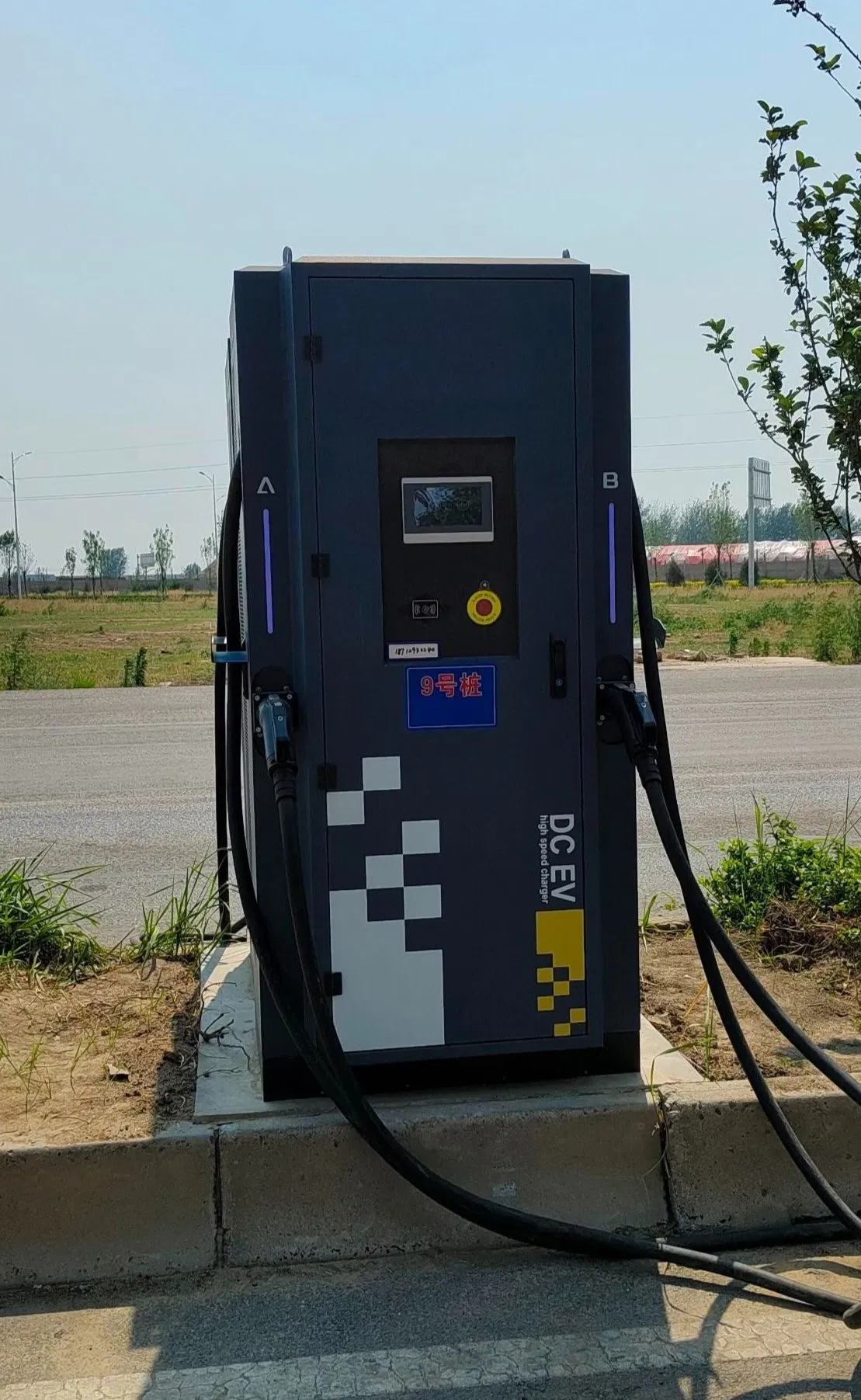

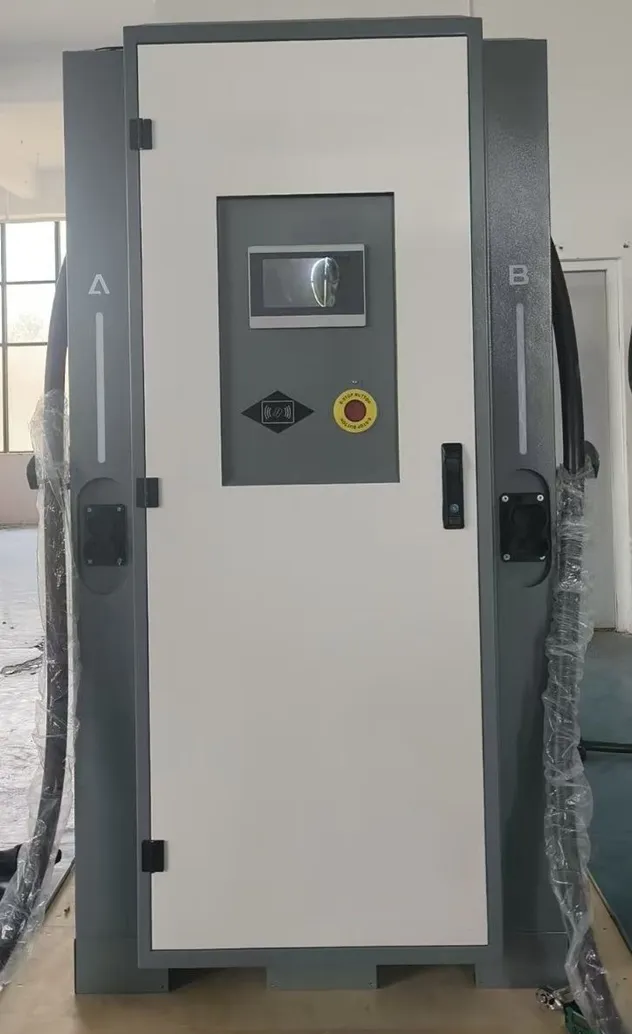

The next-generation ultra-high-performance DC charging station is designed to meet the growing demand for heavy-duty electrification. It serves as a core power engine for logistics, engineering, and specialized operations.
Functional Aesthetics: The unit features a bold, steady form with clean, sharp lines and distinct angular contours that exude industrial strength. It provides outstanding physical protection and reliability in complex environments like highway supply stations, mines, and ports.

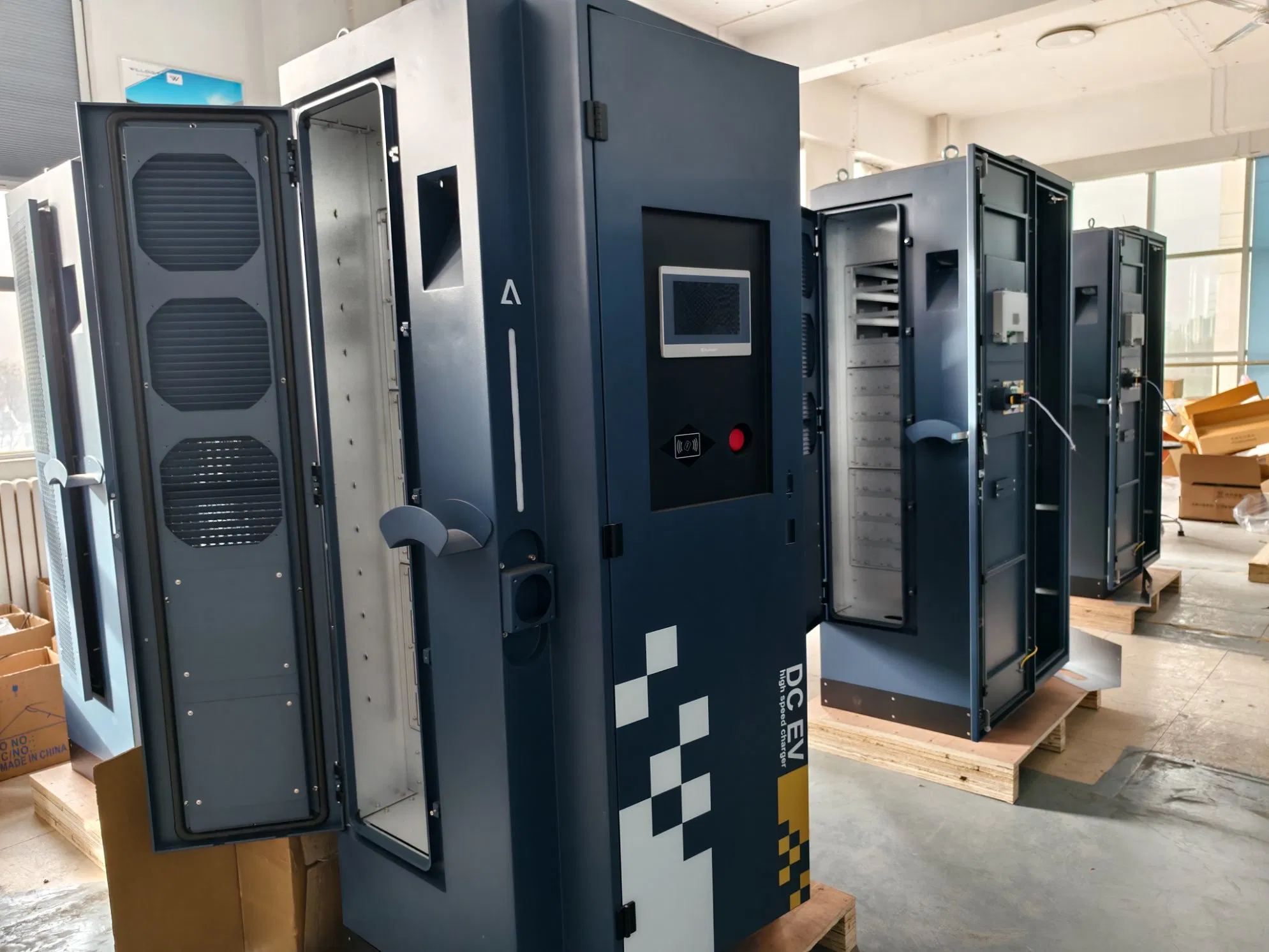

Modular Architecture: Built with a forward-thinking modular design, it includes 12 high-efficiency power module slots. The capacity is highly scalable, allowing expansion up to an impressive 480kW to protect your investment and adapt to future needs.
| Category | Feature | Details |
|---|---|---|
| Structure | Dimensions | 900mm x 700mm x 1900mm |
| Weight | 440kg | |
| Cable Length | 5m - 7m | |
| Connectors | GBT, CCS2, CCS1, CHAdeMO, NACS | |
| Electrical | Input Voltage | 400VAC / 480VAC (3P+N+PE) |
| Output Voltage | 200 - 1000VDC | |
| Rated Power | 240-480kW | |
| Peak Efficiency | ≥96% | |
| Interface | Display | 7’’ LCD Touch Screen |
| Access Control | RFID (ISO/IEC 14443A/B) / POS Optional | |
| Communication | WIFI / Ethernet / 4G Modem | |
| Environment | Temp Range | -30°C to 75°C |
| Protection | IP54 | IK10 |
