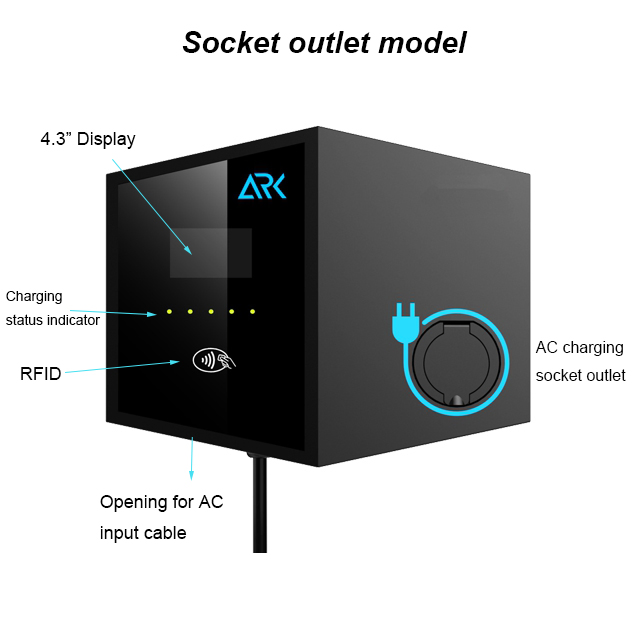

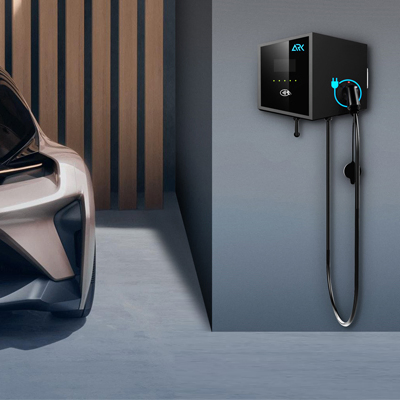

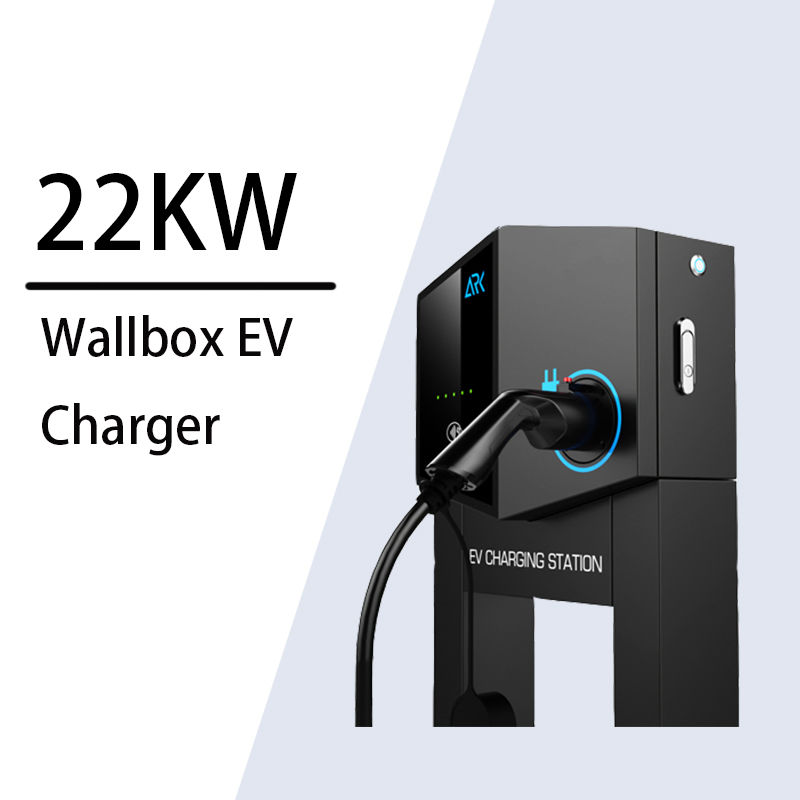

22kw Type2 Wall-Mounted AC 3 Phase Charging Unit for Electric Vehicles

Overview & Basic Info

Model NO.

EV22

Ocpp

Ocpp1.6j Supported

Screen

7 Inch Touch Screen

Protection Grade

IP54, IK10

Charging Type

Mode 3

Charging Standard

IEC 61851-1, IEC 61851-23, Chademo

Type

Fast EV Charging Station

Certification

CE, TUV

Warranty

12 Months

Production Capacity

1000 Units Per Month

Product Description

Product Parameters

Category	Feature	Specifications
Structure	Application scenes	Commercial/Public charging station
	Housing material	Metal case
	Dimension	300450160mm (Wall), 1200450160mm (Pedestal)

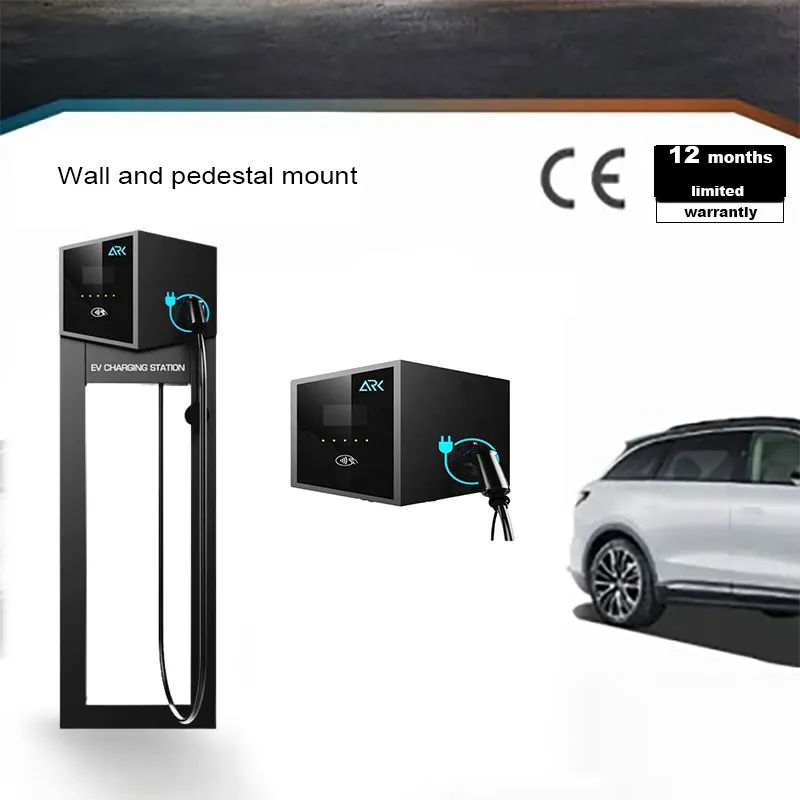

	Installation method	Wall-mount, Pedestal-mount (optional)
	Cable routing	Bottom inlet, bottom outlet
	Weight	N.W.: 11kg
	Cable length	5m
Electrical	Input Voltage	400Vac +/-10%, 3-phase
	Frequency	50Hz/60Hz
	Output Voltage	400Vac +/-10%, 3-phase
	Output Current	32Adc
	Efficiency	≥ 95%

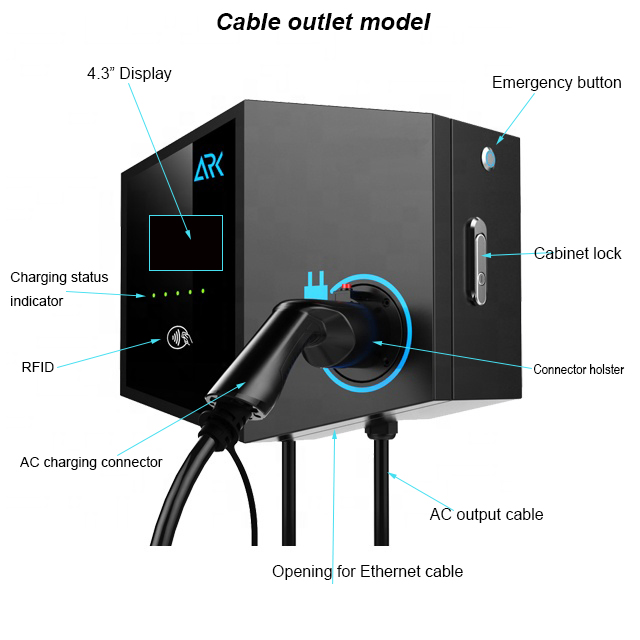

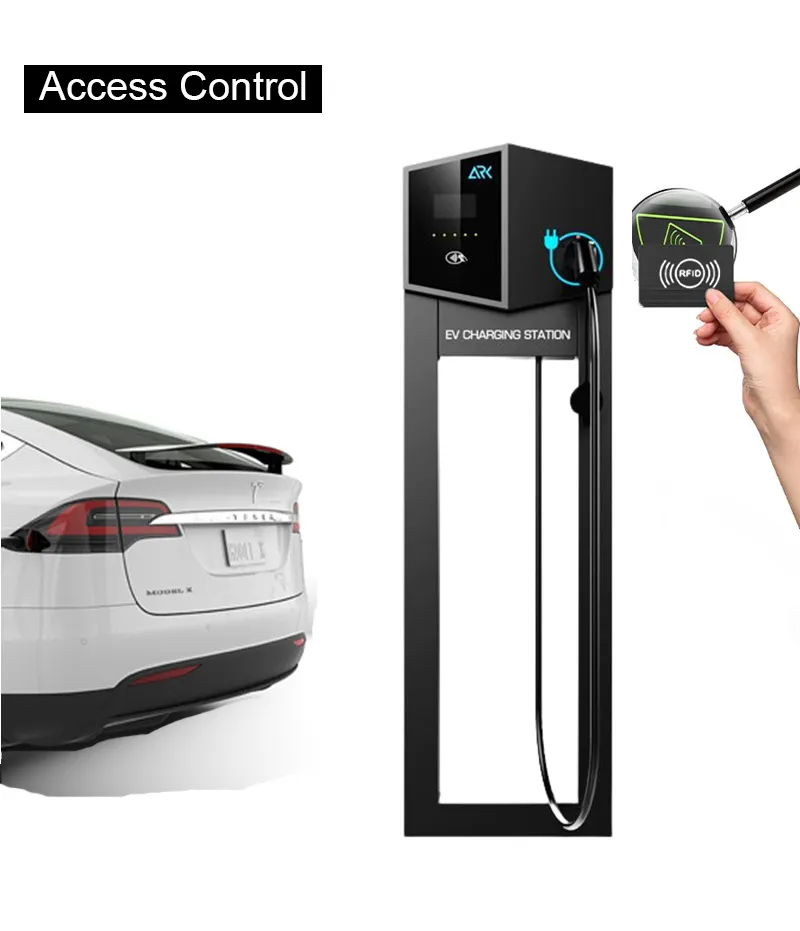

Function	User interface	RFID, LCD Display

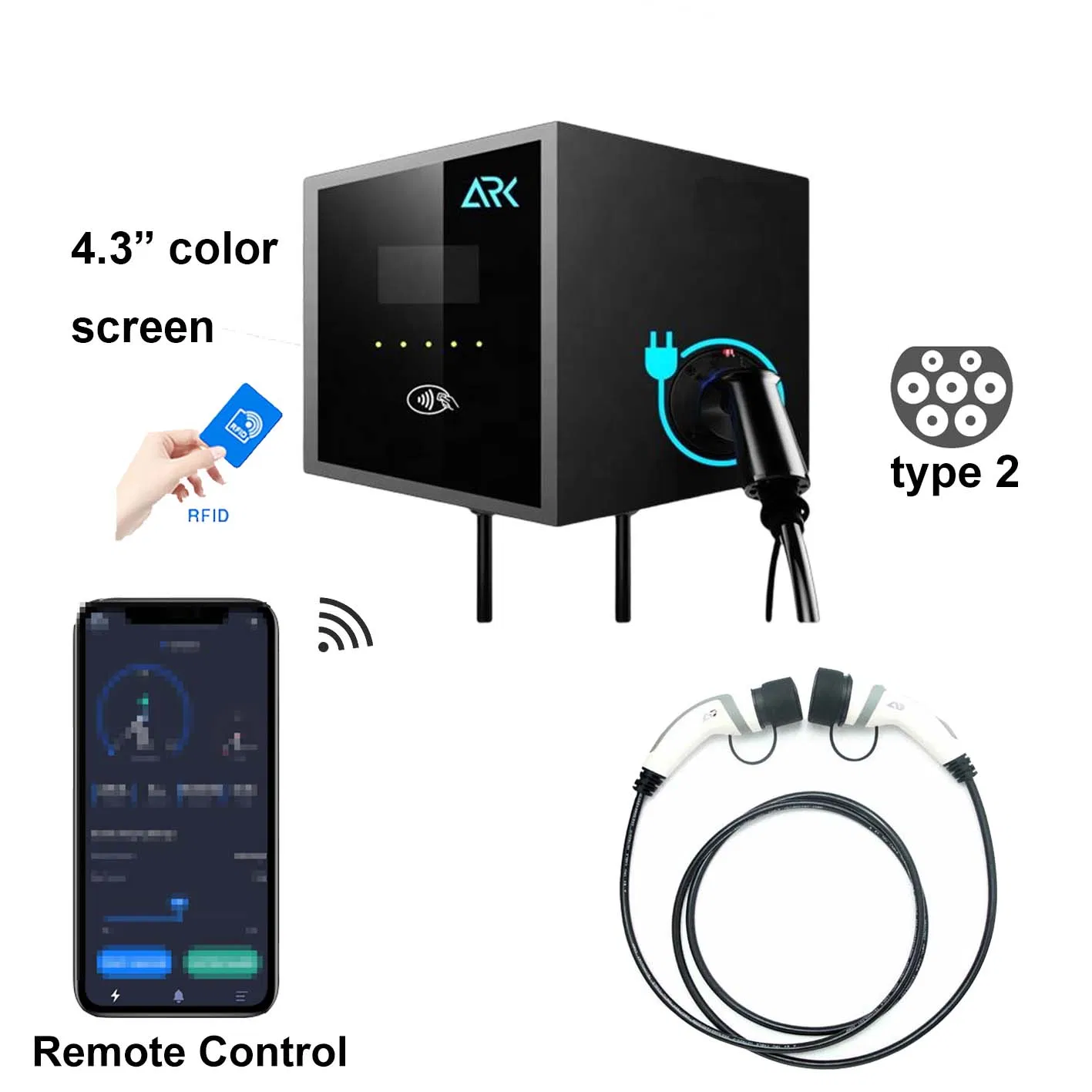

	Standards	IEC 62196 Type-2

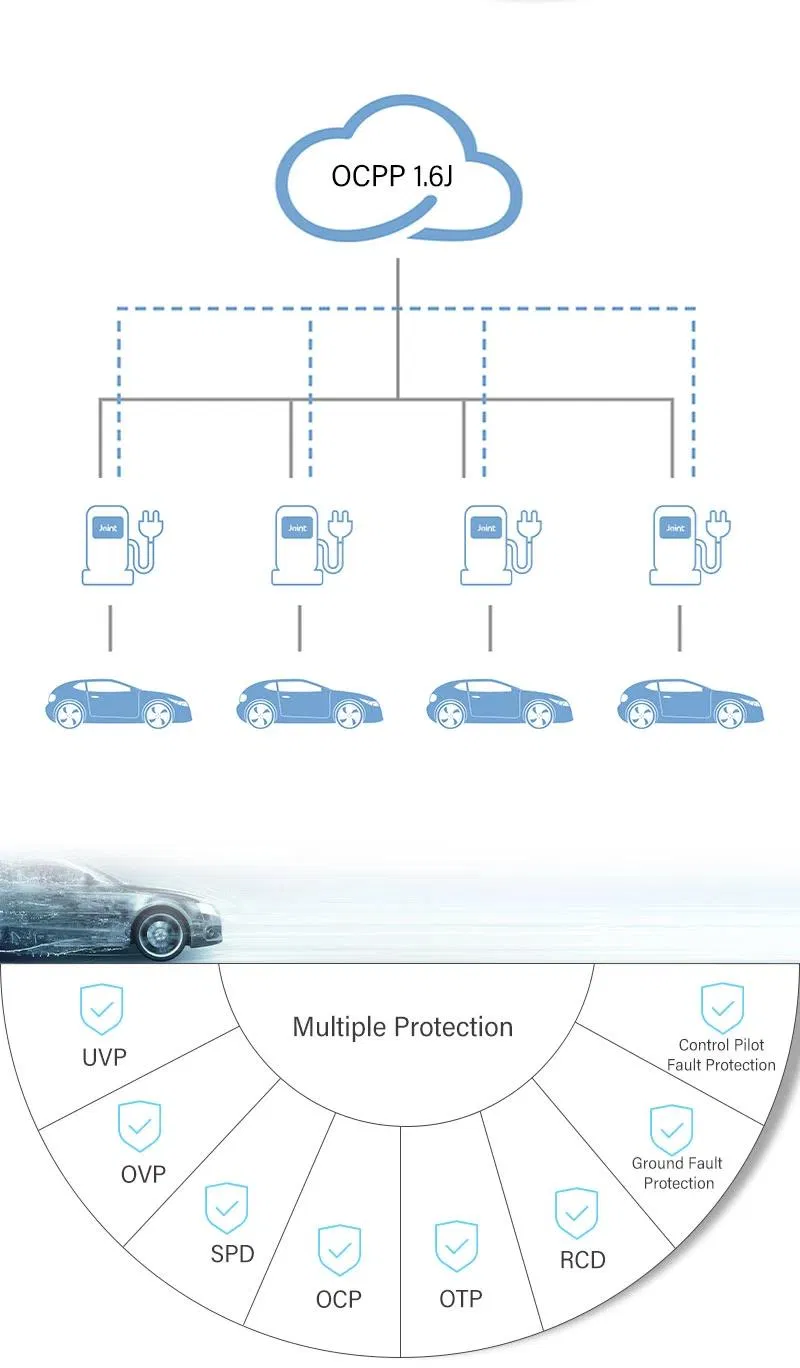

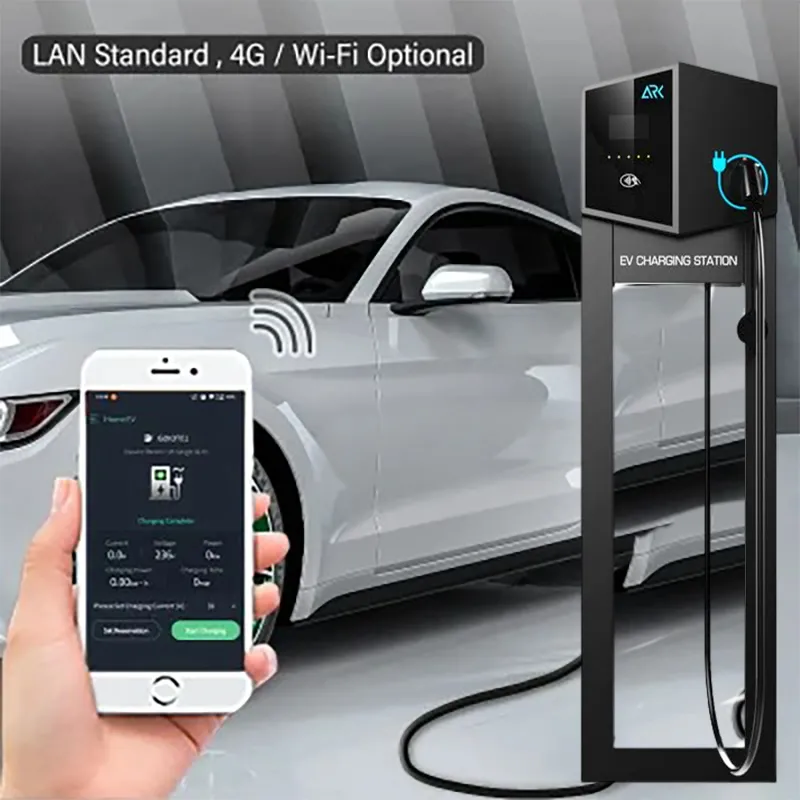

	Communication	PWM, Ethernet, LTE, OCPP 1.6J
Environment	Working Temp	-25°C to +50°C
	Protection Grade	IP55
	MTBF	100,000 hours
	Safety Design	Over/under voltage, overload, leakage, grounding, over temp, surge protection

Industrial Excellence

Packaging & Shipping

Frequently Asked Questions

Why choose our EV Charger solutions?

We provide a professional technical team with a long-term industry vision. Our products offer a wide range of options including various charging standards, international standardization designs, and smart back-end services. All products undergo rigorous laboratory and field testing.

What is your experience in overseas projects?

We are pioneers in overseas charger implementation. Our history includes cooperation with major power companies for PV system integration, installing DC fast chargers along major highways in North America, and supporting major automaker fleets with DC charging services.

What are the main advantages of these chargers?

Our chargers feature telecom-level product design, support for multiple standards (CCS-1/2, CHAdeMO, GB/T), wider voltage ranges, better temperature adaptation, and advanced modular design for long-term technical foresight.

Can you explain global DC fast charging standards?

There are 5 main standards:
- CCS-1: North America (e.g., Chevy Bolt).
- CCS-2: Europe (e.g., BMW i3, VW e-Golf).
- CHAdeMO: Japan (e.g., Nissan Leaf).
- GB/T: China (e.g., BYD, BAIC).
- Tesla: Proprietary standard for Tesla vehicles.

Does higher power always mean faster charging?

Not necessarily. Charging speed is often limited by the vehicle's battery management system. However, high-power chargers are significant because they can support dual connectors to charge two vehicles simultaneously and provide future-proofing as battery technology improves.

How is after-sales support handled?

We provide comprehensive technical training through manuals and videos to help customers master parts replacement and maintenance. For urgent situations, professional technicians are available to provide dedicated support.
