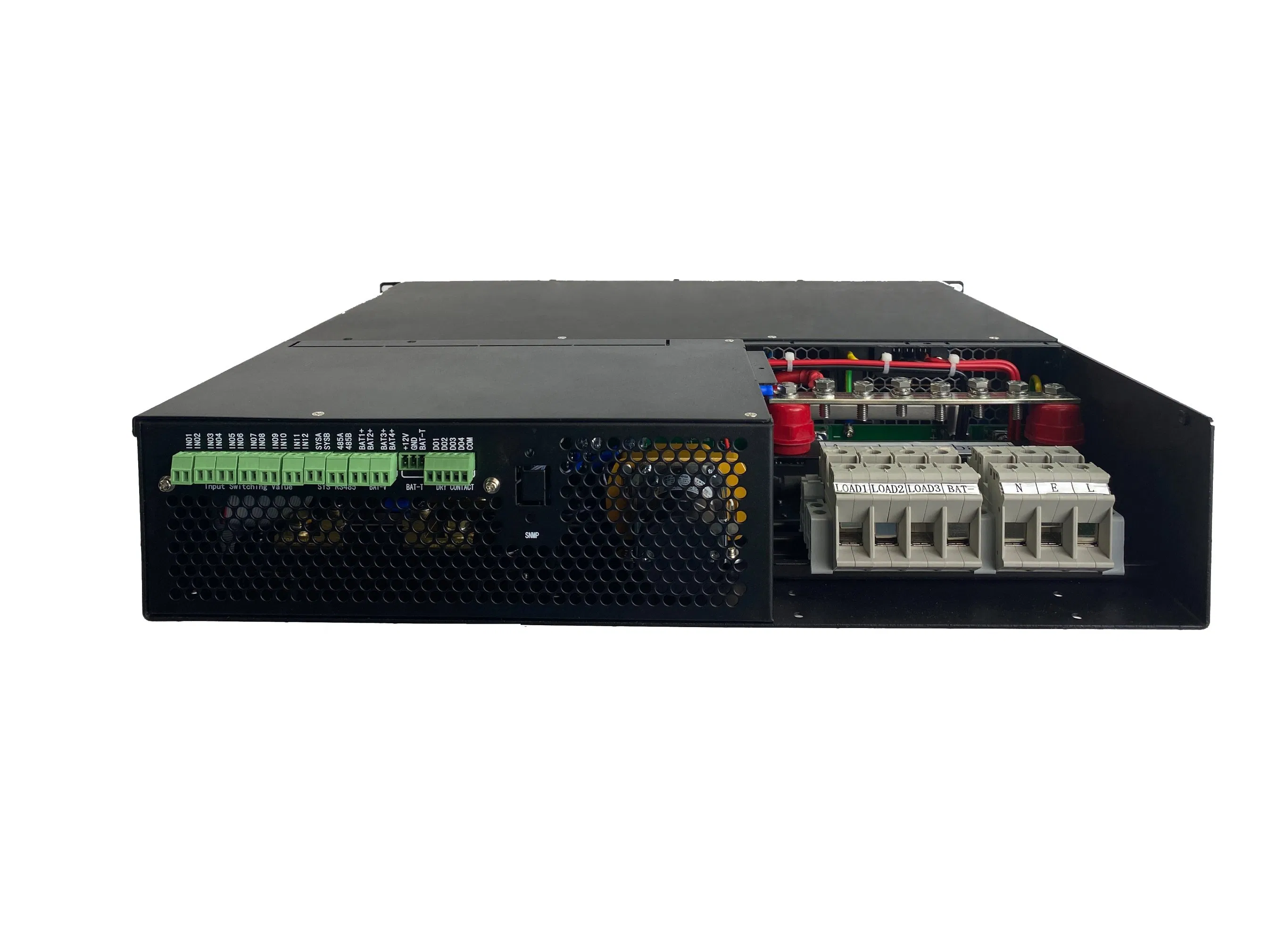

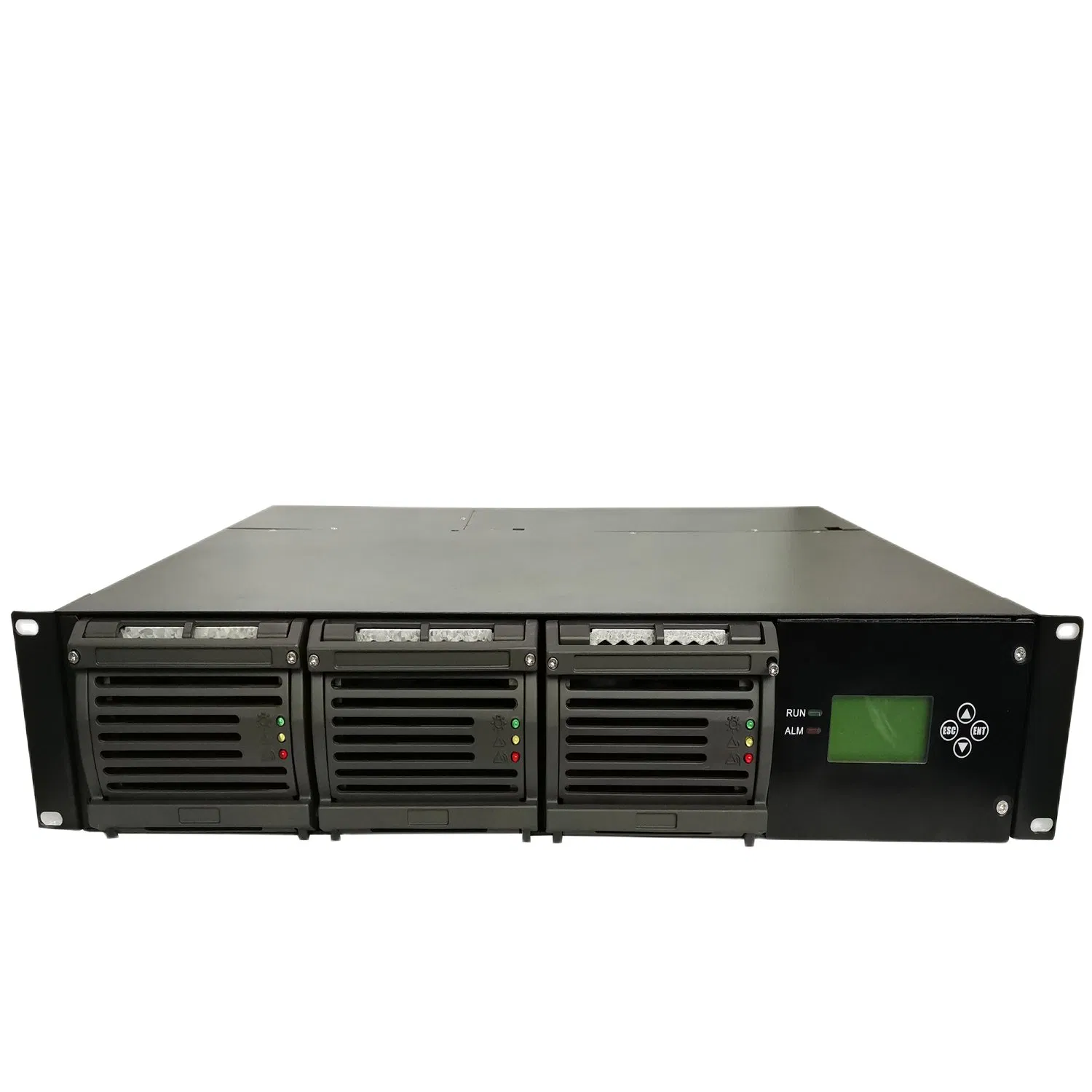

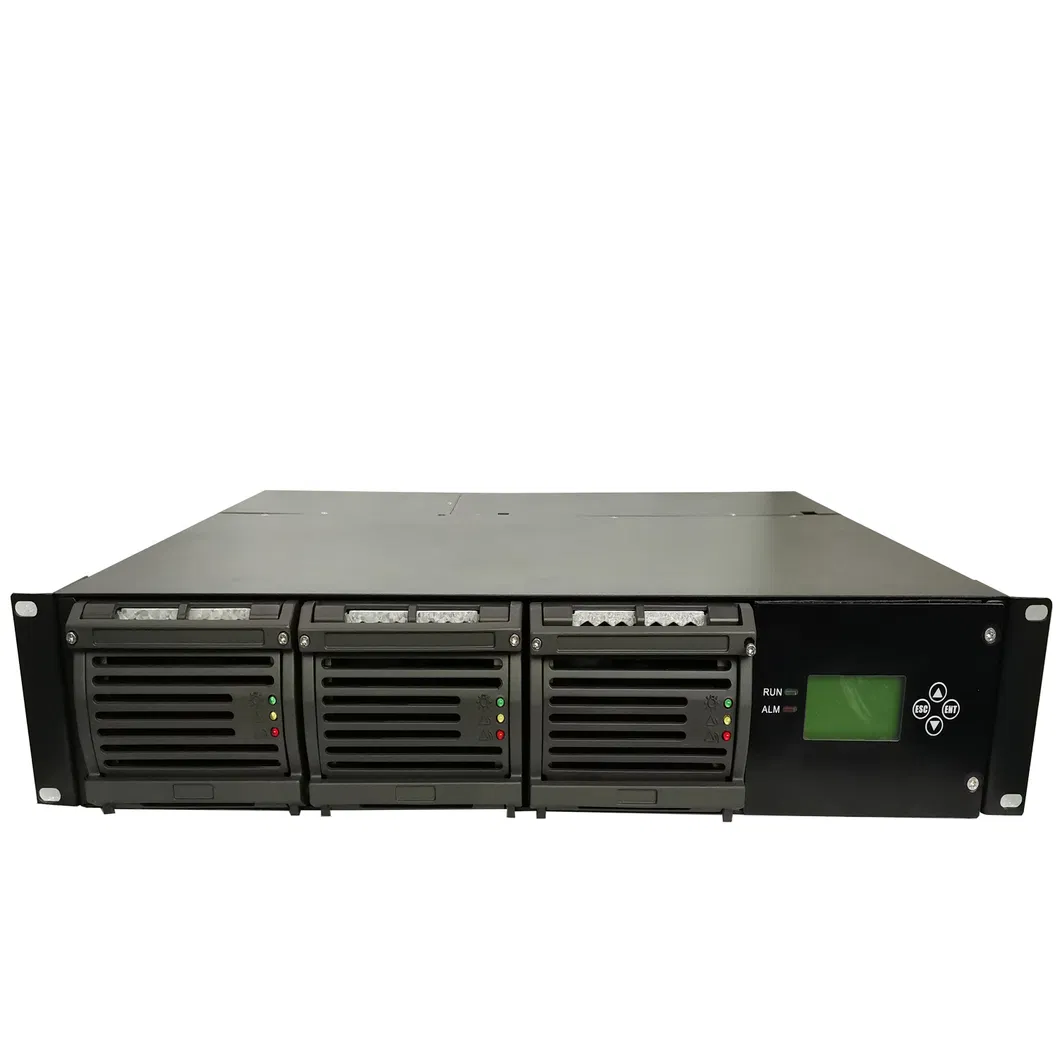

220VAC to 110VDC Industrial Rectifier Battery Charger

Basic Specifications

Output Power:1000W

Input Voltage:110-220V

Connection Mode:Series Switching

Starting Mode:Self-excited

Modulation:PWM / Frequency Modulation

Certification:CE

Input:3phase 380V / Single Phase 220V

Output:24V/48V/110V/220V

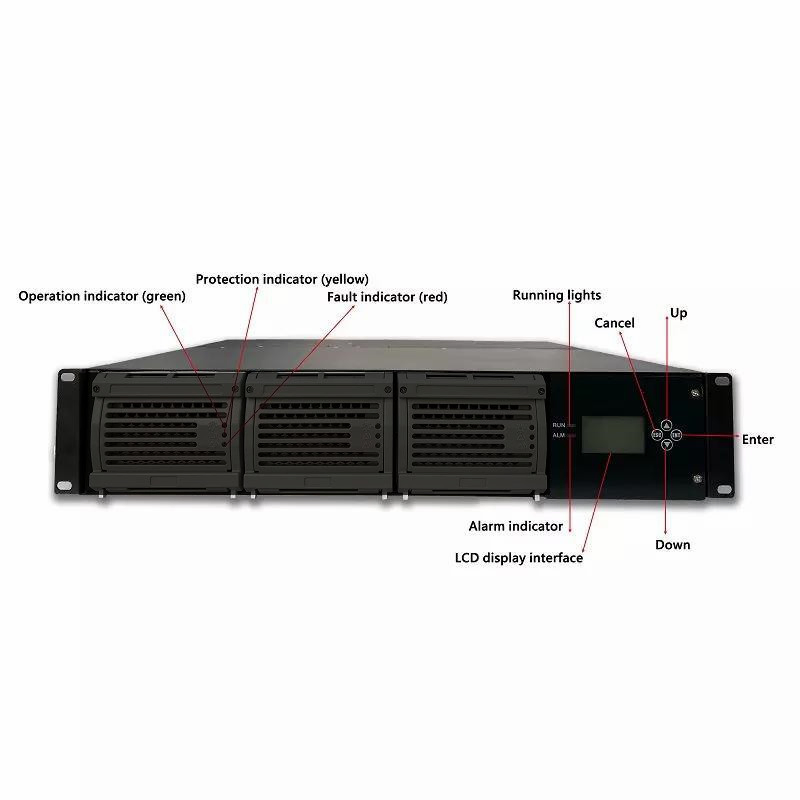

LCD Screen:Yes

Communication:485 / 232 / SNMP

Product Description

Rectifiers bring advanced technology to the DC power industry. Innovative engineering combines efficiency and reliability to meet power requirements for various system applications. This rectifier is specifically designed to recharge all types of stationary batteries for large utility, petrochemical, and industrial uses.

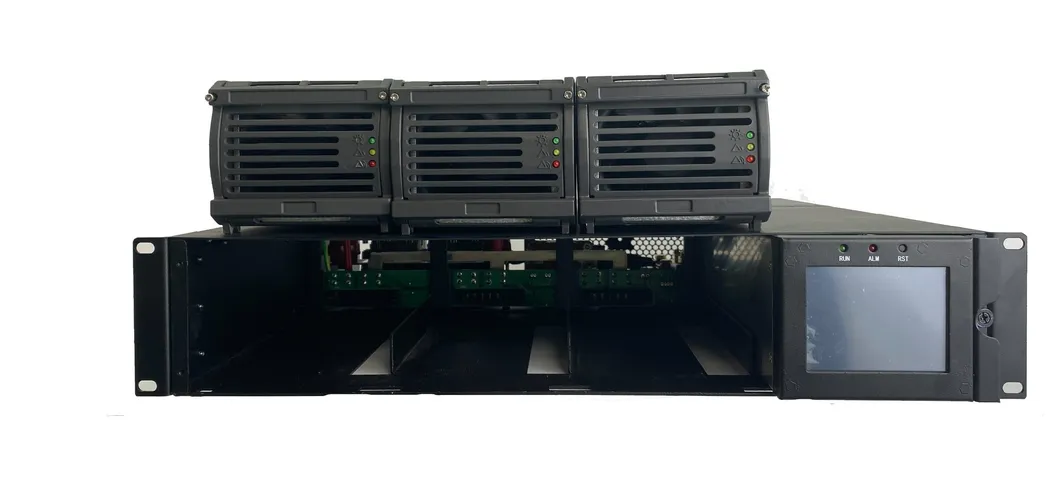

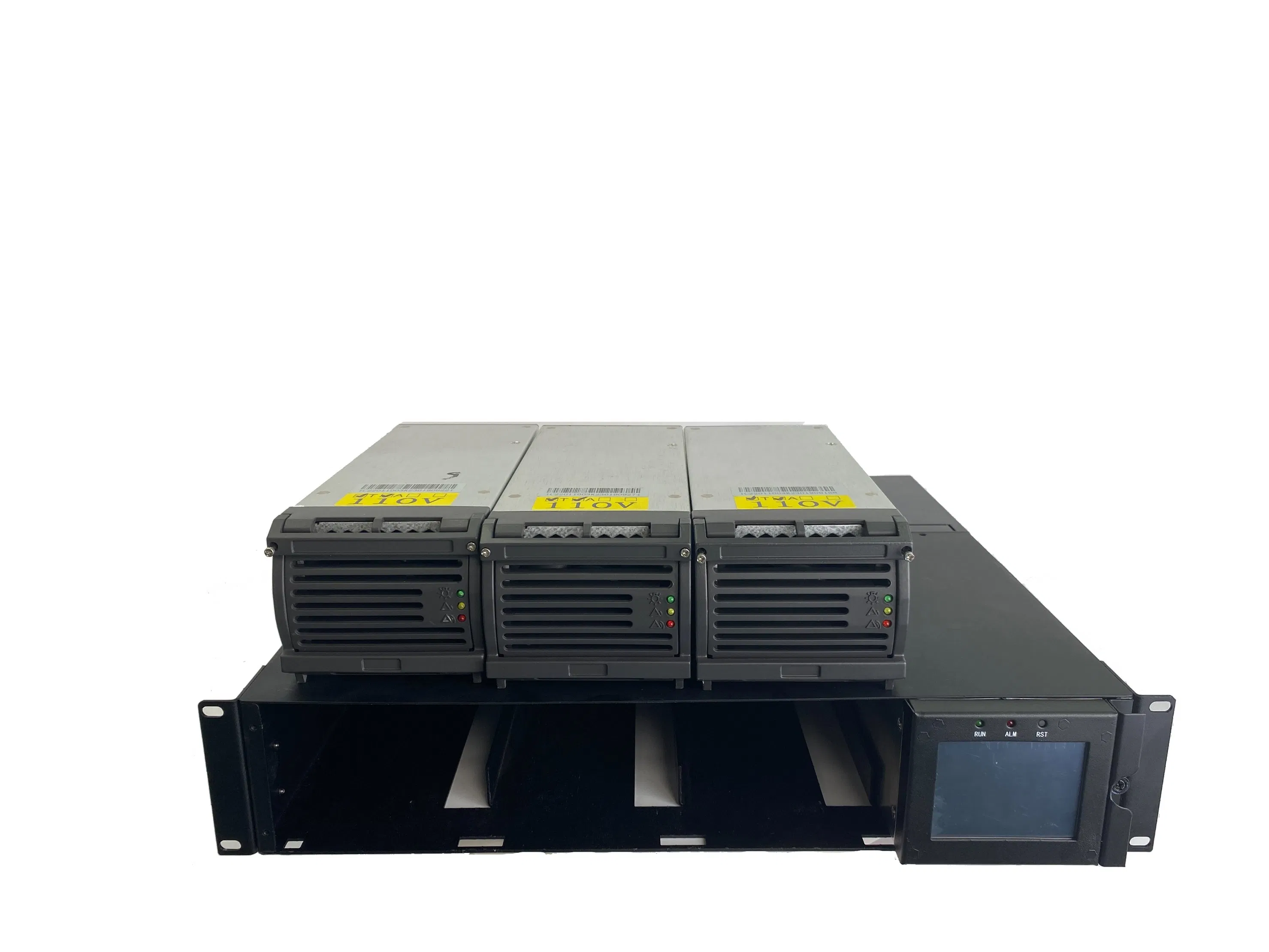

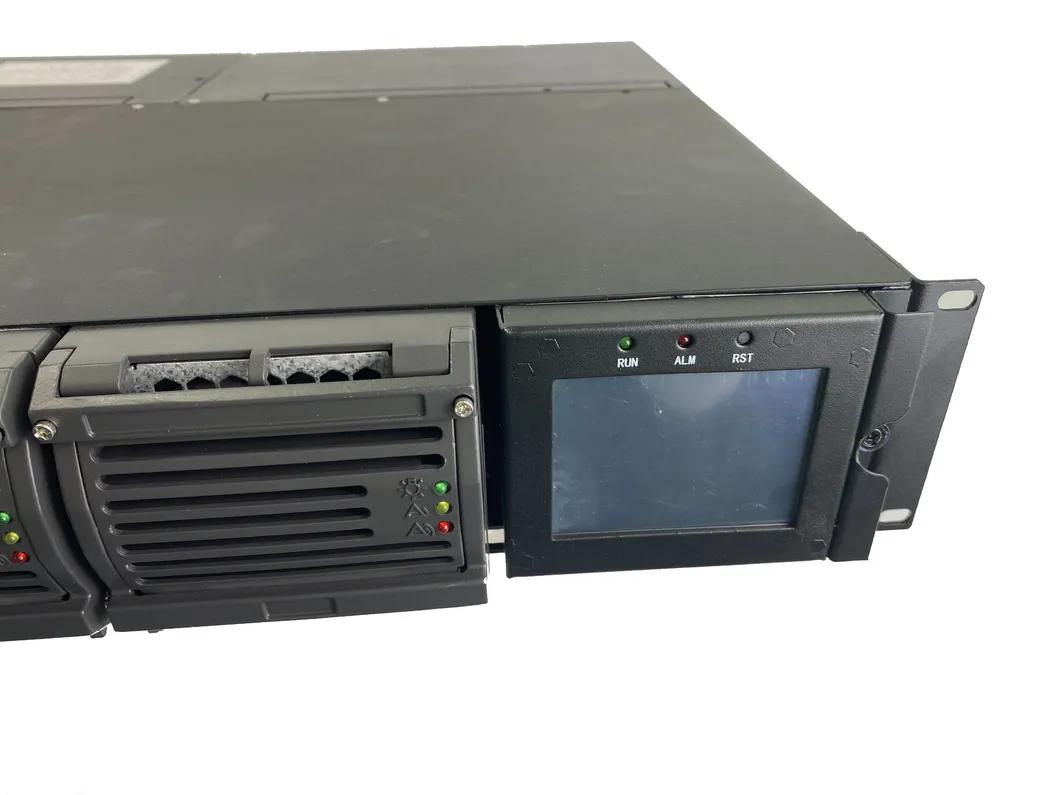

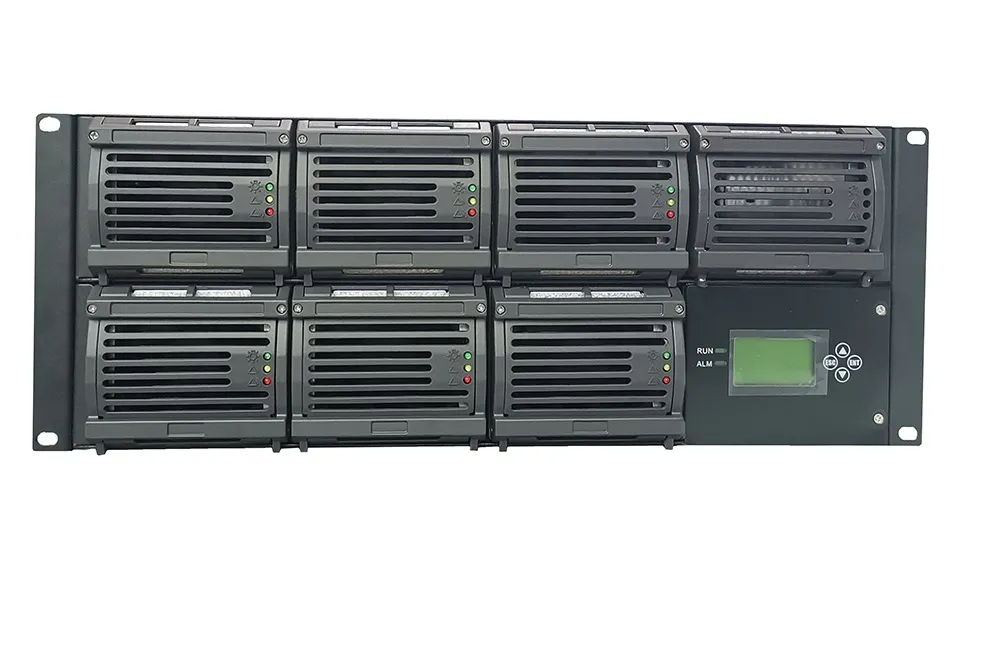

The fan-cooled rectifier module has extremely high density, providing maximum power in minimal space. A compact shelf accommodates four rectifiers per 19in 2U shelf and can be paralleled up to 5*2U shelves. Local and remote setup, adjustment, and control are simplified via the System Controller using TCP/IP technology.

Key Features

Switch Mode Power Supply technology.
Hot-swappable and Plug-and-Play design.
N+1 redundancy (20A@110Vdc per module).
Comprehensive AC/DC distribution and protection.
Remote control via RS232, RS485, and SNMP.
High efficiency with low EMI; CE Safety and EMC certified.
Full protection: Over/under voltage, short circuit, and over temperature.

Technical Datasheet

Category	Parameter	11060-1P	110140-3P	110220-3P
Environmental	Operating Temp	-40°C ~ 55°C
Environmental	Humidity	≤ 90%RH
AC Input	Voltage Range	90-280VAC	323-437VAC
AC Input	Frequency	45Hz ~ 65Hz
DC Output	Nominal Voltage	110VDC
	Output Capacity	7.5kW	17.5kW	27.5kW
	Output Current	60A	140A	220A
