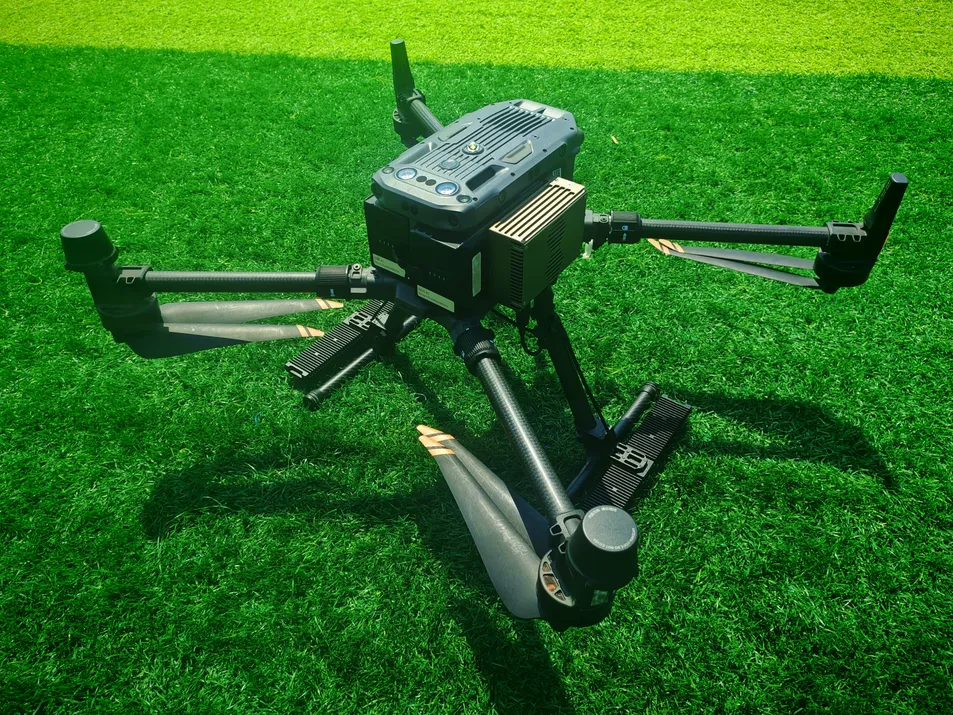

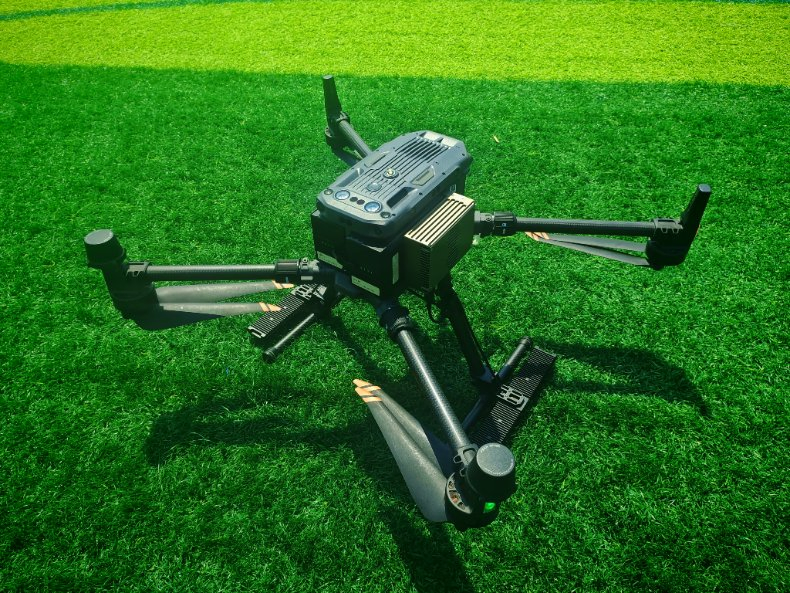

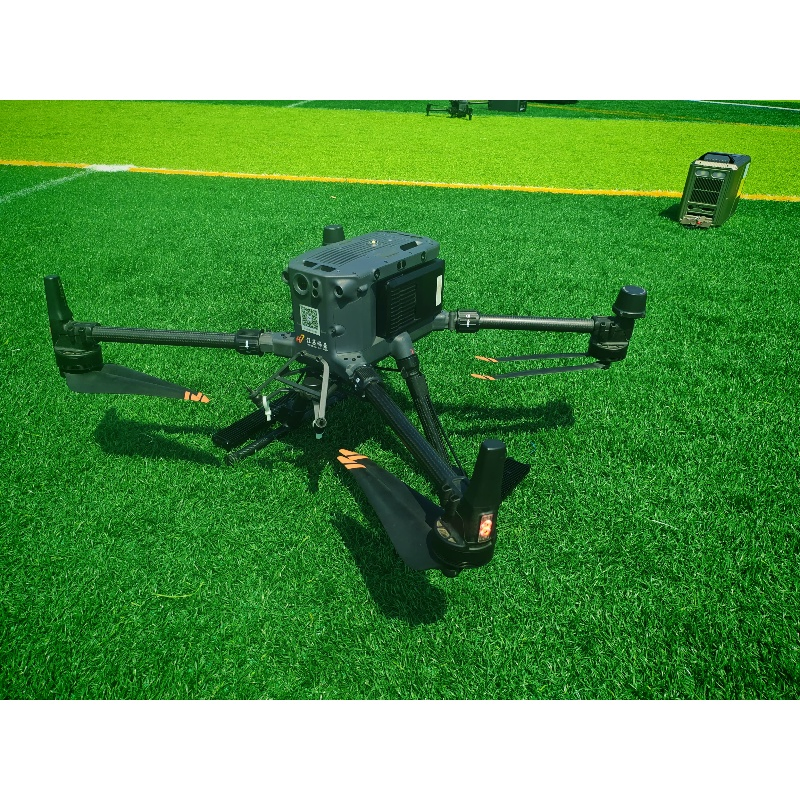

2000W Steady Long-Term Output Air Unit for DJI M350RTK Drone

Your M350RTK Drone needs solid power? This air unit delivers 2000W steady, no breaks—even during long flights. It fuels your gear without fizzling out, fits like a glove, and sets up in minutes. Tough enough for heavy use, it keeps your drone running strong when you need it most.

Basic Specifications

Model NO.TPS110M-M350

Ground Power Output≥3500W

Air Module Output2000W (Rated)

Tether Cable LengthStandard 110m

Air Module Weight765 ± 10g

Input Voltage (Air)580-810VDC

Key Characteristics

✈️

Lightweight & Portable Compact design, easy to carry by one person, supports rapid field deployment for mobile operations.

⚙️

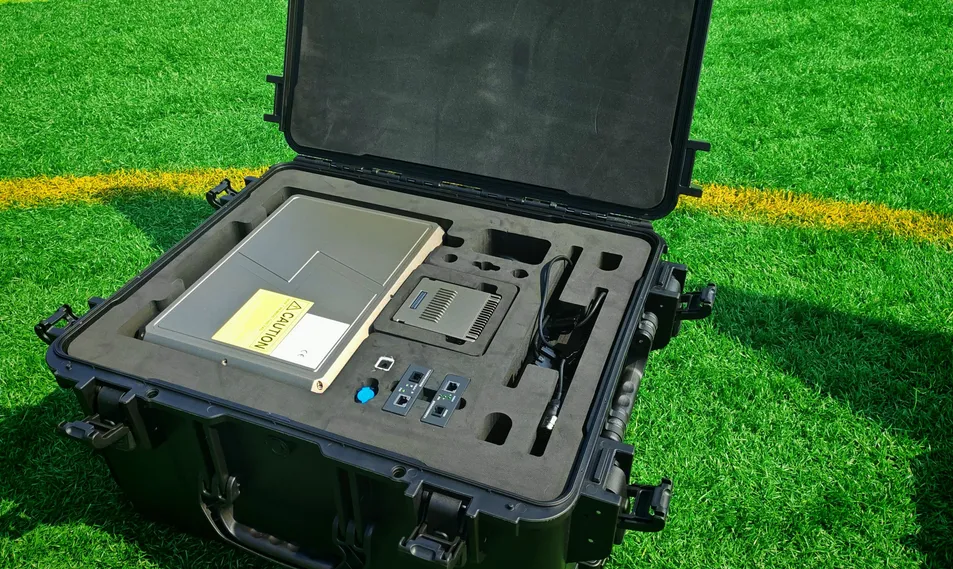

Intelligent Winch System Automated cable management that follows UAV movement synchronously with backup battery protection.

🔋

Smart Battery Management Constant voltage output extends battery lifespan and maintains a fully charged standby state.

📊

4.3-inch Touchscreen Real-time monitoring of power, voltage, current, temperature, and cable length with fault logging.

Detailed Specification

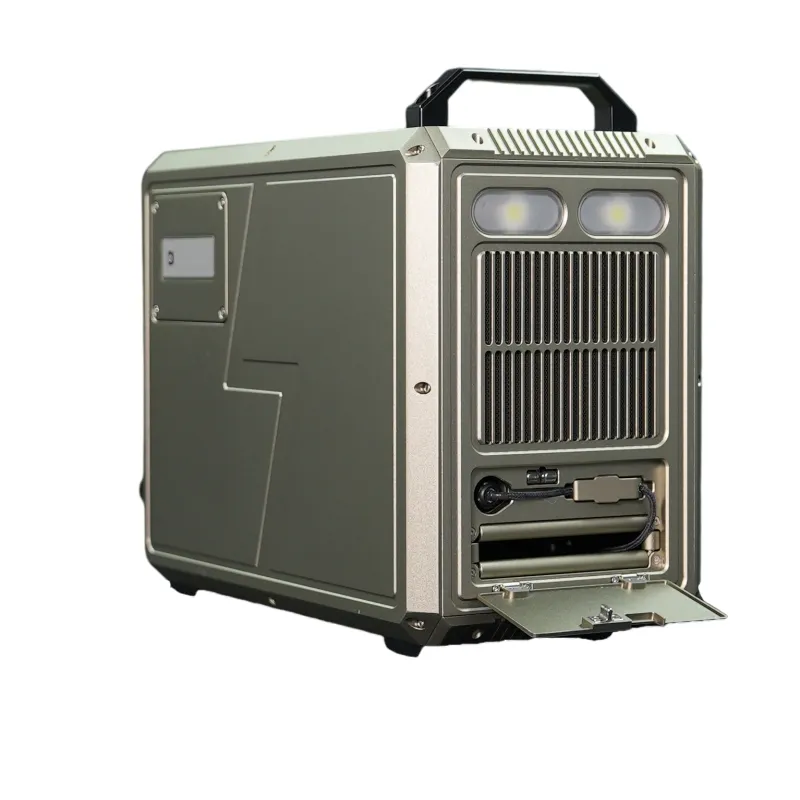

Ground Power Module
Input Voltage	190~240Vac wide range, single-phase 220Vac, 50/60Hz
Output Voltage	700~750Vdc adjustable
Interface	Type-C, RJ45, or Optional Fiber Optic FC port
Size	D360W186H268 ±0.5mm
Tether Cable
Material	Alloy lightweight high-temp resistant, composite fluoroplastic insulation
Outer Diameter	2.5±0.1mm
Weight	12.0±1g/m

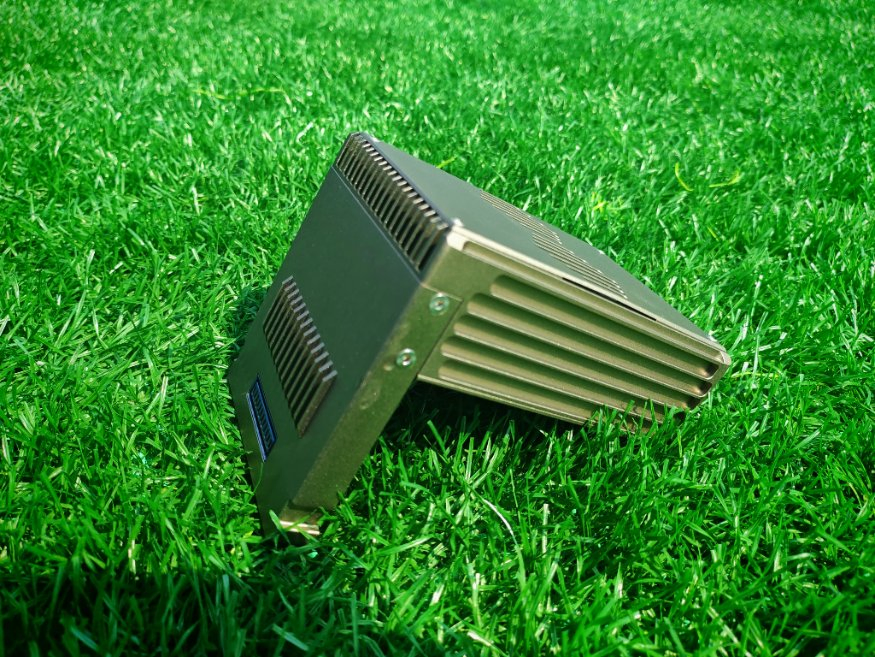

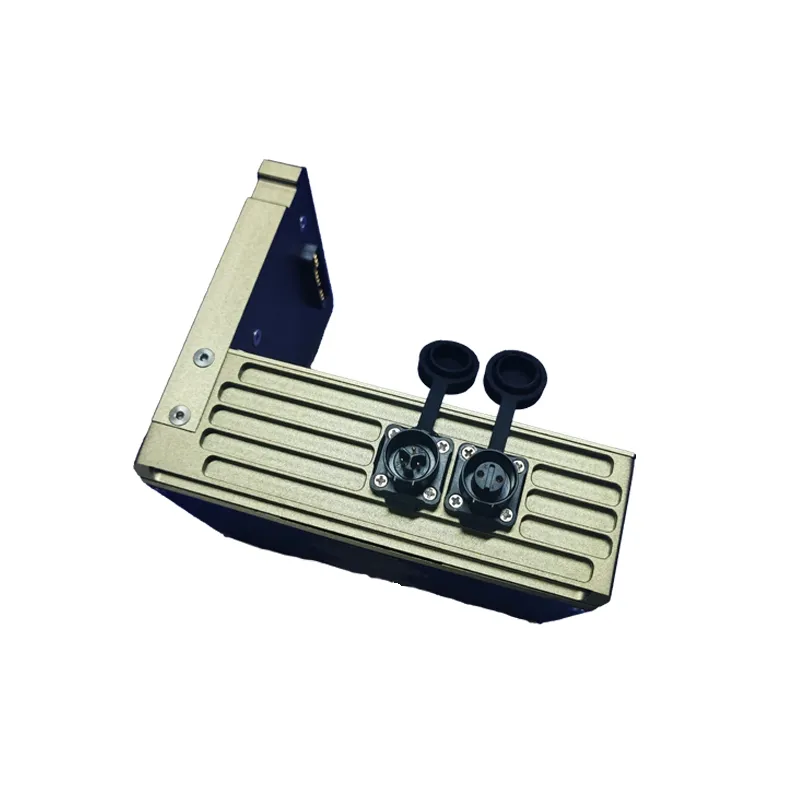

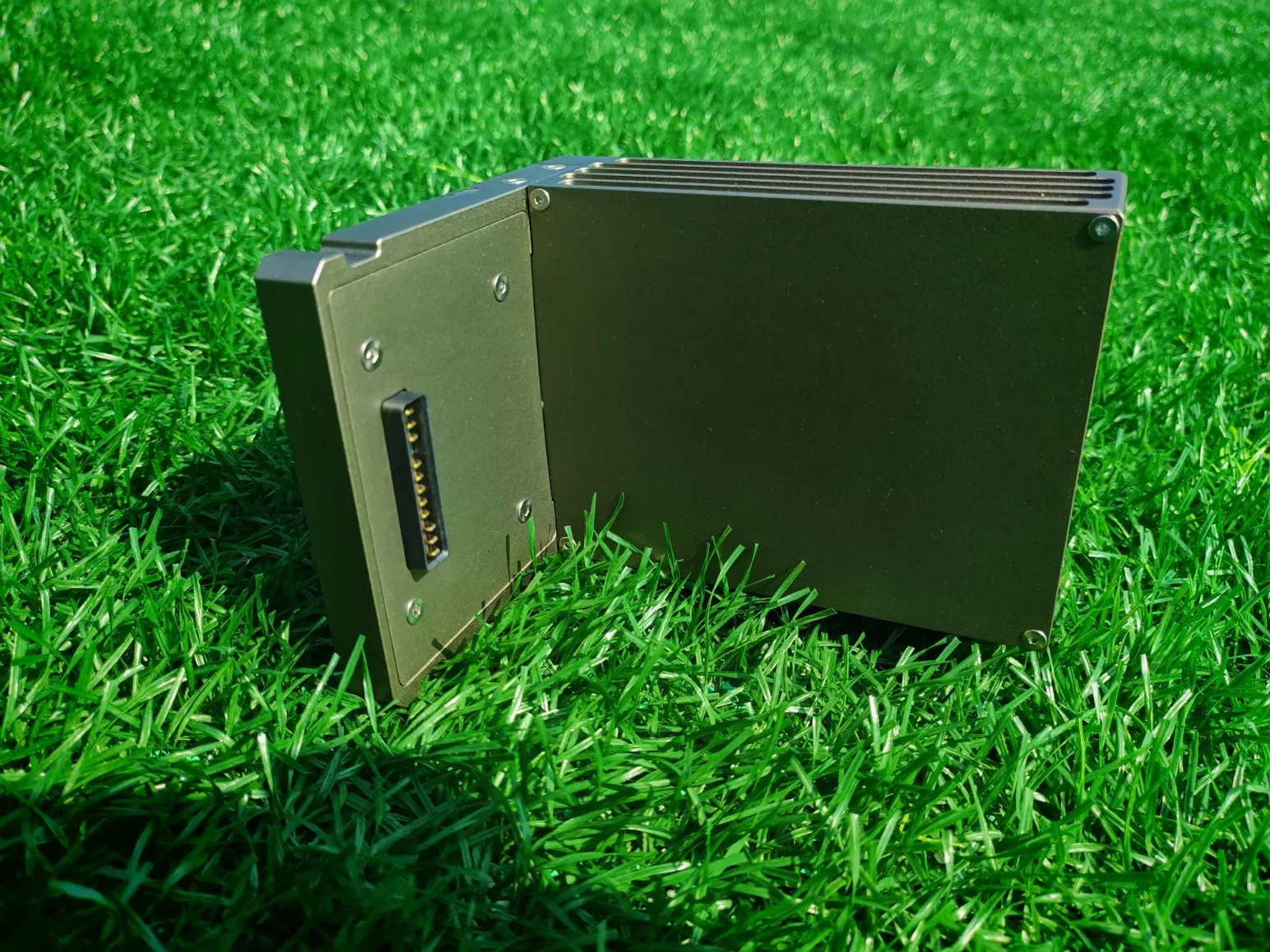

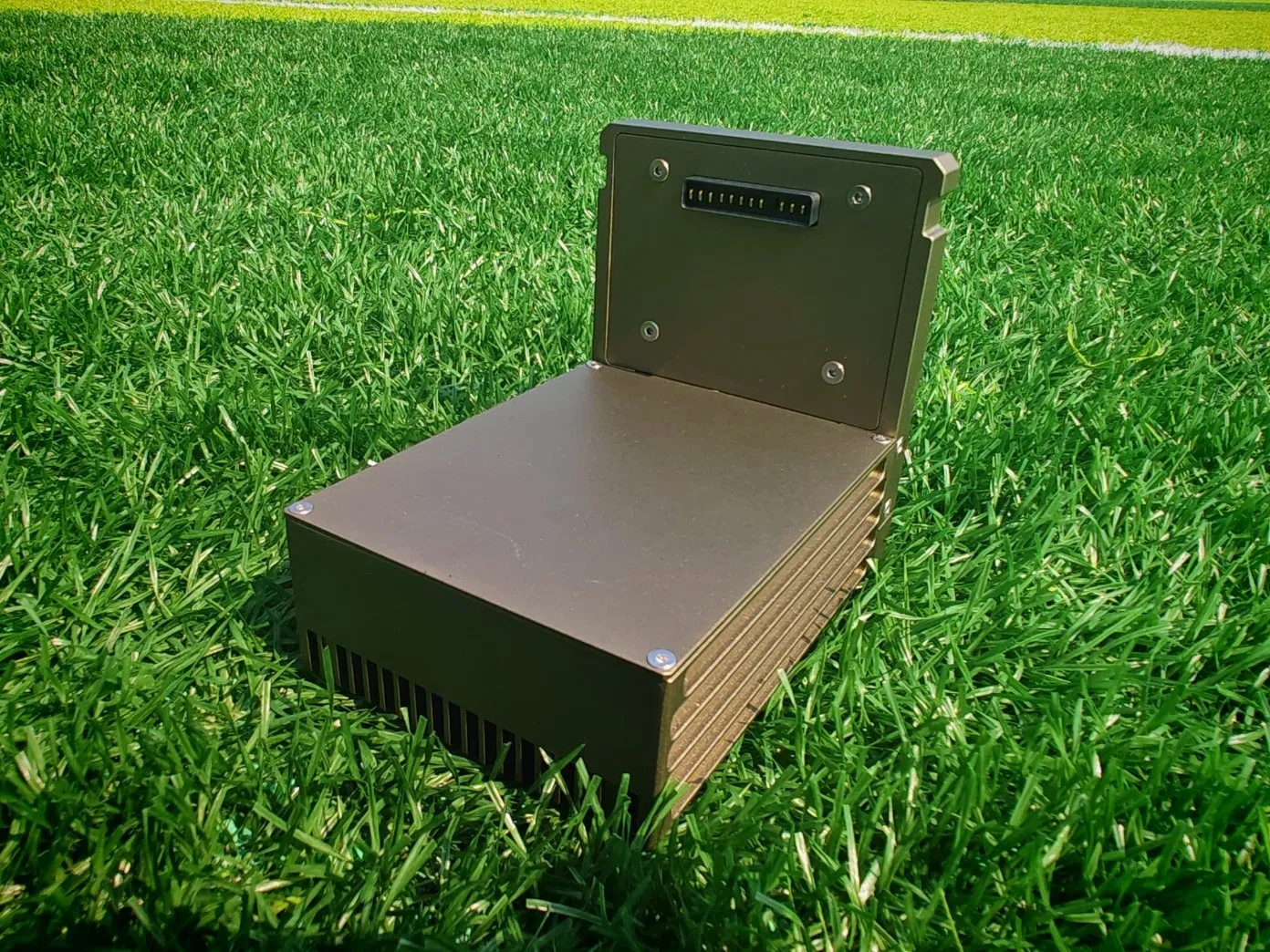

Air Module
Output Voltage	50.5 ± 0.5Vdc, constant voltage
Rated Power	2000W (Long-term)
Protection	Overvoltage, undervoltage, overcurrent, short circuit

Product Configuration

Ground Module

Air Module

System Capability

The "Drone Tethered Power System" is a professional-grade solution for persistent aerial operations. This technology focuses on the R&D and production of high-frequency switching power modules and comprehensive tether power systems. The system is compatible with a wide range of multi-rotor drones with MTOW from 3kg up to 110kg.

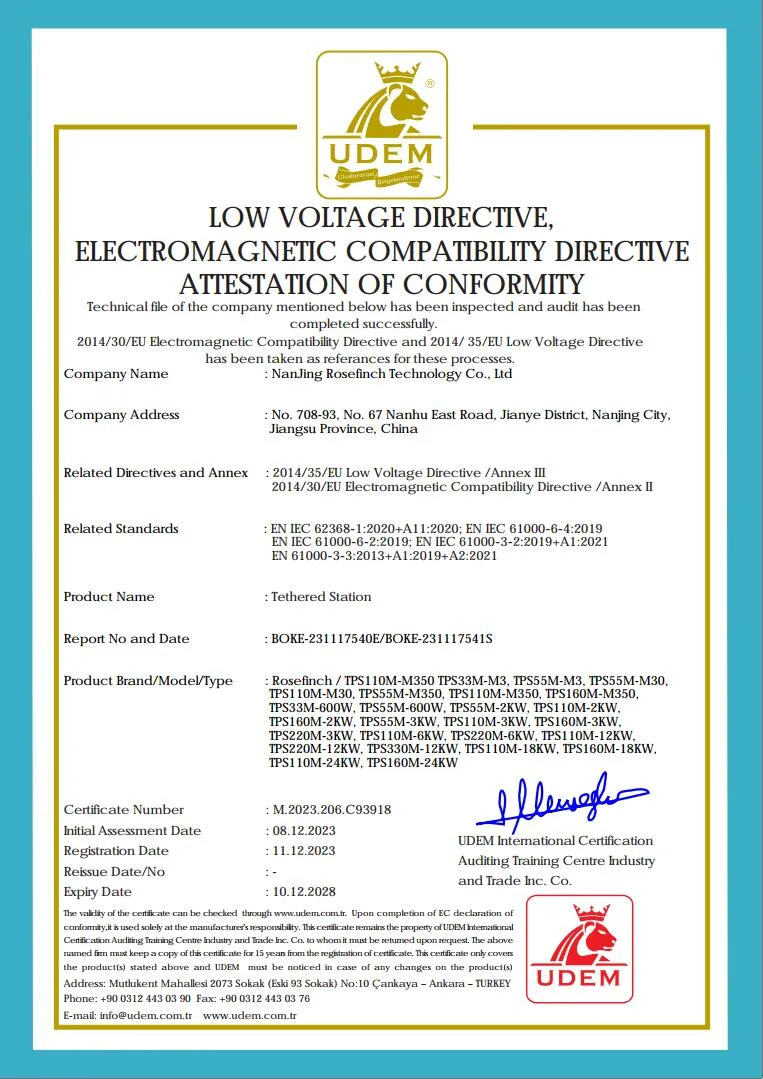

Certifications

Frequently Asked Questions

What is the maximum output power of the Ground Power Module?

The Ground Power Module provides a rated long-time output of ≥3500W, ensuring consistent power delivery for demanding operations.

Is the tether cable length customizable?

The standard equipment includes a 110m cable, but an optional 55m cable is also available depending on your specific requirements.

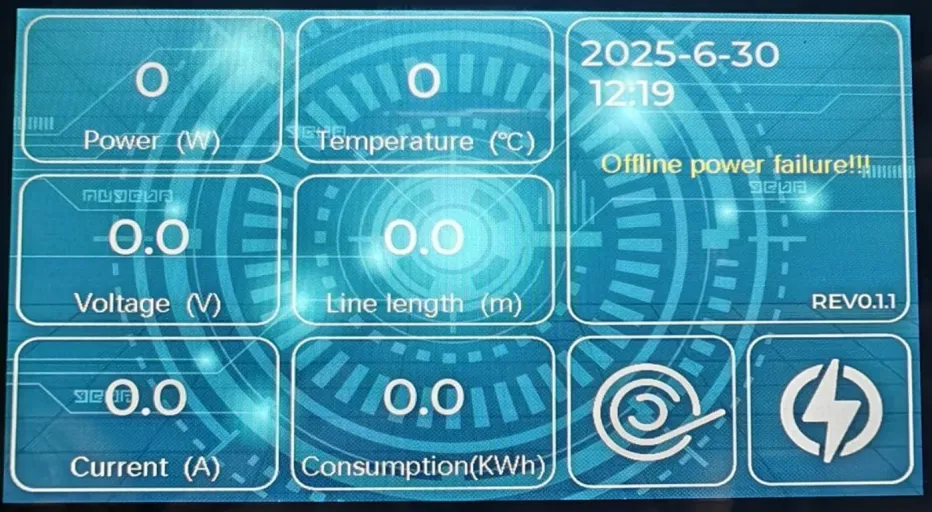

What information is displayed on the real-time monitoring screen?

The 4.3-inch touchscreen displays electrical parameters including power, voltage, current, temperature, cable length, and running time, along with data curve charts and fault logs.

Does the system include automatic cable management?

Yes, it features an Intelligent Winch Automated Control System that synchronously reels the cable in or out based on the UAV's takeoff and landing.

What safety protections are built into the system?

The system includes AC/DC isolation, overvoltage, undervoltage, overcurrent, and short circuit protections, with an ultra-high withstand voltage of ≥ 3000VDC.

What is the total weight of the tethered system?

The ground power module with 110m cable weighs approximately 12.5kg, and the total gross transport weight (including the plastic hard box) is about 23.0kg.
