120kw Multi-Platform Compatible DC Charging Station Car Charger Electric Car Charger for State Grid and Third-Party Networks

📊 Basic Information

Model NO.

MS10

Location

Public Use

Charging Interfaces

One Pile with Multiple Charges

Start Mode

Credit Card, Mobile Remote, RFID

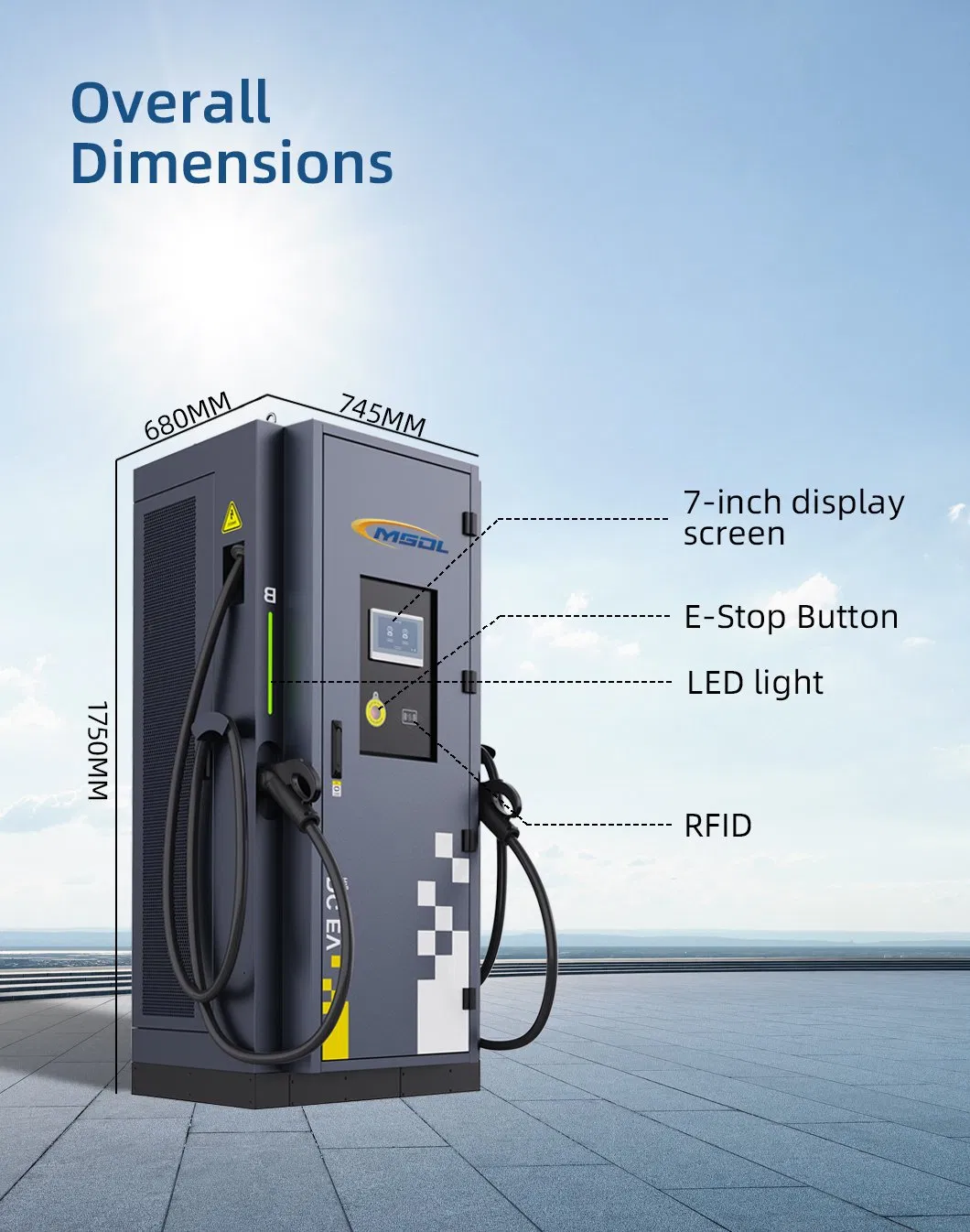

Dimensions

745mm X 630mm X 1750mm

Weight

360kg

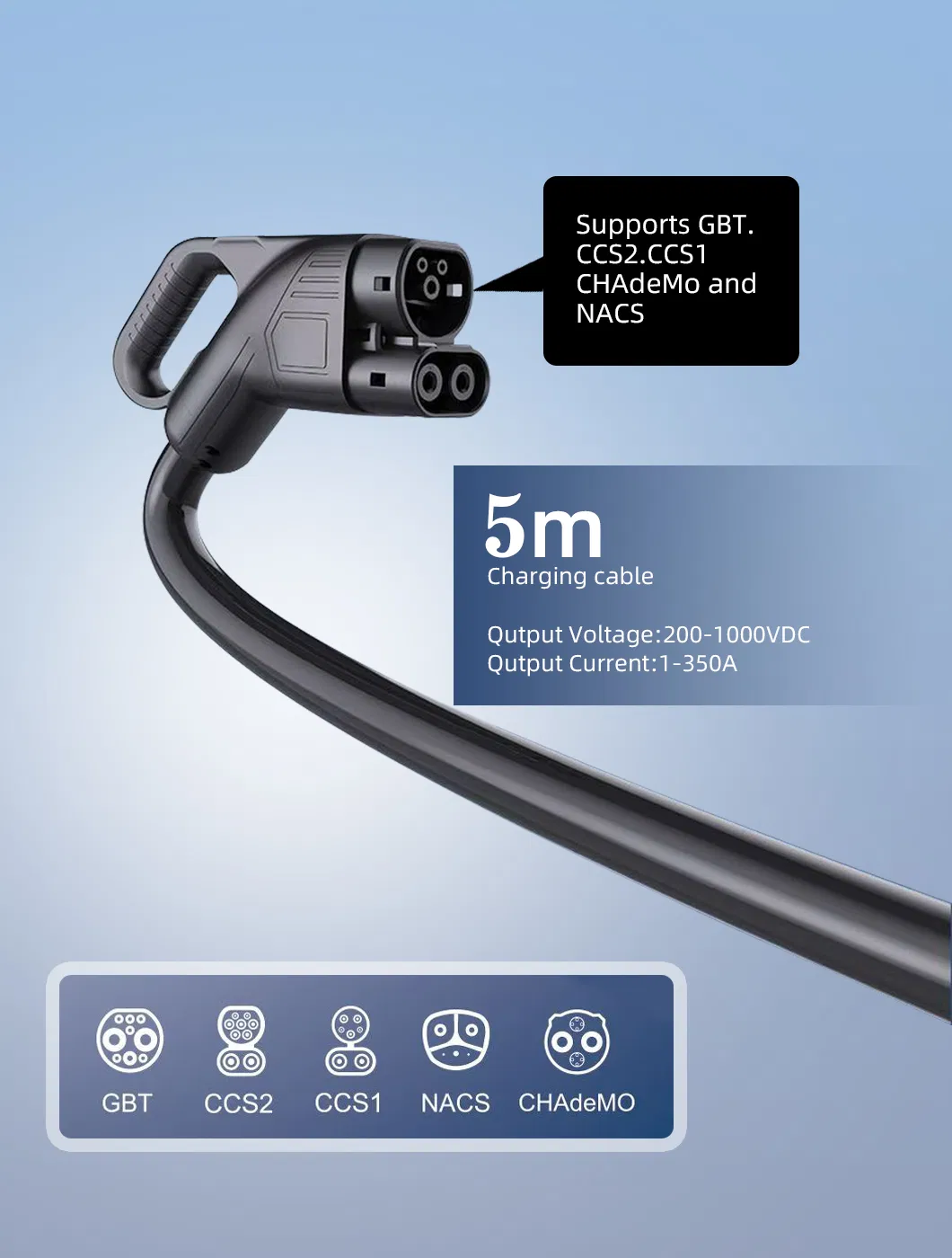

Cable Length

5m

Connectors

Gbt, CCS2, CCS1, Chademo, Nacs

Input Voltage

400VAC / 480VAC

Output Voltage

200 - 1000VDC

Rated Power

≤240kw

Protection

IP54 Ik10

💡 Product Description

60-240kW Series DC EV Charger
This series focuses on "compact capacity + powerful performance": featuring an elegant yet rugged cabinet design. It supports power expansion up to 240kW, balancing spatial adaptability and high-power demands. Equipped with dual charging guns, it enables simultaneous fast charging for two vehicles, meeting energy replenishment needs for various models. It is widely suitable for public charging stations, commercial parks, and logistics hubs.

Performance highlights include an output voltage range of 200-1000VDC and a peak efficiency of 96%. With air-cooled heat dissipation, it operates stably from -30°C to 75°C. Features include a 7-inch touch screen, built-in RFID reader, and compatibility with OCPP protocols.

⚙️ Technical Specifications

Category	Feature	Details
Structure	Dimensions	900mm x 700mm x 1900mm
	Weight	440kg
	Connectors	GBT, CCS2, CCS1, CHAdeMO, NACS
Electrical	Input Frequency	50/60Hz
	Output Current	1-600A
	Efficiency	Peak efficiency ≥96%
	Power Factor	>0.99
Environment	Operating Temp	-30°C to 75°C
Environment	Protection	IP54 \|\| IK10
